Tesla Model S and X Motor HV Connection Cover Orange 1003783-00-B
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

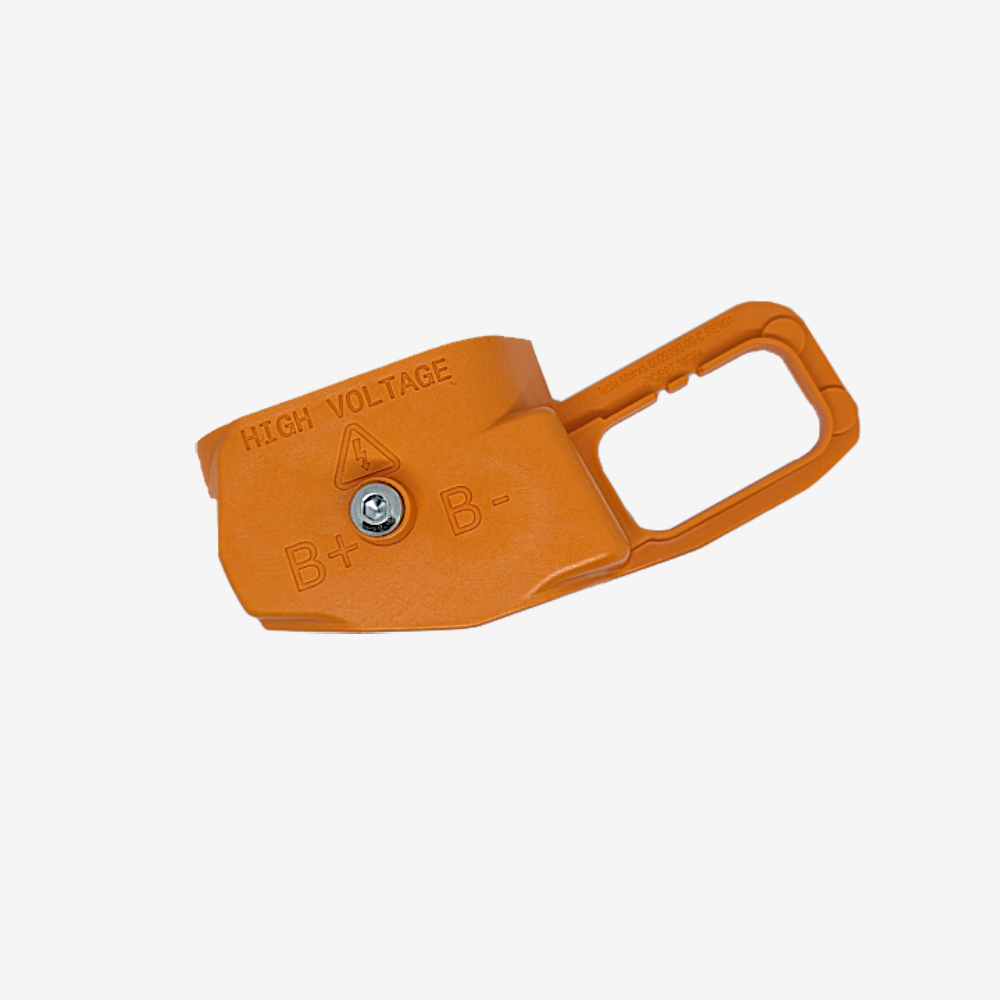

The orange high voltage connection cover for the rear motor on a Tesla Model S and X, part 1003783-00-B.
A drive unit's high voltage terminals need covering, and this is the part that does it. The cover keeps the three phase connections enclosed, keeps dirt and moisture off them, and stops anything conductive reaching them.
Orange is the convention, so the cover also marks the area as high voltage for anyone who opens the car or works around the drive unit later. On a conversion that will be serviced by someone who did not build it, that is not decoration.
It is commonly missing on a salvaged unit. Covers get removed to disconnect the motor and then do not travel with it.
Key specifications
| Part number | 1003783-00-B |
|---|---|
| Type | High voltage connection cover |
| Fits | Tesla Model S and X rear motor |
| Colour | Orange |
| Weight | 0.5 kg |
Features
- Encloses the motor's high voltage connections
- Orange, marking the area as high voltage
- Genuine part number, so it fits as it should
- Frequently missing from a salvaged drive unit
Compatibility
For the Tesla Model S and X rear motor, the large drive unit.
Fit it. A conversion with exposed motor phase terminals will not pass an inspection and should not be driven, regardless of how well routed the cables are.
In the box
- 1 x HV connection cover
Downloads
No document is published for this cover. For dimensions or fixings, contact us.
