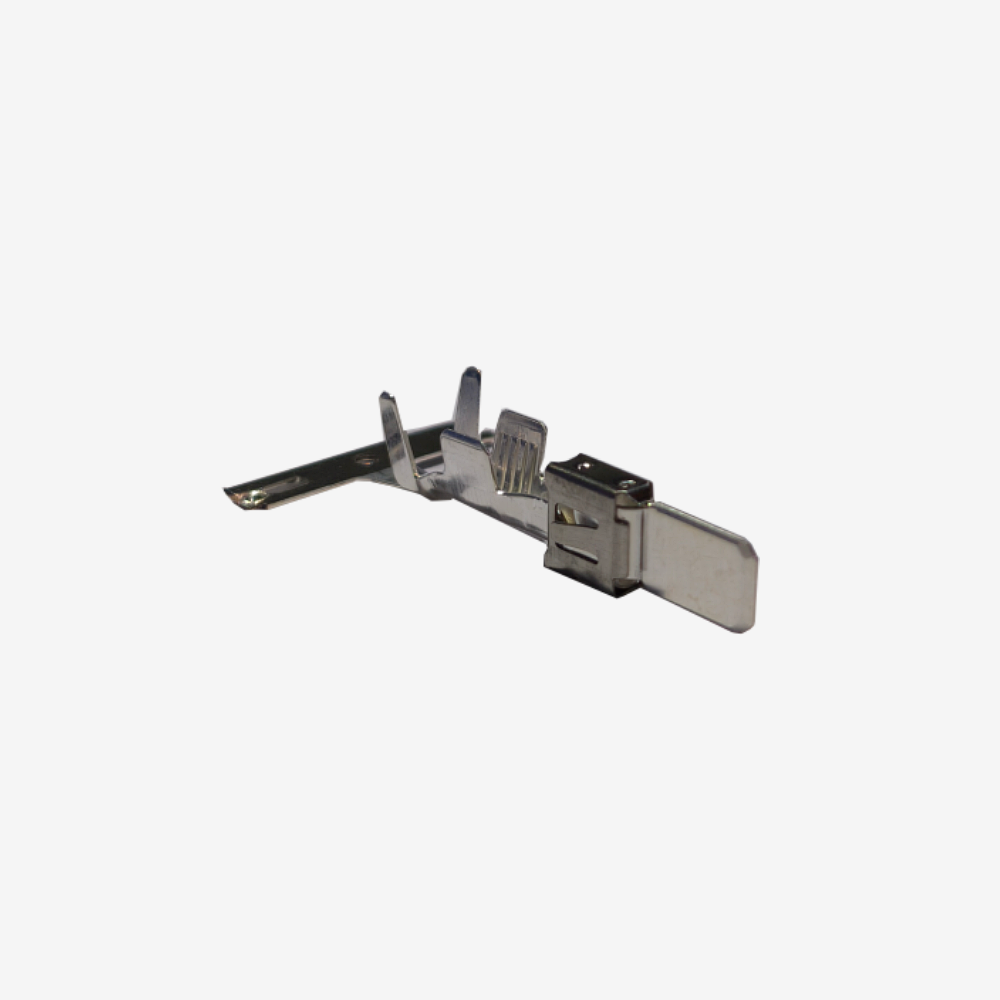

4-6mm Jonhon Contact Male Pins (For Female Connectors)
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
Spare male contact pins for 4 to 6 mm² cable, for use in Jonhon female high voltage connector housings. New and unused, priced per pin.
Terminals are the part of a connector that gets used up. A crimp made slightly wrong, a cable cut short, a harness reworked, or a contact damaged by a mis-mating all end the same way: the housing is fine and the terminal is not. Being able to buy the contact on its own means remaking one joint instead of replacing a connector.
They are also what you need if you are building a harness to length. Connectors supplied with terminals give you exactly as many as the connector has ways, and no spares for the crimp that does not come out right.
Male contacts go into female housings. That reads backwards until you think about it: the housing gender describes the connector as a whole, and the contacts inside a female housing are the pins that enter the other half's sockets. These are those contacts. The female contact, for male housings, is the opposite part.
Key specifications
| Manufacturer part | 21E8-556-1866-A1 |
|---|---|
| Type | Male contact pin |
| Fits | Jonhon female high voltage connector housings |
| Conductor size | 4 mm² to 6 mm² |
| Condition | New, unused |
| Sold as | Individually, price per pin |
| Weight | 0.01 kg |
Features
- Lets you remake one joint instead of replacing a whole connector
- Spares for a harness build, so a poor crimp is not a problem
- Correct contact for 4 to 6 mm² conductors
- Bought individually, so you order what the job needs
Compatibility
For Jonhon female high voltage connector housings taking 4 to 6 mm² cable.
The matching female contact, for male housings, is the other part number in this pair.
Crimp them with the correct die. A high voltage contact carries current through the crimp interface, and a joint that is merely mechanical will heat inside a sealed connector where you cannot see it. If you are not sure which die your crimper needs, ask us.
In the box
- 1 x male contact pin
Downloads
No document is published for this pin. For dimensions or crimp data, contact us.
