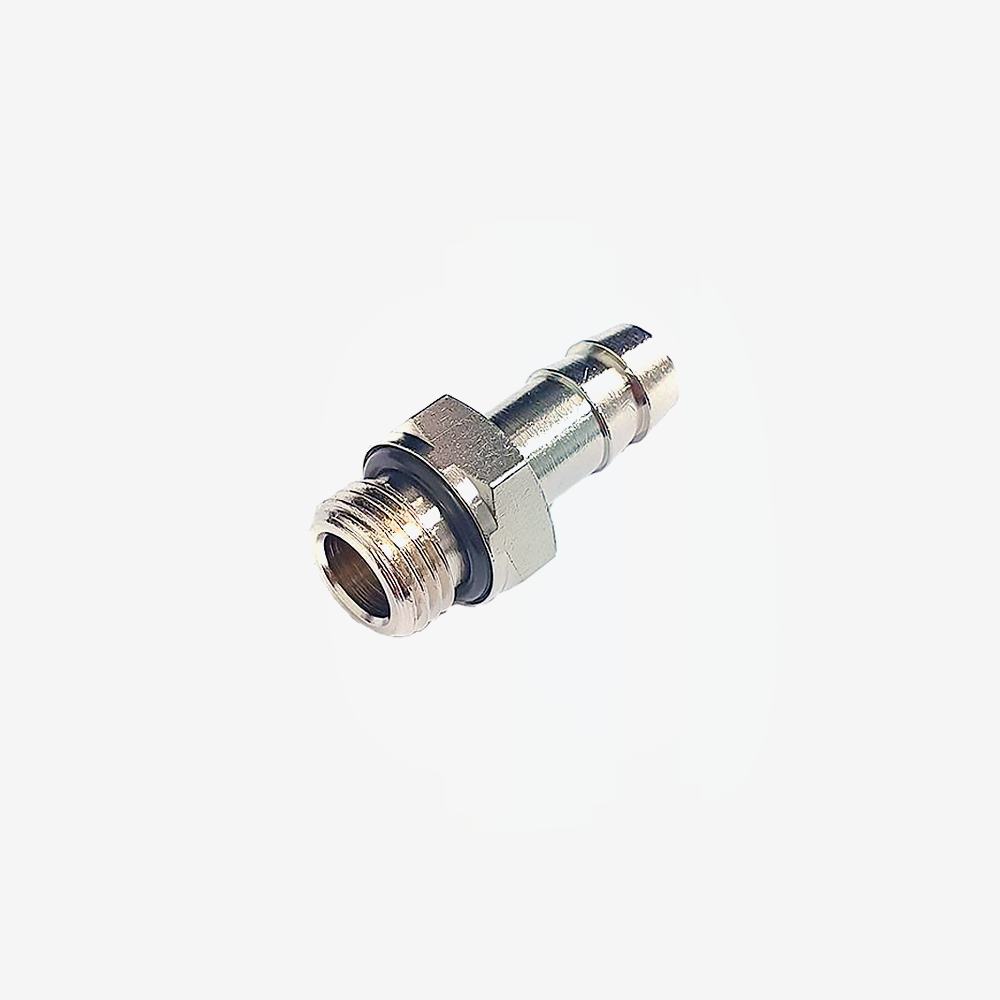

Straight Brass Hose Connector 1/4 in BSPP Male 10mm
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
A straight brass hose connector, 1/4 inch BSPP male thread to a 10 mm barbed tail.
Adapting a drive unit or a coolant circuit to plumbing you can actually buy means converting its ports to a standard thread and a standard hose size. This fitting does that at the 10 mm end.
Brass rather than aluminium for a fluid fitting. It machines a clean thread, it does not gall against a steel or aluminium port, and it tolerates the heat of a coolant or oil circuit without losing torque in the joint.
BSPP is parallel, not tapered. It seals on a washer or O ring at the face rather than on the thread, so it needs the correct sealing washer and should not be wound in with PTFE tape as though it were a tapered thread. Getting that the wrong way round is the usual cause of a weeping fitting.
Key specifications
| Part | BARB1/4-10 |
|---|---|
| Type | Straight hose barb adapter |
| Thread | 1/4 inch BSPP male, parallel |
| Barb size | 10 mm |
| Material | Brass |
| Weight | 0.02 kg |
Features
- Converts a 1/4 inch BSPP port to 10 mm hose
- Brass, which will not gall in an aluminium or steel port
- Straight body, for a run that carries on in line
- Barbed tail, for a clamped hose joint that holds under heat cycling
Compatibility
For 1/4 inch BSPP ports taking 10 mm hose.
The 8 mm version is the smaller size in the same thread.
Fit the correct sealing washer. BSPP parallel seals at the face, and without a washer it will weep no matter how tight it is.
Use a proper hose clamp on the barb, and match the hose to the fluid: coolant hose for coolant, oil rated hose for oil.
In the box
- 1 x brass barb fitting, 1/4 inch BSPP to 10 mm
Downloads
No document is published for this fitting. For the exact dimensions, contact us.
