This is the male half of the 2A pair, and the dearest ePower-Lite part we list. At 34.41 against 10.99 for the female, it carries most of the cost of the pair. Worth knowing before pricing a harness with several crossings.

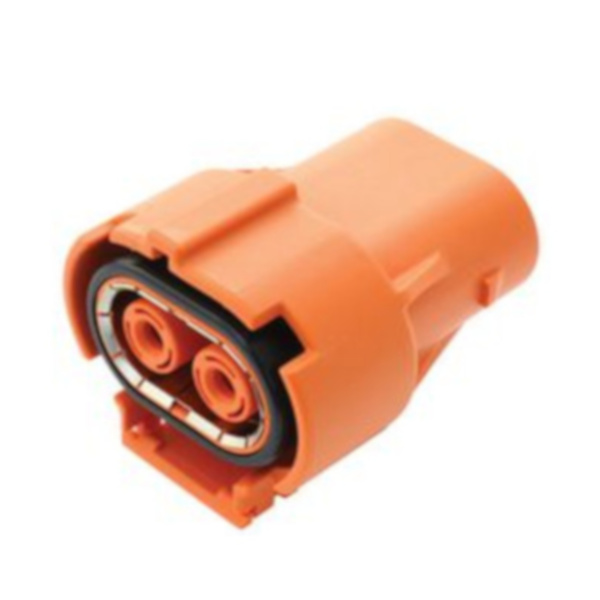

An Amphenol ePower-Lite two pin high voltage connector, male half, part C10-738026-2AS3.
ePower-Lite is Amphenol's compact high voltage range, built for the auxiliary and mid current connections in an electrified vehicle rather than the main traction run: compressors, heaters, DC to DC feeds and charger circuits. It is a production automotive family, which matters if the vehicle has to satisfy an inspector rather than just work.
Two pins means one circuit, positive and negative through a single sealed body, with the touch proof contact protection expected of a high voltage connector.
Note the variant code. We list ePower-Lite connectors in more than one variant, and the characters before the P or S in the part number identify which. A 2AS3 half mates with a 2AS3 half; it will not pair with a differently coded one even though the connectors look alike and have the same pin count. Match the full part number, not just the gender.
Confirm the ratings before you design it in. We have no datasheet published for this connector and Amphenol publish several ePower-Lite variants that differ in current rating, contact size and cable range. Ask us and we will confirm those, and whether terminals are included, rather than have you work from a part number alone.
Key specifications
| Manufacturer part | Amphenol C10-738026-2AS3 |
|---|---|
| Family | ePower-Lite |
| Variant | 2AS3 |
| Gender | male |
| Pins | 2 |
| Weight | 0.2 kg |
Features
- Amphenol ePower-Lite, a production automotive high voltage family
- Two pin, for a single high voltage circuit through one sealed body
- Compact, for auxiliary and mid current connections rather than the main pack run
- Touch proof contact protection
Compatibility
Mates with C10-738025-2AP3, the 2AP3 female half. Buy both unless you already have one side.
Match the variant code as well as the gender. We also list the 2Y variant pair, which is a different connector despite looking similar.
For high voltage auxiliary circuits: compressors, cabin and coolant heaters, DC to DC converter feeds and charger runs.
Ask us for the ratings before specifying it. Current rating, contact size and cable range are the three things you need and none are published here.
In the box
- 1 x ePower-Lite 2 pin connector, male half
Downloads
No document is published for this connector. Amphenol publish the ePower-Lite family data and we can point you to the current version for this part.
