CALB 16 Pin BMS Connector & Pins
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

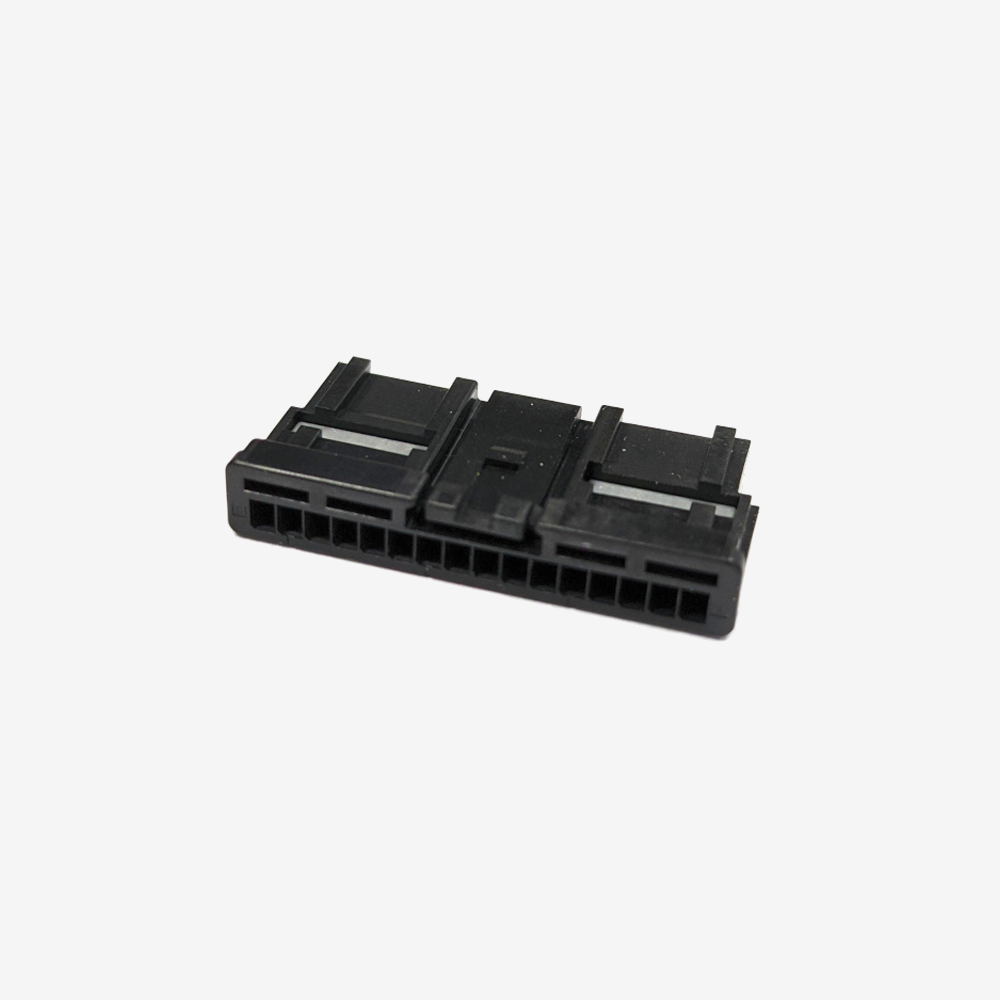

The 16 pin BMS connector that mates with a CALB 2.2 kWh module's sense header, supplied with its pins.
A module brings its cell taps and temperature sensors out on a single keyed header. Until you have the matching plug, that data is inaccessible, and a module without cell level monitoring cannot be used in a pack: the BMS has nothing to balance and nothing to protect against.
Check which CALB module you have, because the connector is not the same across them. This 16 pin connector is for the 2.2 kWh modules, both 4S3P and 6S2P. The 2.55 kWh modules use a 12 pin connector instead. The modules look similar and are named similarly, and the energy figure is what separates them.
Key specifications
| Part | CALBCN16 |
|---|---|
| Type | Module BMS sense connector |
| Ways | 16 |
| Pins | Included |
| Suits | CALB 4S3P and 6S2P modules, 2.2 kWh |
| Does not suit | CALB 2.55 kWh modules, which take a 12 pin connector |
| Weight | 0.01 kg |
Features
- Correct mating half for the CALB 2.2 kWh module sense header
- Pins supplied, so nothing else is needed
- Fits both the 4S3P and 6S2P 2.2 kWh modules
Compatibility
For CALB 4S3P and 6S2P modules at 2.2 kWh.
Not for the 2.55 kWh modules, which need the 12 pin connector. Check the energy rating printed on your own modules rather than going by the configuration, since 4S3P appears on both.
Order one per module and a spare. It is the sort of small part that stops a build.
Crimp the pins properly. A poor crimp on a cell tap shows up as a cell that appears to drift for no reason, which is a frustrating fault to chase.
In the box
- 1 x 16 pin connector
- Pins to suit
Downloads
No document is published for this connector. For the pinout, contact us.
