19 Pin Panel Mount Connector Female
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

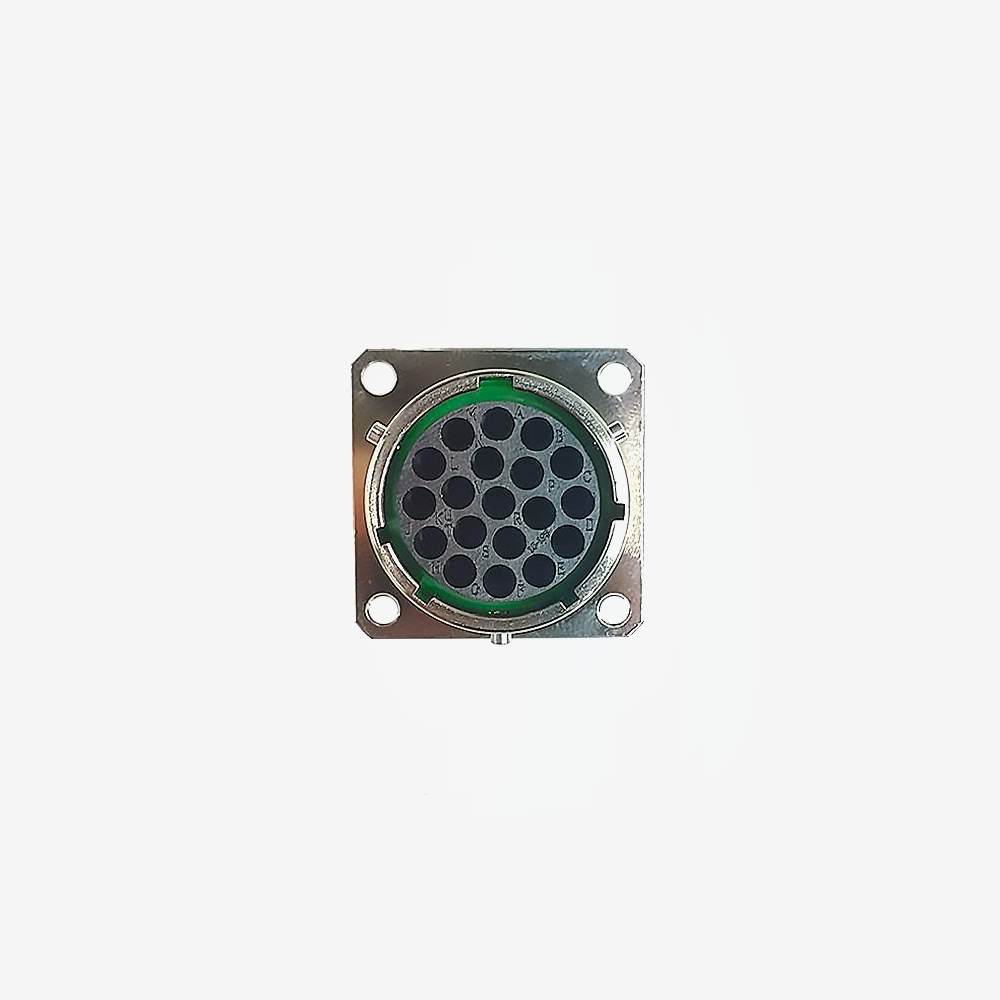

A 19 pin circular connector, female, panel mounting, supplied with all its pins. The fixed half of a multi way connector for signal and low power runs crossing an enclosure wall together.
Nineteen ways through one sealed crossing is the reason to use it. A drive unit, a BMS or a controller typically needs a dozen or more signals to leave its enclosure: sensors, enables, feedback, supplies. Running those as individual connectors means a dozen penetrations, a dozen seals and a dozen things to disconnect for service. One circular connector makes it a single plug that comes apart in one movement.
Circular connectors are also the right shape for a panel: they seat by rotation, they lock positively, and they tolerate vibration far better than a rectangular multi way pressed into a mounting.
All the pins are included.
Key specifications
| Manufacturer part | CT63-1619ZKN-04 |
|---|---|
| Type | Circular connector, female, panel mount |
| Ways | 19 |
| Pins | Included |
| Mates with | CT63-1619TJN-04, the 19 pin male |
| Weight | 0.03 kg |
Features
- Nineteen ways through a single sealed panel crossing
- Circular body, which locks positively and tolerates vibration
- All pins supplied
- Comes apart in one movement for service
Compatibility
Mates with the 19 pin male connector, CT63-1619TJN-04. Buy the pair unless you already have the other half.
For EV retrofits, drive unit and controller harnesses, industrial control panels and custom looms.
This is a signal and low power connector, not a high voltage one. Traction circuits need the high voltage connectors, which carry interlocks and touch proof contacts that this does not.
In the box
- 1 x 19 pin female panel mount connector
- 19 x pins
Downloads
A 3D CAD model in STEP format is in the Documents tab. Use it to check the panel cut out and the fixing centres.
