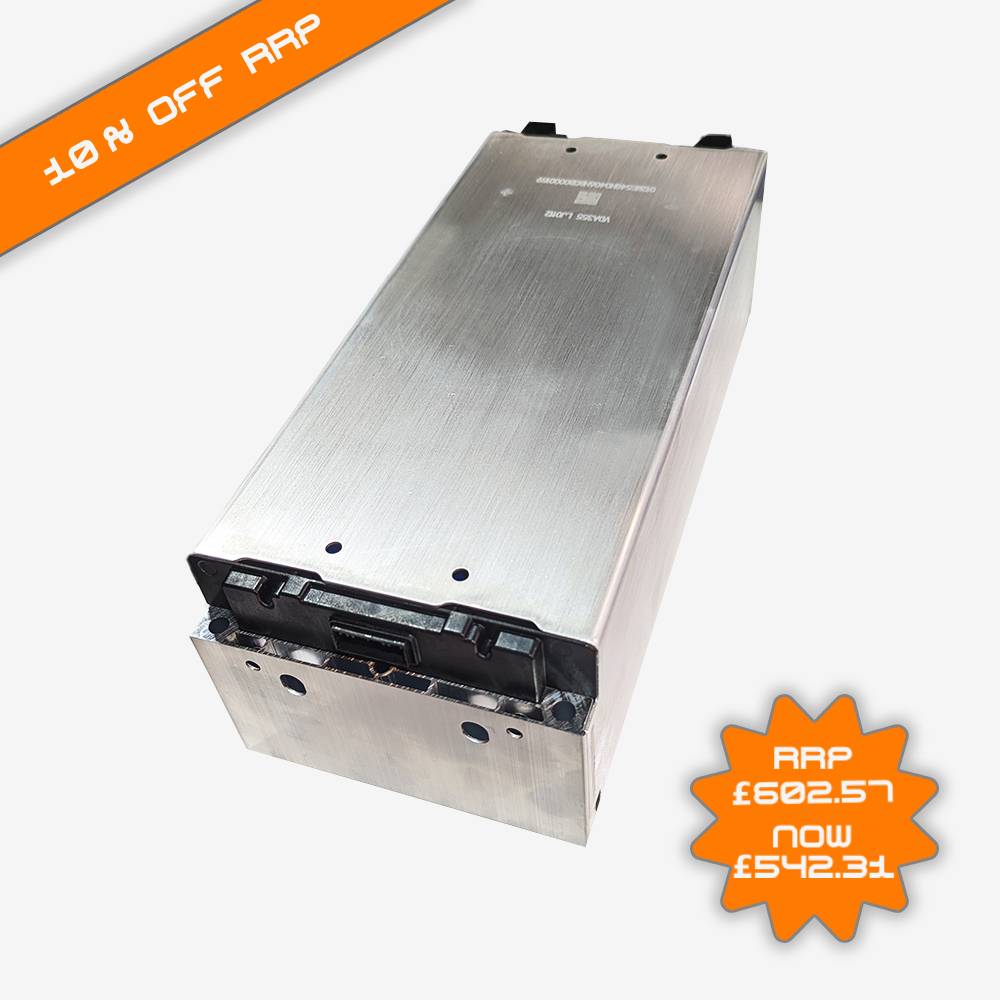

A 6S2P lithium battery module, 2.35 kWh. Six cell groups in series, two cells in parallel, giving 106 amp hours at 22.2 volts nominal.
22.2 volts is a useful middle ground. It is high enough that a pack does not need an unwieldy number of modules, and low enough that a single module can still be handled safely on a bench. Modules in series step the pack in 22.2 volt increments, so a 350 volt class pack is a string of sixteen.
6S means your BMS needs six cell taps per module, not twelve. The two parallel cells in each group behave as one cell for monitoring.
It is built to the VDA 355 module format, which is an automotive standard rather than a manufacturer's own shape. That matters for packaging: dimensions, mounting and terminal positions follow a published standard, so a pack designed around it is not tied to one supplier.
Key specifications
| Part | DFD24KWH6S2P |
|---|---|
| Configuration | 6S2P, six series groups of two |
| Nominal voltage | 22.2 V |
| Capacity | 106 Ah |
| Energy | 2.35 kWh |
| Format | VDA 355 |
| Cell taps required | 6 per module |
| Weight | 12 kg |
Features
- 22.2 V per module, giving sensible pack granularity without an unwieldy module count
- VDA 355 format, a published automotive standard rather than a proprietary shape
- 106 Ah, suiting packs built for range
- Six cell taps per module
- Well documented, with several specification sheets published
Compatibility
For EV conversions, energy storage systems and industrial power.
It needs a BMS. The module has no protection of its own. Every cell group needs monitoring and balancing.
It takes the 12 pin sense connector for the 2.35 kWh module. Module connectors are not interchangeable across module types even where the pin count matches, so check the module rather than counting ways.
In the box
- 1 x 6S2P battery module, 2.35 kWh
Downloads
Several specification sheets, a single cell data sheet and a 3D CAD model in STEP format are in the Documents tab. This module is better documented than most, so read the specifications before designing a pack around it.
