Diagnostic & Programming cable kit
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

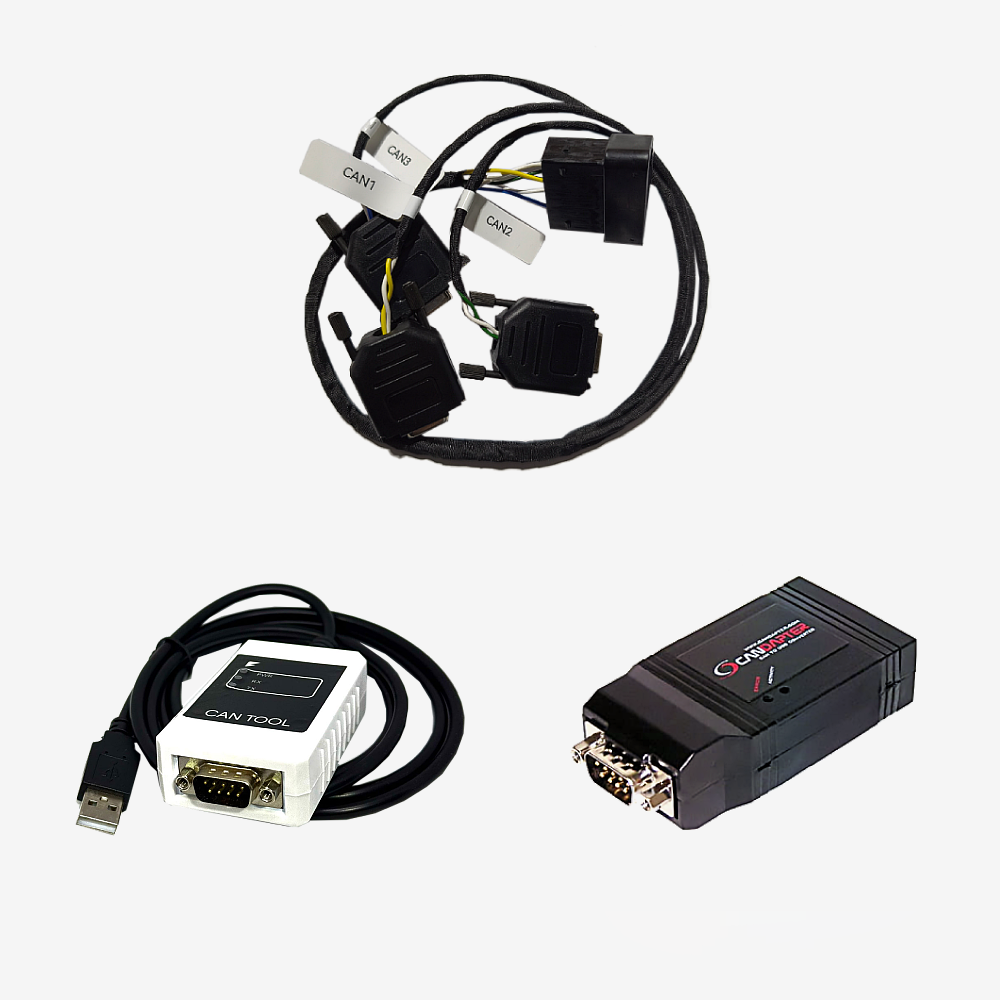

The cables and adapters needed to talk to a Fellten system over CAN, in one kit. An OBD programming cable set, a Peak compatible USB to CAN dongle, and the adapter that takes that dongle to an Orion BMS.
Configuring a BMS, reading a fault, or loading firmware all need the same thing: a working CAN connection between a laptop and the vehicle. Assembling that from parts is where people lose an afternoon, because the dongle, the vehicle side connector and the BMS side pinout all have to agree, and a cable that is physically fine can still be wired to the wrong pins.
This kit is the combination that works. It covers connecting through a standard OBD-II port and connecting directly to an Orion BMS, which between them is how almost every diagnostic or configuration session starts.
One thing to check before you connect. The CAN connection must be inline with the battery pack. Confirm the pinout for your own installation first, because a CAN tool connected to the wrong pins will simply not see the bus, and it is easy to mistake that for a fault in the vehicle.
Key specifications
| Part | DIAGNOSTIC-KIT |
|---|---|
| Type | Diagnostic and programming cable kit |
| Interface | USB to CAN, Peak compatible |
| Vehicle connection | OBD-II |
| BMS connection | Orion BMS, Peak pin out adapter |
| Used for | Diagnostics, configuration, data logging, firmware updates |
| Kit weight | 0.75 kg |
Features
- One kit covers both the OBD-II route and the direct Orion BMS route
- Peak compatible dongle, which is what the Orion tools expect
- High speed USB to CAN, suitable for logging as well as configuration
- Saves assembling adapters from parts and discovering the pinout is wrong
Compatibility
For Fellten EV conversion systems and for Orion BMS configuration generally.
The CAN connection must be inline with the battery pack. Check your own pinout before connecting. If you are not sure what your installation presents on its OBD port, ask us rather than guessing.
Software is not supplied with the kit. The Orion utility and any Fellten tools are downloaded separately.
In the box
- 1 x OBD programming cable set
- 1 x Peak compatible USB to CAN dongle
- 1 x Orion BMS CAN bus adapter, Peak pin out
Downloads
No pinout document is currently published here. Contact us for the pinout that applies to your installation and we will send it.
