Electric Vehicle Gear Shifter - 28cm
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

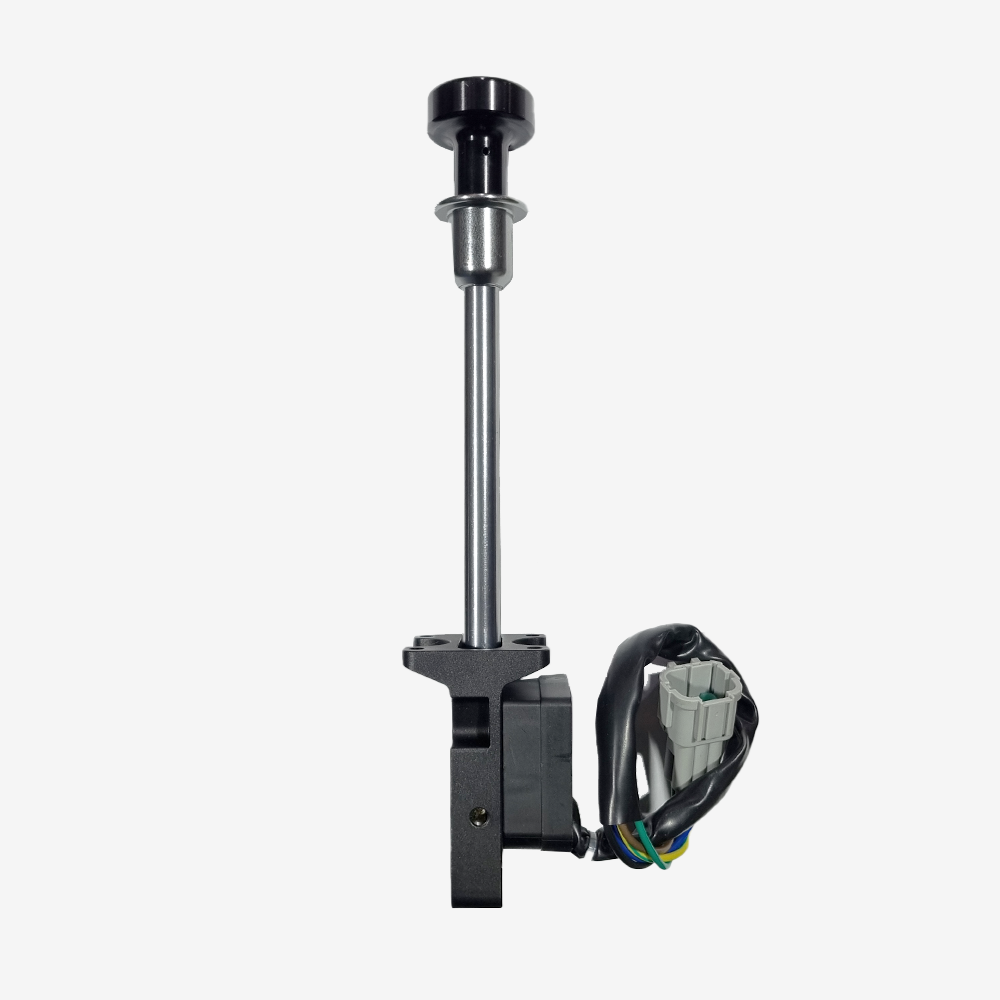

A three position lever gear selector for electric vehicle conversions, with a 28 cm lever and a hard anodised aluminium body. It gives the driver a reverse, neutral and drive gate that feels like a gearchange, and gives the motor controller three plain switched signals.
The body mounts under the floor or the console on four M6 bolts and the lever comes up through a slot in the panel, so nothing but the lever and its knob is visible from the cabin. It is the honest answer to the awkward question in a classic conversion: the original gear lever no longer has a gearbox to operate, and a row of buttons on the transmission tunnel looks like an afterthought.
How it signals. There is no CAN bus and nothing to configure. Each of the three positions closes its own wire to ground and the other two stay open, so the controller sees exactly one direction input at a time. That suits any controller with separate forward, reverse and neutral inputs, and it fails safe: a broken wire reads as that position simply not being selected rather than as a false one. Check that your controller expects a ground switched input rather than a voltage on the pin, because this shifter supplies no power of its own.
Key specifications
| Manufacturer part | EVGS28 |
|---|---|
| Type | Three position lever gear selector |
| Positions | Reverse, neutral, drive |
| Lever length | 28 cm |
| Output | Switched to ground, one wire per position |
| Connector | 6 way, on a flying lead |
| Mounting | 4 x M6 through holes on a 38 x 40 mm pattern |
| Lever slot in the panel | 14.5 mm wide |
| Lever travel | About 30 degrees, reverse to drive |
| Body | Hard anodised aluminium |
| Knob | Included |
| Weight | 2.0 kg |
| Documentation | Wiring pinout and mounting drawing in the Documents tab |
Wiring
| Pin 1, brown | Reverse |
|---|---|
| Pin 2, black | Ground |
| Pin 3, blue | Ground |
| Pin 4 | Not used |
| Pin 5, yellow | Drive |
| Pin 6, green | Neutral |
The same table is in the Documents tab as an image you can take to the car.
Features
- A real lever with a defined gate, so the driver gets the feel of selecting a direction rather than pressing a button
- Three separate switched outputs, one per position, which suits controllers with discrete direction inputs and needs no configuration
- Hard anodised aluminium body, built to sit under a floor where it will meet damp and grit
- Mounts entirely below the panel on four M6 bolts, so only the lever shows in the cabin
- Supplied with its knob and a flying lead, so nothing else has to be sourced to test it on the bench
Compatibility
Suits any motor controller or vehicle control unit with separate forward, reverse and neutral inputs that are switched to ground.
Choose the length by how deep the mount sits. This shifter and the 20 cm version are the same part with a different lever, at the same price. The 28 cm lever is for an under floor or low tunnel mount, where the body sits well below the trim and the lever still has to reach a comfortable height. The 20 cm lever suits a higher mounting point, such as a console or a raised bracket. Measure from the face of your mounting panel to where you want the top of the knob, and pick the lever that lands there.
Cutting the panel needs a 14.5 mm slot for the lever and four M6 clearance holes on a 38 x 40 mm rectangle. The mounting drawing in the Documents tab is dimensioned for marking out.
In the box
- 1 x gear shifter with the knob fitted
- Flying lead with a 6 way connector
Mounting bolts and the mating connector housing are not included. A replacement or alternative knob is available separately.
Downloads
The wiring pinout and the dimensioned mounting drawing are both in the Documents tab above. Between them they cover everything needed to cut the panel and wire the shifter in.
