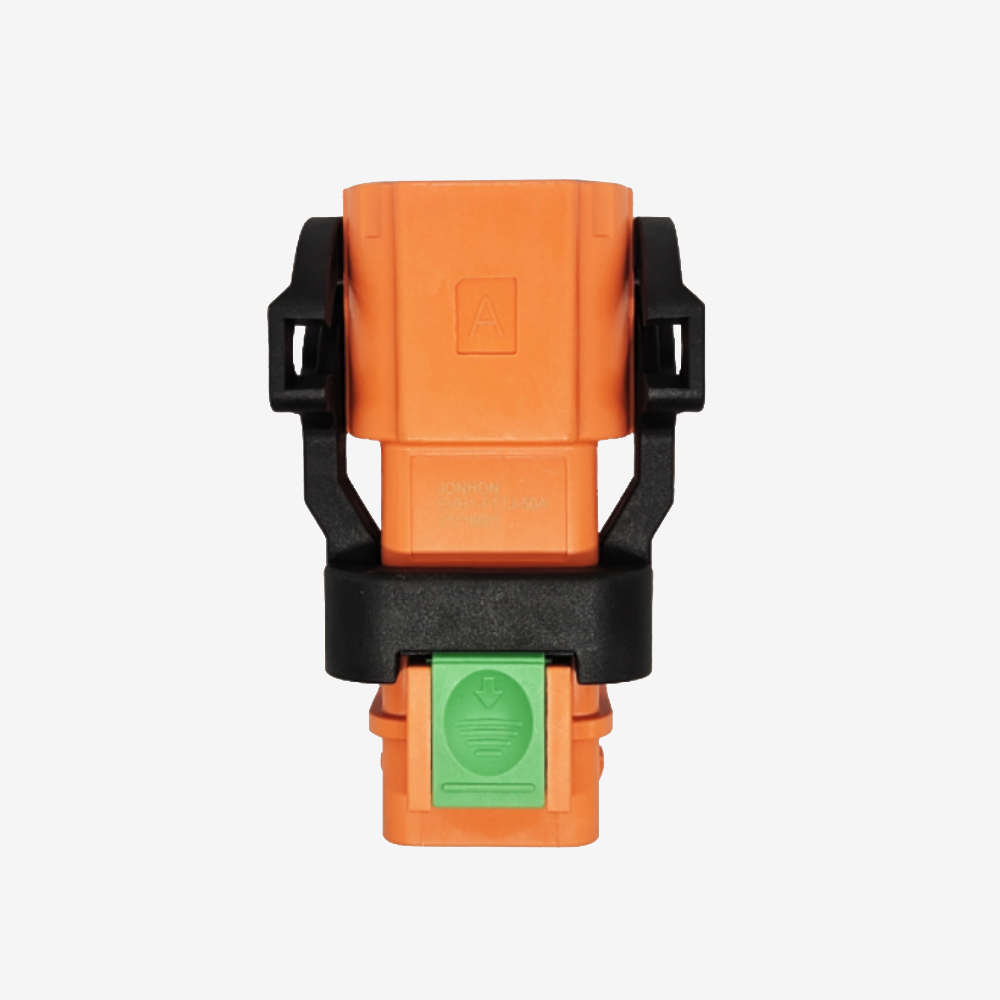

HV Connector Single Straight Male 50mm (A)
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
A single pole high voltage cable plug for 50 mm² cable, A keyed, with a straight body. Crimp terminals supplied. This is the variant with pin contacts, and it takes the receptacle with socket contacts.
Check the contact gender before ordering. This series has plugs and receptacles in both contact genders, and the part number is what distinguishes them. T means plug and the letter after it is the contact: J for pin, K for socket. So F1TJ is this one, the pin contact plug, and it mates with the socket contact receptacle.
The straight body suits a run that carries on in line rather than turning at the connector. Where space behind the connector allows a gentle bend, a straight plug is shorter overall and easier to assemble than a right angle one.
Single pole means one connector per polarity, so positive and negative cross the enclosure independently and can be placed apart from each other. A single mechanical failure then cannot bridge positive to negative.
Key specifications
| Manufacturer part | EVH1-F1TJ-50A |
|---|---|
| Type | Single pole cable plug, the moving half |
| Contact gender | Pin, which is the J in the part number |
| Poles | 1 |
| Conductor size | 50 mm² |
| Body | Straight |
| Keying | A |
| Terminals | Crimp terminals supplied |
| Mates with | EVH1-F1ZK-A, the socket contact receptacle |
| Weight | 0.2 kg |
Features
- Straight body, shorter overall than a right angle plug where space allows the bend
- Single pole, so the two polarities can be separated across the enclosure
- A keying physically blocks mating with a B keyed half
- Crimp terminals included
- Pin contacts, mating with the socket contact receptacle
Compatibility
Mates with EVH1-F1ZK-A, the socket contact receptacle that accepts 35 and 50 mm².
If your run needs to turn at the connector, the 90 degree plug is a different part and has socket contacts, so it pairs with the other receptacle. Check both the body style and the contact gender together.
Use the keying as a polarity convention. Pick A for one polarity and B for the other and hold to it across the whole vehicle.
In the box
- 1 x single pole straight cable plug, A keyed, pin contact
- Crimp terminal to suit 50 mm²
Downloads
No datasheet is published for this part. For dimensions, the crimp specification or terminal part numbers, contact us.
