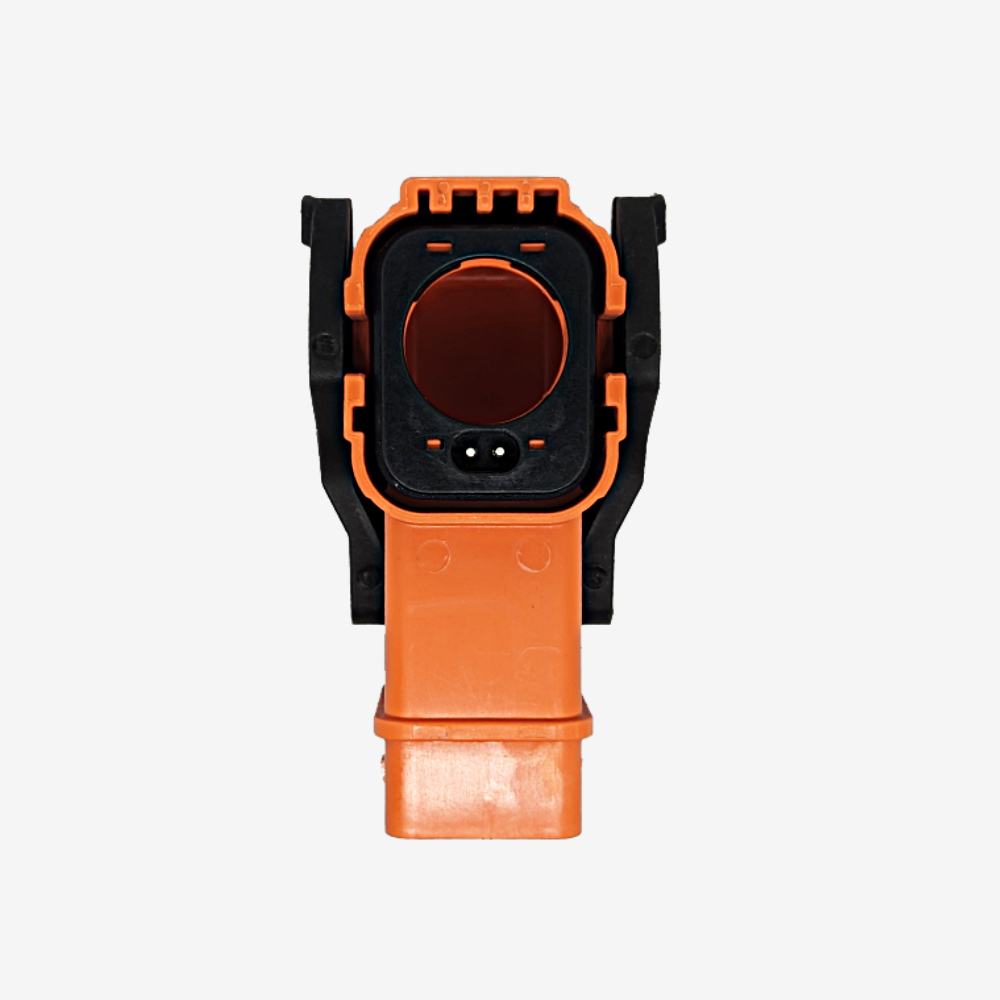

HV Connector Single 90° Male 50mm (A)
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
A single pole high voltage cable plug for 50 mm² cable, A keyed, with the cable leaving at 90 degrees. Terminals supplied. This is the variant with socket contacts, and it takes the receptacle with pin contacts.
Check the contact gender before ordering. This series has plugs and receptacles in both contact genders, and the part number is what distinguishes them. T means plug and the letter after it is the contact: K for socket, J for pin. So F1TK is this one, the socket contact plug, and it mates with the pin contact receptacle.
Single pole means one connector per polarity, so positive and negative cross the enclosure independently and can be placed apart from each other. A single mechanical failure then cannot bridge positive to negative.
The 90 degree body is usually what decides the layout. On shielded 50 mm² the bend radius behind a straight connector is substantial, and turning at the connector is often the only way the run fits against a pack wall.
Key specifications
| Manufacturer part | EVH1-F1TK-50WA |
|---|---|
| Type | Single pole cable plug, the moving half |
| Contact gender | Socket, which is the K in the part number |
| Poles | 1 |
| Conductor size | 50 mm² |
| Cable exit | 90 degrees |
| Keying | A |
| Terminals | Crimp terminals supplied |
| Mates with | EVH1-F1ZJ-WA, the pin contact receptacle |
| Weight | 0.2 kg |
Features
- 90 degree exit, for tight runs where a straight body will not fit
- Single pole, so the two polarities can be separated across the enclosure
- A keying physically blocks mating with a B keyed half
- Crimp terminals included
- Socket contacts, mating with the pin contact receptacle
Compatibility
Mates with EVH1-F1ZJ-WA, the pin contact receptacle that accepts 35 and 50 mm².
Use the keying as a polarity convention. Pick A for one polarity and B for the other and hold to it across the whole vehicle.
The ratings are set by the whole assembly. If you are working to a specific voltage and continuous current figure, ask us and we will confirm against the manufacturer data.
In the box
- 1 x single pole 90 degree cable plug, A keyed, socket contact
- Crimp terminal to suit 50 mm²
Downloads
No datasheet is published for this part. For dimensions, the crimp specification or terminal part numbers, contact us.
