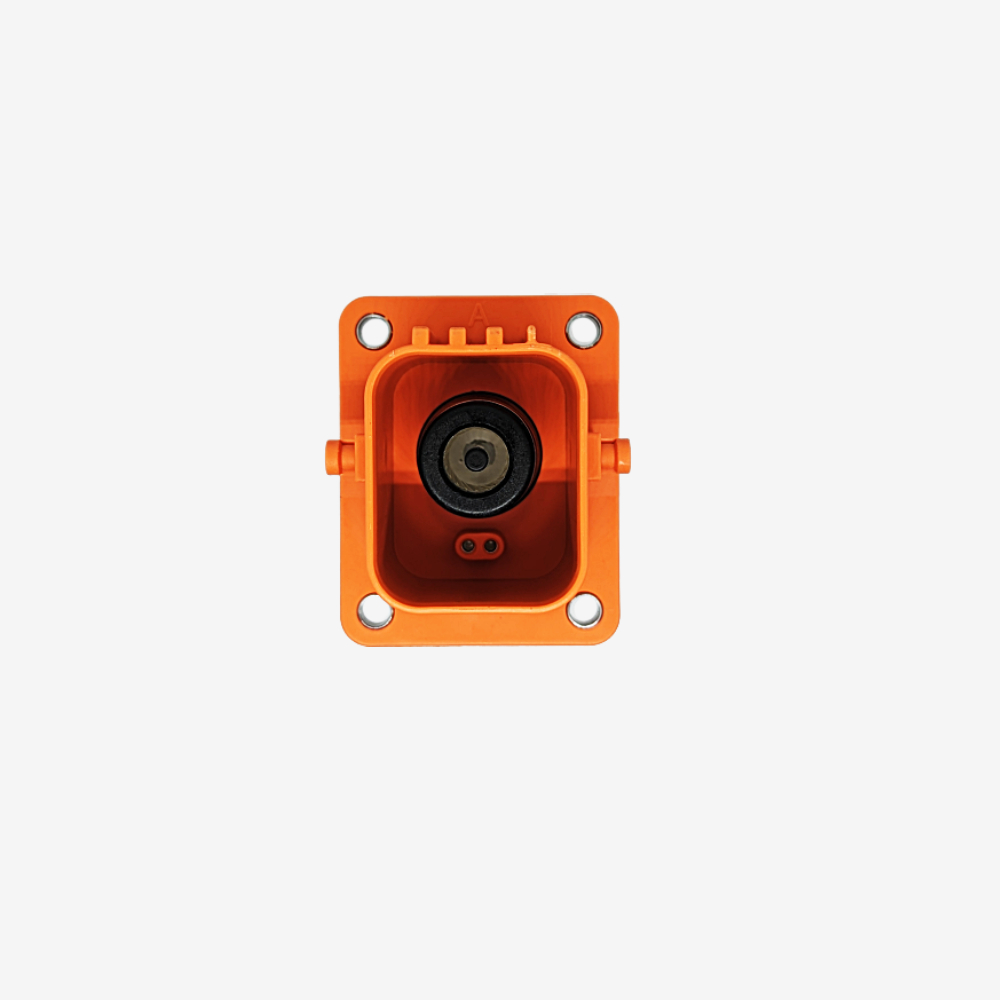

HV Connector Single Female (A) 35mm & 50mm
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
A single pole high voltage receptacle, A keyed, accepting 35 mm² and 50 mm² cable. This is the variant with socket contacts, and it takes the plug with pin contacts.
Read that last sentence before ordering, because we list two receptacles that look identical. Both are single pole, both are A keyed, both take 35 and 50 mm². The difference is the contact gender inside the housing, and it is the whole difference: this one has sockets, the other has pins, and each mates with the opposite half. Getting it wrong gives you two parts that will not go together.
The part number tells you which is which. In this series, Z means receptacle and the letter after it is the contact: J for pin, K for socket. So F1ZK is the socket contact receptacle, on this page, and F1ZJ is the pin contact one.
Single pole means one connector per polarity, so positive and negative cross the enclosure independently and can be placed apart from each other. A single mechanical failure then cannot bridge them.
Key specifications
| Manufacturer part | EVH1-F1ZK-A |
|---|---|
| Type | Single pole receptacle, the fixed half |
| Contact gender | Socket, which is the K in the part number |
| Poles | 1 |
| Conductor size | 35 mm² and 50 mm² |
| Keying | A |
| Mates with | EVH1-F1TJ-50A, the straight male with pin contacts |
| Weight | 0.2 kg |
Features
- Accepts both 35 mm² and 50 mm², so the connector does not dictate the cable size
- Single pole, so the two polarities can be separated across the enclosure
- A keying physically blocks mating with a B keyed half
- Socket contacts, mating with the pin contact plug
- Vibration resistant design for busbar and inverter connections
Compatibility
Mates with EVH1-F1TJ-50A, the straight male with pin contacts.
If you need the pin contact receptacle instead, that is EVH1-F1ZJ-WA, which mates with the socket contact plug. The two are not interchangeable.
Use the keying as a polarity convention. Pick A for one polarity and B for the other and hold to it across the whole vehicle. On a single pole system that is what prevents a polarity reversal.
In the box
- 1 x single pole receptacle, A keyed, socket contact
Downloads
No datasheet is published for this part. For dimensions, the panel cut out or terminal detail, contact us.
