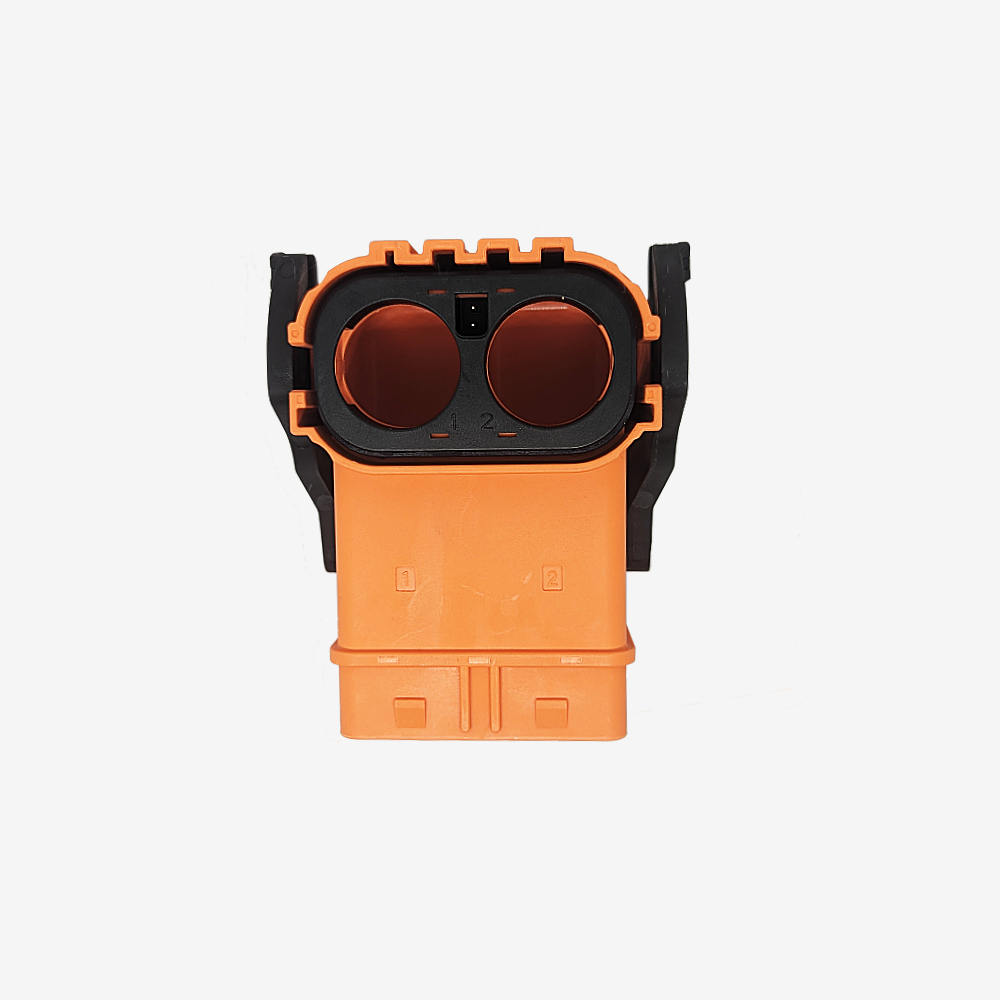

HV Connector Double 90° Male 35mm2 (A)
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
The cable side half of a two pole 35 mm² high voltage connector, A keyed, with the cable leaving at 90 degrees. Terminals supplied.
The right angle body is the reason to choose it. A straight connector needs a long, gentle bend behind it before the cable can turn, and on shielded 35 mm² that bend radius is usually what decides the layout. This one turns at the connector, so it fits against a pack wall or in an arch where a straight body plus its bend will not go.
It carries a high voltage interlock. A small signal loop alongside the power contacts is complete only while the connector is fully home. Wire it into your BMS or contactor control and the contactors open the moment someone starts to separate the joint. The interlock contacts are shorter by design, so they break first and the current is already zero before the power pins part.
A keyed parts mate only with A keyed parts. The moulded keyway physically blocks a B keyed half. Check the letter on both halves before ordering. It is the most common reason one of these comes back.
Key specifications
| Manufacturer part | EVH1A-F2TK-35WA |
|---|---|
| Type | Cable plug, the moving half |
| Poles | 2, plus interlock |
| Conductor size | 35 mm² |
| Cable exit | 90 degrees |
| Keying | A |
| Rated current | 300 A continuous |
| Interlock | Yes, first to break |
| Ingress protection | IP67 when mated |
| Terminals | Supplied |
| Mates with | EVH1A-F2ZJ-WA, the A keyed female |
| Weight | 0.5 kg |
Features
- 90 degree exit, for pack walls and tight runs where a straight body will not fit
- Integrated high voltage interlock that breaks before the power contacts
- A keying physically blocks mating with a B keyed half
- IP67 sealed once mated
- Terminals included, so there is nothing else to order to make it off
Compatibility
Mates with the A keyed female, EVH1A-F2ZJ-WA, which accepts both 35 mm² and 50 mm². Buy the pair unless you already have the other half.
For EV battery packs, energy storage and industrial high voltage distribution on 35 mm² cable.
One point to confirm before you specify it. Our supplier data gives the insulation rating as 1000 V AC. On a connector used almost entirely on DC traction systems that is the figure worth checking, so ask us and we will confirm the DC rating rather than have you design to an AC number.
In the box
- 1 x 90 degree cable plug, A keyed
- Power terminals to suit 35 mm²
Downloads
No datasheet is published for this part. For dimensions, terminal part numbers or the crimp specification, contact us.
