HV Connector 3 Way Female 50 mm2
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

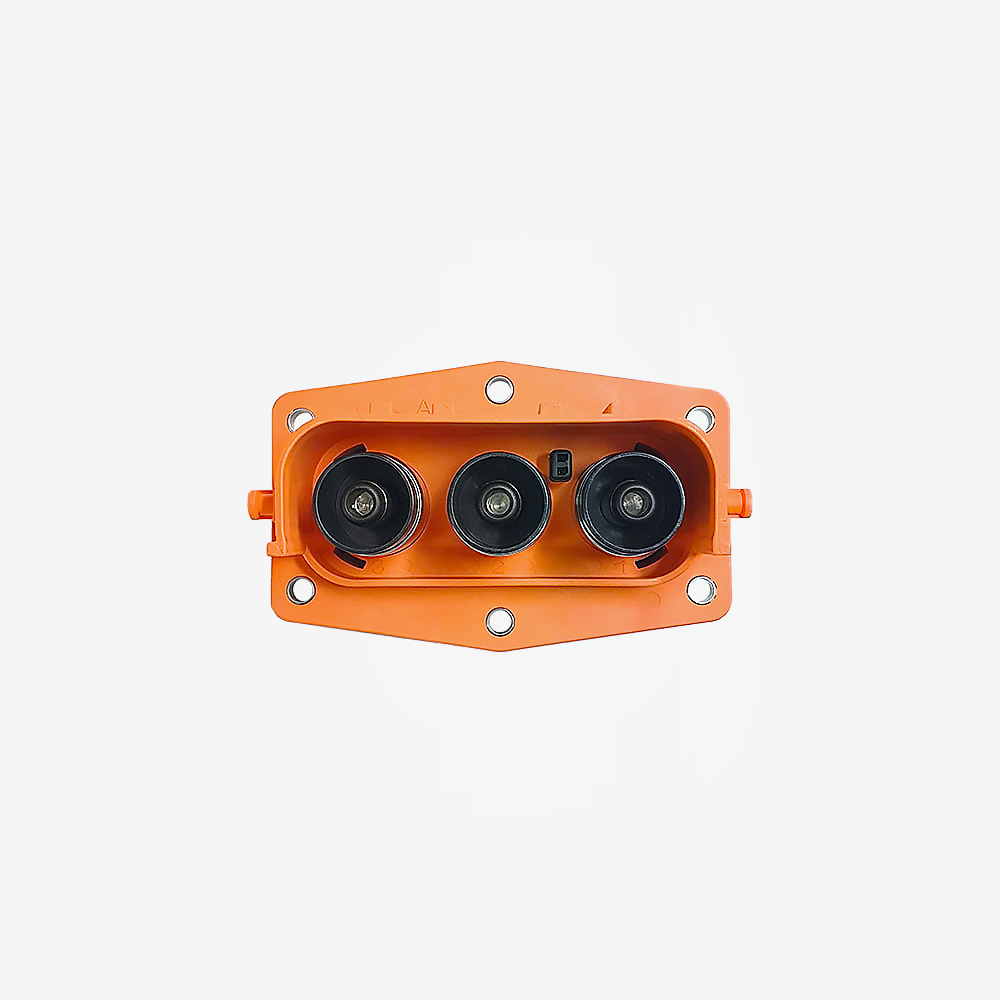

A three pole 50 mm² high voltage connector, female, for 50 mm² shielded cable. Rated 200 A continuous with an interlock and IP67 sealing.
Three poles is what makes this connector different, and it is almost always a motor connector. A traction circuit needs two conductors, positive and negative. Three conductors of equal size in one body is the signature of a three phase AC run, which in a conversion means the cable between the inverter and the motor. That is the connection this part is built for.
Doing that in one connector rather than three single pole ones keeps the three phases together, which matters electrically as well as tidily: phases routed together largely cancel each other's radiated field, and splitting them apart undoes that.
It carries a high voltage interlock. A small signal loop alongside the power contacts is complete only while the connector is fully home. Wire it into your BMS or contactor control and the contactors open the instant someone begins to separate the joint, so the current is already zero before the power contacts part.
Key specifications
| Manufacturer part | EVH1A-F3ZJ-WA |
|---|---|
| Type | 3 way female connector |
| Poles | 3, plus interlock |
| Conductor size | 50 mm² shielded HV cable |
| Rated voltage | 1000 V |
| Rated current | 200 A continuous |
| Interlock | Yes, first to break |
| Ingress protection | IP67 |
| Mates with | EVH1A-F3TK-50WA, the 3 way 90 degree male |
| Weight | 0.8 kg |
Features
- Three poles in one body, which is what a three phase motor run needs
- Keeps the three phases together, so their radiated fields largely cancel
- Integrated high voltage interlock that breaks before the power contacts
- Takes shielded cable, so the screen terminates at the connector
- IP67 sealed once mated
Compatibility
Mates with the 3 way 90 degree male, EVH1A-F3TK-50WA. Buy the pair unless you already have the other half.
For inverter to motor runs and any other three conductor high voltage connection on 50 mm² cable.
Note the current rating is 200 A, lower than the 300 A of the two pole connectors in this family. Three contacts in one body means less room for each. Check it against your motor's continuous phase current, not its peak.
In the box
- 1 x 3 way female connector
Downloads
The dimensioned drawing and a 3D CAD model in STEP format are in the Documents tab.
