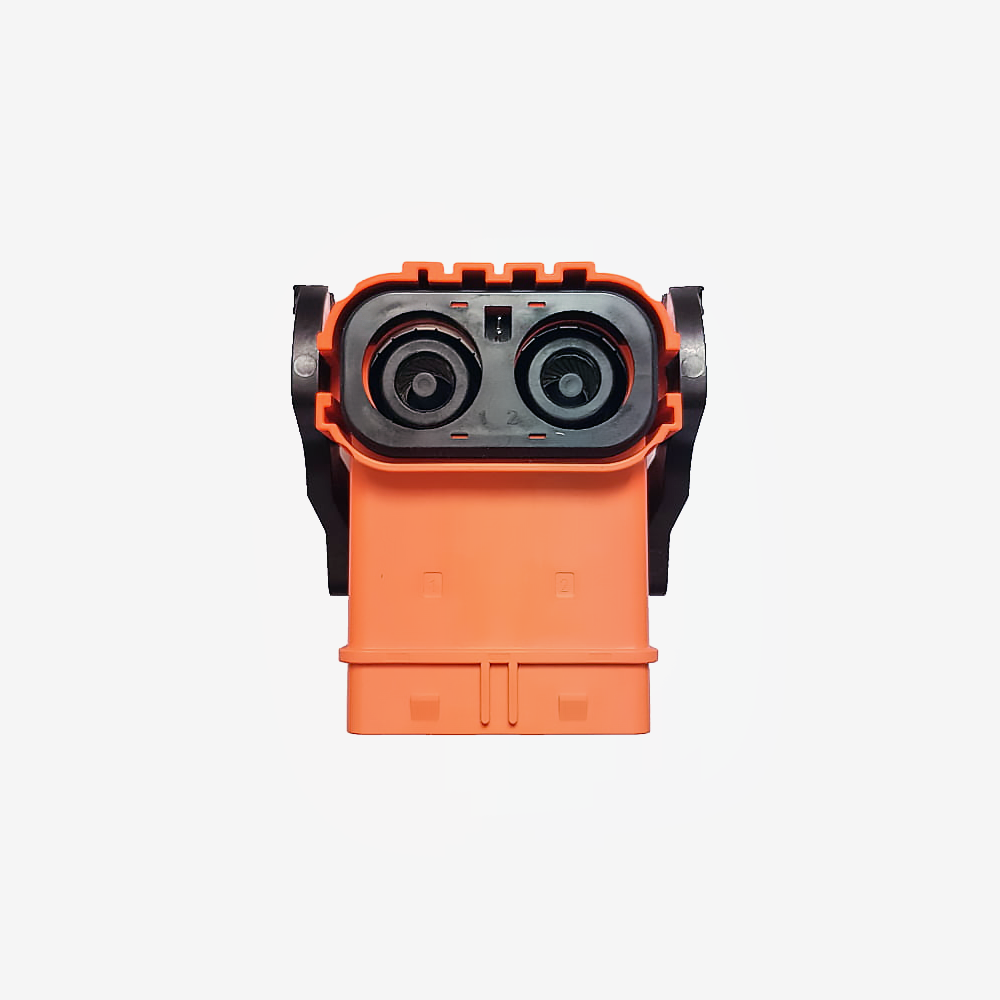

HV Connector Double (A) 90° Male

The male half of a two way high voltage connector for 70 mm2 cable, with a 90 degree body, an integrated interlock and terminals included. Rated 1000 V and 300 A continuous, sealed to IP67, and keyed as an A so it can only ever mate with an A female.

A high voltage connector is doing more than joining two cables. It is the point where a pack can be safely separated, so it carries a high voltage interlock loop: a small signal circuit that breaks before the power pins do, telling the BMS or vehicle controller to open the contactors before anything live is exposed. It is also the part that stops the wrong two cables being joined, which is what the A and B keying is for. A pack with two circuits uses one key for each, and no amount of determination will plug an A into a B. The 90 degree body matters for a different reason: in most installations the cable has to turn as soon as it leaves the connector, and a straight body would force a bend radius the cable cannot take.

Key specifications

Features

• Integrated interlock loop breaks before the power pins separate, so the system can open its contactors before anything live is exposed
• Keyed A so it physically cannot mate with a B connector, which is what keeps two circuits in the same pack from being crossed
• 90 degree body turns the cable at the connector, instead of forcing a bend radius 70 mm2 cable will not accept
• IP67 sealed, so it can live under a vehicle rather than only inside a dry enclosure
• Terminals are supplied with it, so there is nothing else to order before you can crimp and fit
• Rated 300 A continuous, which is the current a 70 mm2 run is usually carrying

Compatibility

This is the male half. It mates with the Double (A) Female 70 mm2 and nothing else. If your pack has a second high voltage circuit, run it on the B keyed pair so the two can never be swapped.

Sized for 70 mm2 shielded HV cable. The terminals are crimped, so a hydraulic crimper is the right tool, and the joint wants adhesive lined heat shrink behind the connector.

For smaller conductors we stock the same style of connector in 4 to 6 mm2, 16 mm2, 35 mm2 and 50 mm2, and single way versions in 70 mm2 where only one pole is needed.

In the box

• 1 x connector, male, 90 degree, A keyed
• Terminals

The mating female half is a separate part, as is the cable.

Downloads

Two documents are in the Documents tab above. The stripping and assembly drawing walks through all eleven steps of fitting the connector to the cable, with the strip lengths and the order the grounding rings, cartridge and lug go together. There is also a STEP model of the connector for designing it into an installation, and the 3D model on this page is the same geometry.
