HV Connector Double (B) Female
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

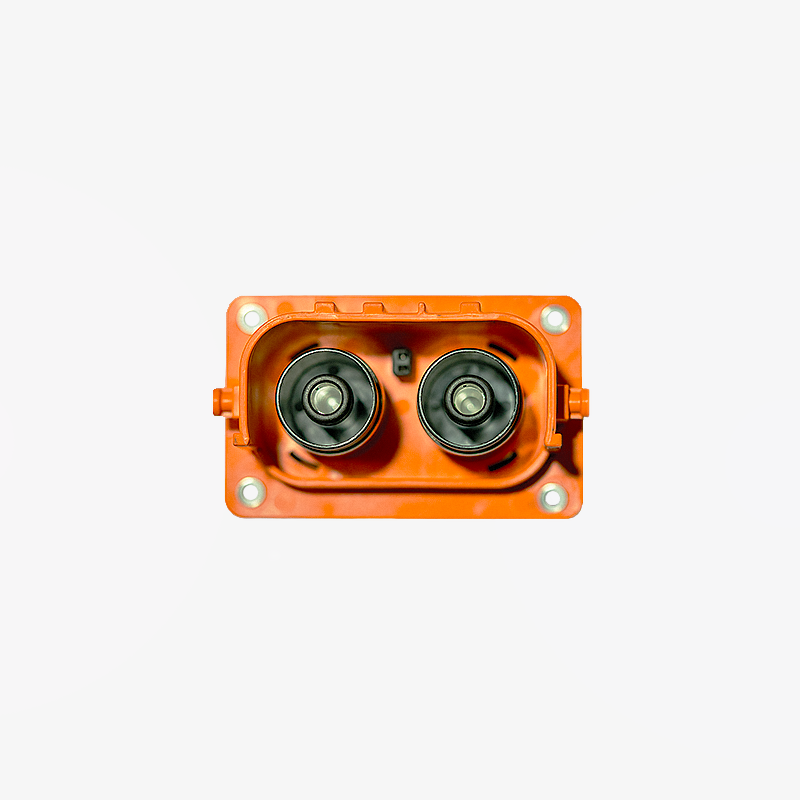

The panel mounting half of a two pole 70 mm² high voltage connector, B keyed, with flat lug rear terminals. It mounts through an enclosure wall and takes the matching B keyed 90 degree plug.
Its terminals are flat lugs on the back, so inside the box the connection is a bolted joint to a busbar or a cable lug rather than a crimp. That suits a pack or an inverter housing where the internal side is solid metalwork, and it is the reason to choose this over a rear crimp version.
It carries a high voltage interlock. A small signal loop alongside the power contacts is complete only while the plug is fully home. Wired into your BMS or contactor control, it opens the contactors as soon as the plug starts to move, so the power contacts never part under current.
B keyed parts mate only with B keyed parts. The moulded keyway physically blocks an A keyed half. Where two similar high voltage runs sit near each other, using A for one and B for the other makes crossing them impossible. Check the letter on both halves before ordering. It is the most common reason one of these comes back.
Key specifications
| Manufacturer part | EVH1A-H2ZJ-WB |
|---|---|
| Type | Panel mount receptacle, the fixed half |
| Poles | 2, plus interlock |
| Conductor size | 70 mm² |
| Rear termination | Flat lug, bolted |
| Keying | B |
| Rated current | 300 A continuous |
| Interlock | Yes, first to break |
| Ingress protection | IP67 |
| Mates with | EVH1A-H2TK-70WB, the B keyed 90 degree male |
| Weight | 0.3 kg |
Features
- Flat lug rear terminals, for a bolted joint to internal busbar rather than a crimp
- Integrated high voltage interlock that breaks before the power contacts
- B keying physically blocks mating with an A keyed half
- IP67 sealed once mated
- Sized for 70 mm² conductors, for main pack runs rather than auxiliaries
Compatibility
Mates with the B keyed 90 degree male, EVH1A-H2TK-70WB. Buy the pair unless you already have the other half.
For EV pack enclosures, inverter and charger housings, energy storage and industrial high voltage distribution on 70 mm² cable.
One point to confirm before you specify it. Our supplier data gives the insulation rating as 1000 V AC. On a connector used almost entirely on DC traction systems that is the figure worth checking, so ask us and we will confirm the DC rating rather than have you design to an AC number.
In the box
- 1 x panel mount receptacle, B keyed
Downloads
No datasheet is published for this part. For dimensions, the panel cut out or terminal detail, contact us.
