4-6 mm2 - 2 Way HV Connector Female (B)
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

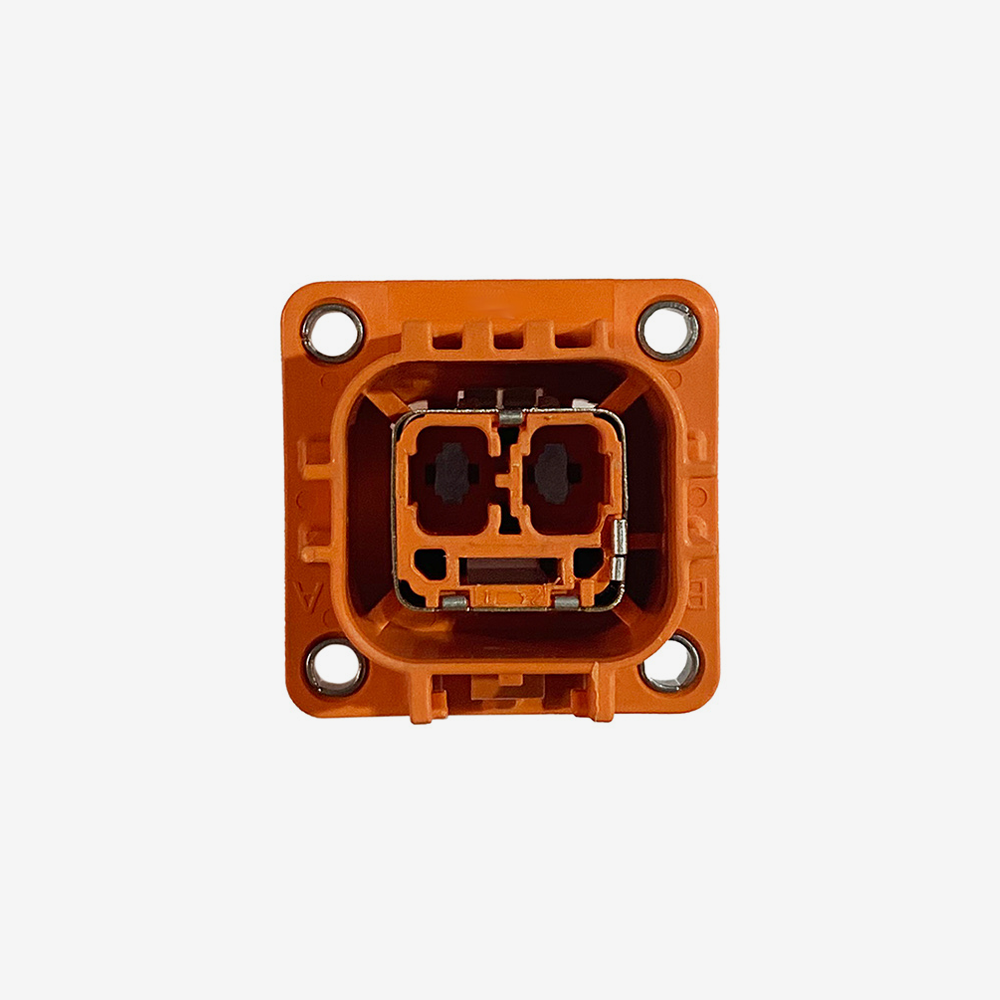

The panel mounting half of a small two pole high voltage connector for 4 to 6 mm² cable, B keyed. It goes through an enclosure wall and the matching B keyed plug locks into it.
This is the size for the high voltage circuits that are not the traction circuit: heaters, compressors, DC to DC feeds and charger runs. They sit at full pack voltage and need a proper high voltage connector, but at tens of amps rather than hundreds, and a 70 mm² connector on a 6 mm² cable wastes space and money.
B keyed parts mate only with B keyed parts. The moulded keyway physically blocks an A keyed half. Where two similar auxiliary runs sit close together, using A for one and B for the other makes crossing them impossible, which is exactly why both keyings exist. Check the letter on both halves before ordering.
Key specifications
| Manufacturer part | EVH2-N2ZJ-TB |
|---|---|
| Type | Panel mount receptacle, the fixed half |
| Poles | 2 |
| Conductor size | 4 mm² to 6 mm² |
| Keying | B |
| Mounting | Panel mount |
| Mates with | EVH2-N2TK-TDB, the B keyed plug |
| Weight | 0.06 kg |
Features
- Right size for auxiliary high voltage runs rather than a traction connector pressed into the job
- Panel mount, so it becomes part of the enclosure wall
- B keying physically blocks mating with an A keyed half
- Positive locking mechanism that resists unintentional disconnection
Compatibility
Mates with the B keyed plug, EVH2-N2TK-TDB. Buy the pair unless you already have the other half.
For heaters, compressors, DC to DC converter feeds, charger runs and other high voltage auxiliaries on 4 to 6 mm² cable.
The ratings are set by the whole assembly. If you are working to a specific voltage and continuous current figure, ask us and we will confirm against the manufacturer data.
In the box
- 1 x panel mount receptacle, B keyed
Downloads
A 3D CAD model in STEP format is in the Documents tab. Note that the file published is the A keyed variant: the bodies are identical apart from the keyway, so it is correct for checking size and clearance but not for checking keying.
