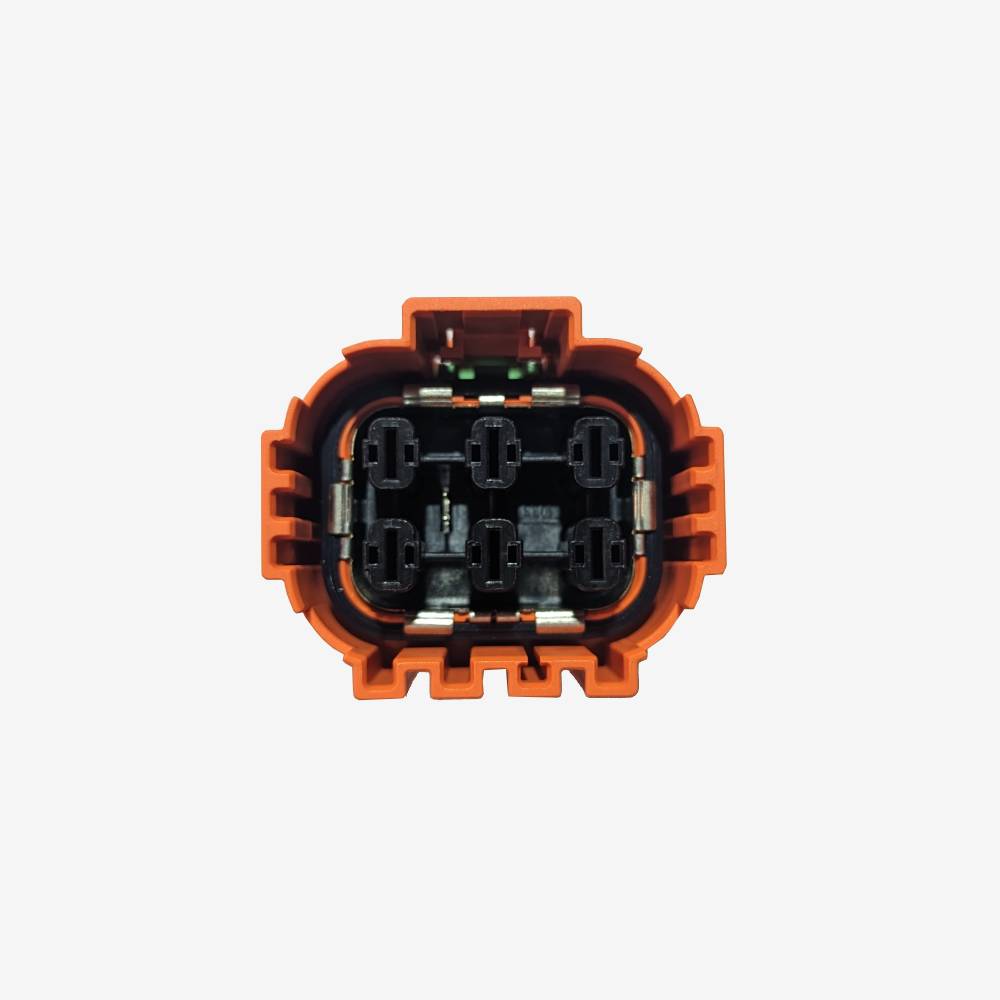

HV Connector Plug 6 core 20A
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
The cable side half of a six core 20 A high voltage connector, with terminals supplied. It carries six separate circuits through one sealed connector, so a group of auxiliary or signal runs can cross a pack wall together.
Not every high voltage connection is a pair of heavy cables. A pack has heaters, pumps, sensors and interlocks that each need their own path, and running six individual connectors through an enclosure means six seals, six holes and six chances of a leak. This takes all six through one.
At 20 A per core this is for the auxiliaries, not the traction circuit. If you are looking for a connector for a main pack run, this is the wrong part and the heavy two pole connectors are the right ones.
Terminals are included. Spare terminals to suit 4 to 6 mm² are available separately if you need to remake a joint or build a longer loom.
Key specifications
| Manufacturer part | EVH2-N6TK-RDA |
|---|---|
| Type | Cable plug, the moving half |
| Cores | 6 |
| Rated current | 20 A per core |
| Terminals | Supplied |
| Spare terminals | 4 to 6 mm², sold separately |
| Keying | A |
| Mates with | The matching six core socket |
| Weight | 0.1 kg |
Features
- Six circuits through a single sealed connector instead of six separate penetrations
- 20 A per core, enough for pumps, heaters and contactor feeds
- Terminals included, so nothing else is needed to make it off
- Keyed housing, so it cannot be mated to a differently keyed half
Compatibility
Mates with the matching six core socket, which is the panel mounting half. Buy the pair unless you already have the other side.
For EV auxiliary power distribution, battery module services, industrial control and any multi circuit run that needs one sealed crossing rather than several.
This is a 20 A connector. Size each core to the load it carries, and do not treat the six cores as a way of carrying one large current in parallel unless you have confirmed that with us first.
In the box
- 1 x six core plug
- Terminals to suit
Downloads
No datasheet is published for this part. For dimensions, the crimp specification or terminal part numbers, contact us and we will supply them.
