M10 x 30mm Hex Bolt
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

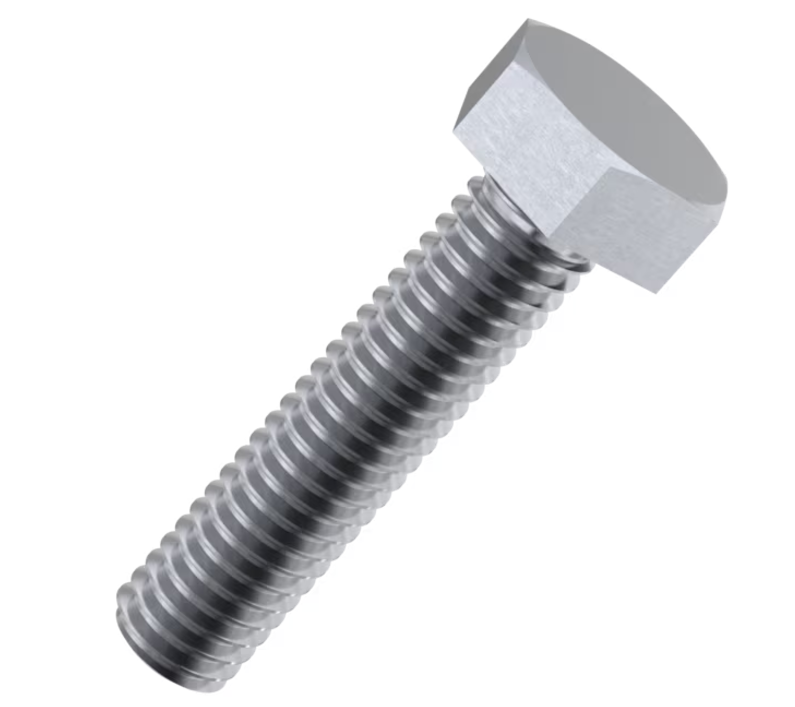

An M10 by 30 mm hex head bolt in stainless steel.
Fasteners in a high voltage build are not generic hardware. A bolt through a busbar carries current. A bolt into an enclosure holds a seal. A bolt into a mount takes drive torque. In each case the wrong material, the wrong head or the wrong length is a fault that only shows up later, and usually somewhere awkward to reach.
A hex head is the general purpose fastener head, and its virtue is access: it can be turned with a spanner from the side as well as a socket from above, which matters in the places a conversion puts fasteners. It also gives a large bearing area under the head without needing a washer on a flat surface.
Stainless is corrosion resistant, not high tensile. Do not substitute it where a high tensile bolt is specified, particularly on anything carrying drive torque or suspension load. Stainless also galls against itself under load, so use anti seize on a stainless nut.
Key specifications
| Part | FXM10H30SS |
|---|---|
| Type | Hex head bolt |
| Thread | M10 |
| Length | 30 mm |
| Drive | Hex head |
| Material | Stainless steel |
| Sold as | Individually |
Features
- Hex head, turnable with a spanner from the side or a socket from above
- Large bearing area under the head
- Stainless, for corrosion resistance in exposed positions
Compatibility
For M10 threads and clearance holes in general assembly work.
Check the length against your stack before ordering. A bolt that bottoms out in a blind hole feels tight while clamping nothing, and one that is too short engages too few threads to hold. Count the thickness of everything the bolt passes through, plus the depth it needs in the thread.
In the box
- 1 x M10 x 30 mm hex bolt
Downloads
No document is published for this fastener. For the exact dimensions or material certification, contact us.
