GIGAVAC 12VDC Cell Contactor
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

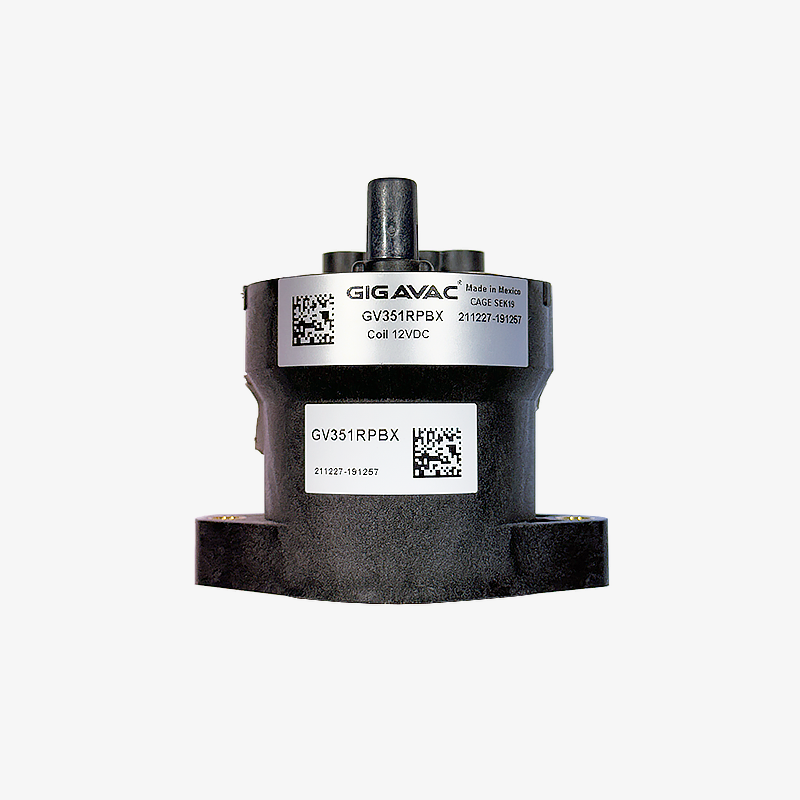

A GIGAVAC GV351 hermetically sealed contactor: 500 A continuous, rated to 1000 V DC, with a 12 V coil. Main traction contactor duty from a manufacturer whose parts are the reference for this job.
Breaking DC at pack voltage is what this part is for. Alternating current crosses zero a hundred times a second and any arc drawn on opening extinguishes itself. Direct current never does, so an arc struck at 1000 V keeps burning across separating contacts until something puts it out. An ordinary relay in this position welds, and a welded main contactor means a pack that can no longer isolate itself, which is the worst failure a high voltage system can have.
Hermetically sealed means the contacts live in a controlled atmosphere that quenches the arc as they part and that nothing ever gets into. That is what lets a device this size interrupt this much current, and why its performance does not drift across a million operations.
Contact resistance of 0.15 milliohms is the number that matters in normal running. At 500 A that is under 40 watts of heat in the contactor itself. A cheaper contactor with several times the resistance turns your main switch into a heater and a voltage drop.
The coil expects external PWM drive. It pulls in at full voltage and is then held closed on a reduced duty cycle, which is what keeps coil power and coil heat down for the hours it stays energised. Driving it with a plain 12 V feed is not the intended use and will run it hot.
Key specifications
| Manufacturer part | GIGAVAC GV351RPBX, by Sensata |
|---|---|
| Type | Hermetically sealed DC contactor, SPST normally open |
| Continuous current | 500 A |
| Rated voltage | Up to 1000 V DC |
| Coil voltage | 12 V DC, external PWM |
| Contact resistance | 0.15 milliohms typical |
| Ingress protection | IP67 and IP69K |
| Mechanical life | Over 1,000,000 operations |
| Weight | 0.4 kg |
Features
- 500 A continuous at up to 1000 V DC, which is full traction contactor duty
- Hermetically sealed with arc suppression, so it interrupts DC rather than welding
- 0.15 milliohm contacts, so it does not become a heater at full current
- IP67 and IP69K, for mounting anywhere in the vehicle
- Over a million mechanical operations
- GIGAVAC by Sensata, a part that can be specified on a vehicle needing approval
Compatibility
For EV traction packs, battery energy storage, industrial equipment and renewable installations up to 1000 V DC.
Drive the coil with PWM. Pull in at full voltage, then hold on a reduced duty cycle. Most contactor controllers do this; a bare 12 V feed does not.
Do not close it onto an empty DC link. A main contactor closed directly onto an inverter's capacitance draws an inrush that will damage even a contactor this good. Use a precharge resistor and a contactor controller.
In the box
- 1 x GIGAVAC GV351RPBX contactor
Downloads
The GIGAVAC GV350 series datasheet is in the Documents tab, with the full electrical ratings, the coil drive requirements and the derating curves.
