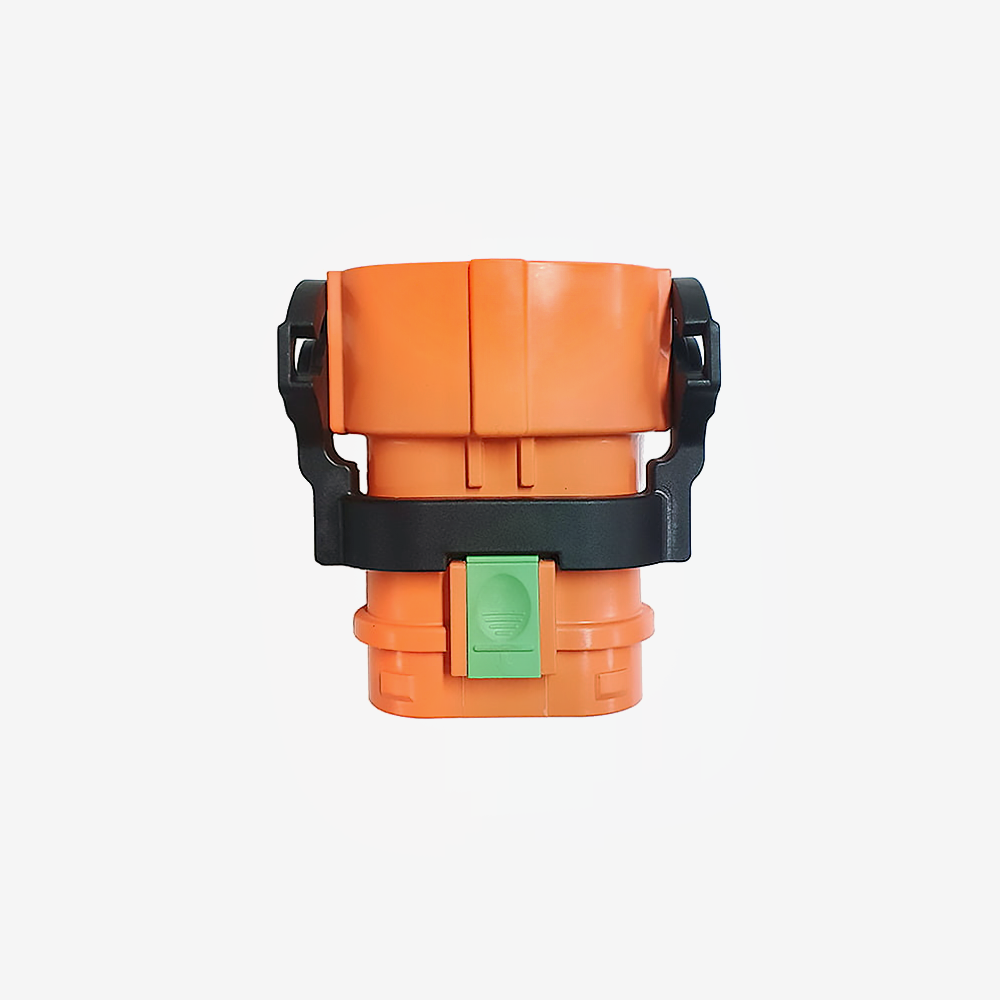

50 mm2 Way HV Connector Male
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
The cable side half of a two pole 50 mm² high voltage connector, A keyed, with an interlock and a touch proof face. Terminals supplied.
This is the plug. It pushes into the matching A keyed receptacle mounted through a panel and locks there. The body is straight, which suits a run that carries on in line rather than turning at the connector.
Touch proof matters more than it sounds. The contacts are recessed so that a finger, or a screwdriver, cannot reach a live pin on an unmated connector. On a pack side connector that has been pulled but not isolated, that is the difference between a near miss and an incident.
It carries a high voltage interlock. A small signal loop alongside the power contacts is complete only while the connector is fully home. Wire it into your BMS or contactor control and the contactors open the instant someone begins to separate the joint. The interlock contacts are shorter by design, so they break first.
It mates with the 35 and 50 mm² receptacle, so the panel part can stay the same across a pack that uses both cable sizes.
Key specifications
| Manufacturer part | GYHF-2-200T-A-G002 |
|---|---|
| Type | Cable plug, the moving half |
| Poles | 2, plus interlock |
| Conductor size | 50 mm² |
| Body | Straight |
| Keying | A |
| Interlock | Yes, first to break |
| Contact protection | Touch proof |
| Screening | EMI shielded |
| Terminals | Supplied |
| Mates with | GYHF-2-200Z-A-G006, the 35 and 50 mm² A keyed receptacle |
| Weight | 0.3 kg |
Features
- Touch proof contact face, so an unmated connector cannot be touched live
- Integrated high voltage interlock that breaks before the power contacts
- EMI shielded, so the screen can be carried through the joint
- A keying physically blocks mating with a B keyed half
- Terminals included
Compatibility
Mates with the A keyed receptacle, GYHF-2-200Z-A-G006, which accepts both 35 mm² and 50 mm². Buy the pair unless you already have the other half.
For EV conversions, energy storage and industrial high voltage runs on 50 mm² cable.
The ratings are set by the whole assembly. If you are working to a specific voltage and continuous current figure, ask us and we will confirm against the manufacturer data rather than have you work from a catalogue number.
In the box
- 1 x straight cable plug, A keyed
- Power terminals to suit 50 mm²
Downloads
A 3D CAD model in STEP format is in the Documents tab.
