35 mm2 HV Connector 2 Way Male
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

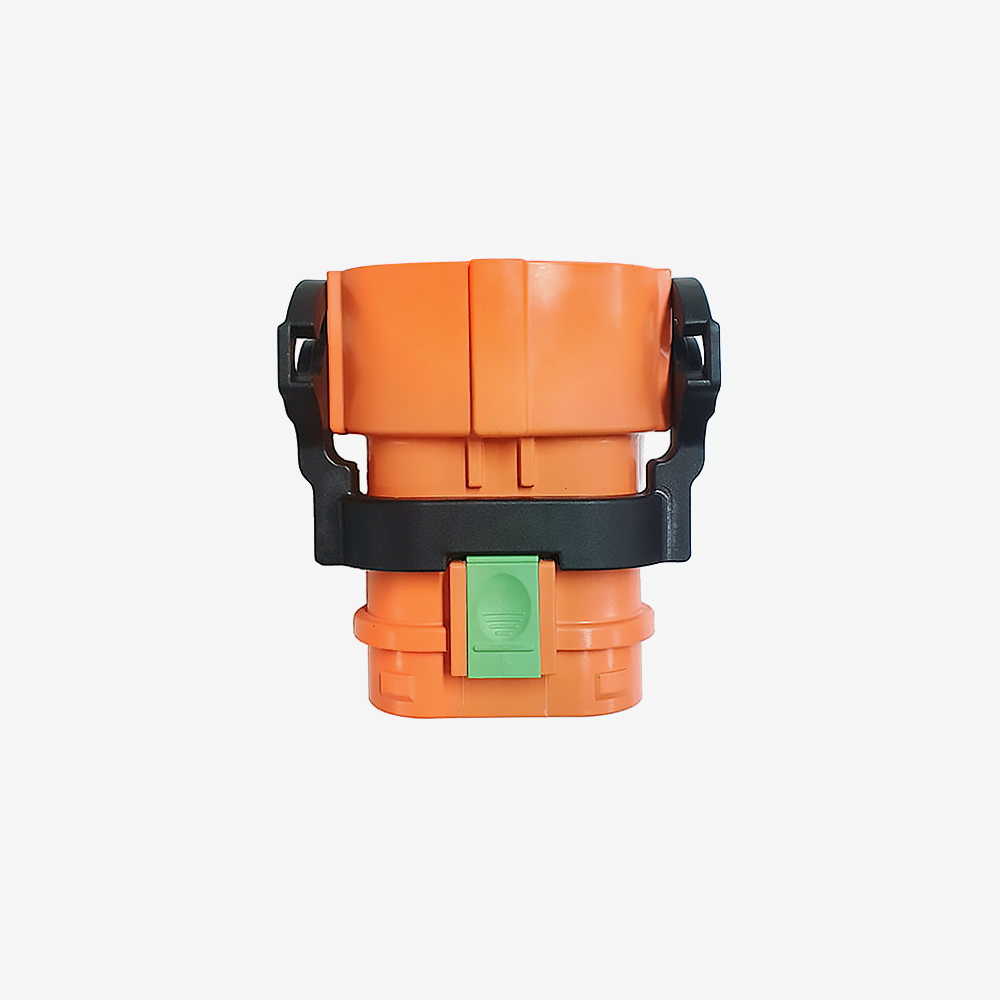

The cable side half of a two pole 35 mm² high voltage connector, A keyed, with terminals supplied. It pushes into the matching panel mounted receptacle and locks there.
It mates with the 35 and 50 mm² receptacle, which is the useful part of this family: the panel side stays the same across a pack that uses both cable sizes, and the plug follows whichever cable the run actually needed.
An assembly manual is published for this connector, and it is worth reading before you start rather than after. High voltage connectors are assembled in a specific order, with specific strip lengths, and the screen termination in particular is easy to get wrong in a way that looks finished.
Key specifications
| Manufacturer part | GYHF-2-200T-A-G003 |
|---|---|
| Type | Cable plug, the moving half |
| Poles | 2 |
| Conductor size | 35 mm² |
| Keying | A |
| Terminals | Supplied |
| Mates with | GYHF-2-200Z-A-G006, the 35 and 50 mm² A keyed receptacle |
| Weight | 0.3 kg |
Features
- Mates with a receptacle that takes both 35 and 50 mm², so the panel part can stay common
- Terminals included
- A keying physically blocks mating with a B keyed half
- Secure locking mechanism, for a joint that will not vibrate apart
- Assembly manual published, with the strip lengths and the build order
Compatibility
Mates with the A keyed receptacle, GYHF-2-200Z-A-G006. Buy the pair unless you already have the other half.
For EV conversions, energy storage and industrial high voltage runs on 35 mm² cable.
The ratings are set by the whole assembly, not this half alone. What the joint carries depends on the receptacle, the terminals and the cable fitted to it. If you are working to a specific voltage and continuous current figure, ask us and we will confirm against the manufacturer data.
In the box
- 1 x cable plug, A keyed
- Power terminals to suit 35 mm²
Downloads
The HV35 assembly manual and a 3D CAD model in STEP format are in the Documents tab. Read the assembly manual before you strip the cable.
