35mm to 50mm HV Connector 2 Way Female
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

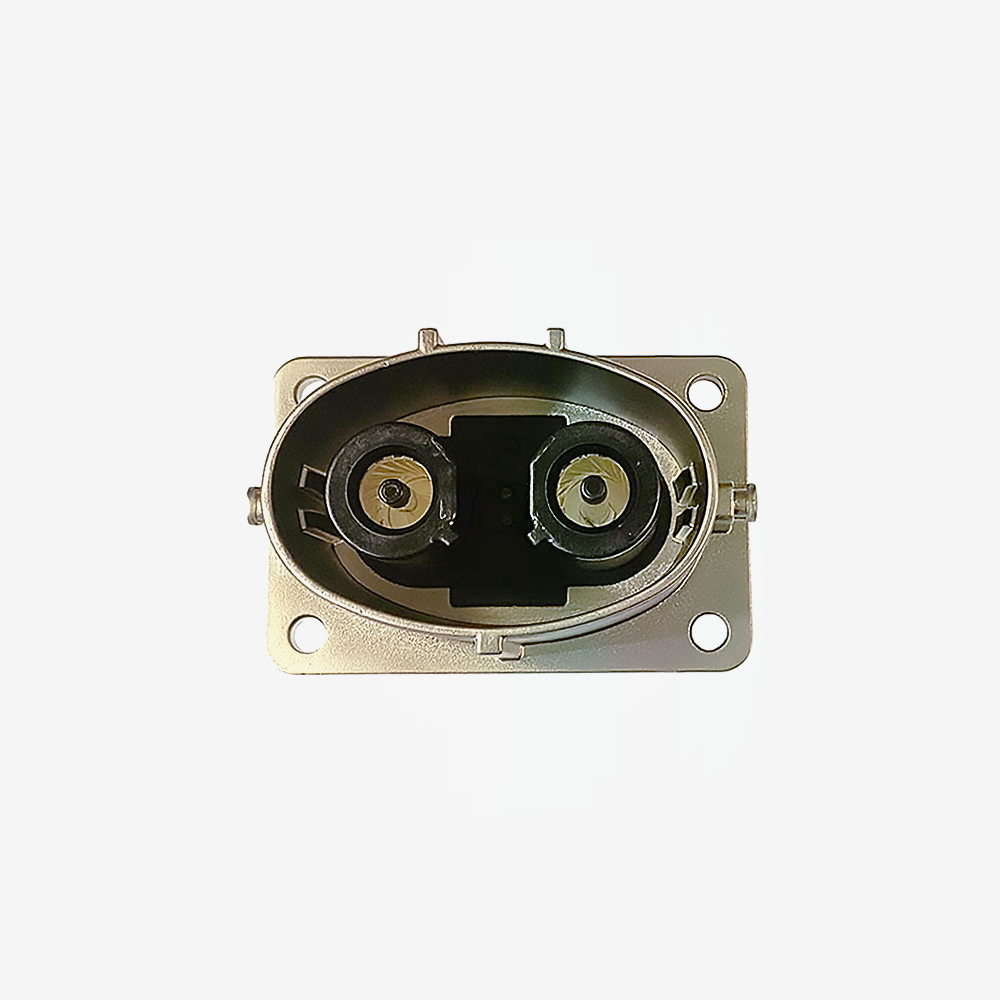

The panel mounting half of a two pole high voltage connector that accepts both 35 mm² and 50 mm² cable. It mounts through an enclosure wall and the matching plug locks into it.
Taking two cable sizes is the useful part. Conversions rarely settle on one conductor size across the whole pack, and a connector that only suits one forces the cable choice rather than following it. This one covers the two sizes most main runs actually use, so the same panel part works whether the run is 35 or 50.
The body is a straight panel mount with threaded fixings, so it becomes part of the enclosure rather than something hanging off it, and it will not shake loose.
Key specifications
| Manufacturer part | GYHF-2-200Z-A-G006 |
|---|---|
| Type | Panel mount receptacle, the fixed half |
| Poles | 2 |
| Conductor size | 35 mm² and 50 mm² |
| Keying | A |
| Mounting | Threaded panel fixings |
| Mates with | GYHF-2-200T-A-G002, the 50 mm² A keyed plug |
| Weight | 0.3 kg |
Features
- Accepts 35 mm² and 50 mm², so the connector does not dictate the cable size
- Threaded panel mounting for a vibration resistant fixing
- A keying, which physically blocks mating with a B keyed half
- Insulated housing rated for high voltage service
Compatibility
Mates with the A keyed plug, GYHF-2-200T-A-G002. Buy the pair unless you already have the other half.
For EV pack enclosures, inverter and charger housings and industrial high voltage distribution.
The ratings are set by the whole assembly, not this half alone. The current a joint like this carries depends on the plug, the terminals and the cable fitted to it. If you are working to a specific voltage and continuous current figure, ask us and we will confirm against the manufacturer data rather than have you work from a catalogue number.
In the box
- 1 x panel mount receptacle, A keyed
Downloads
A 3D CAD model in STEP format is in the Documents tab. Use it to check the panel cut out and the clearance behind it.
