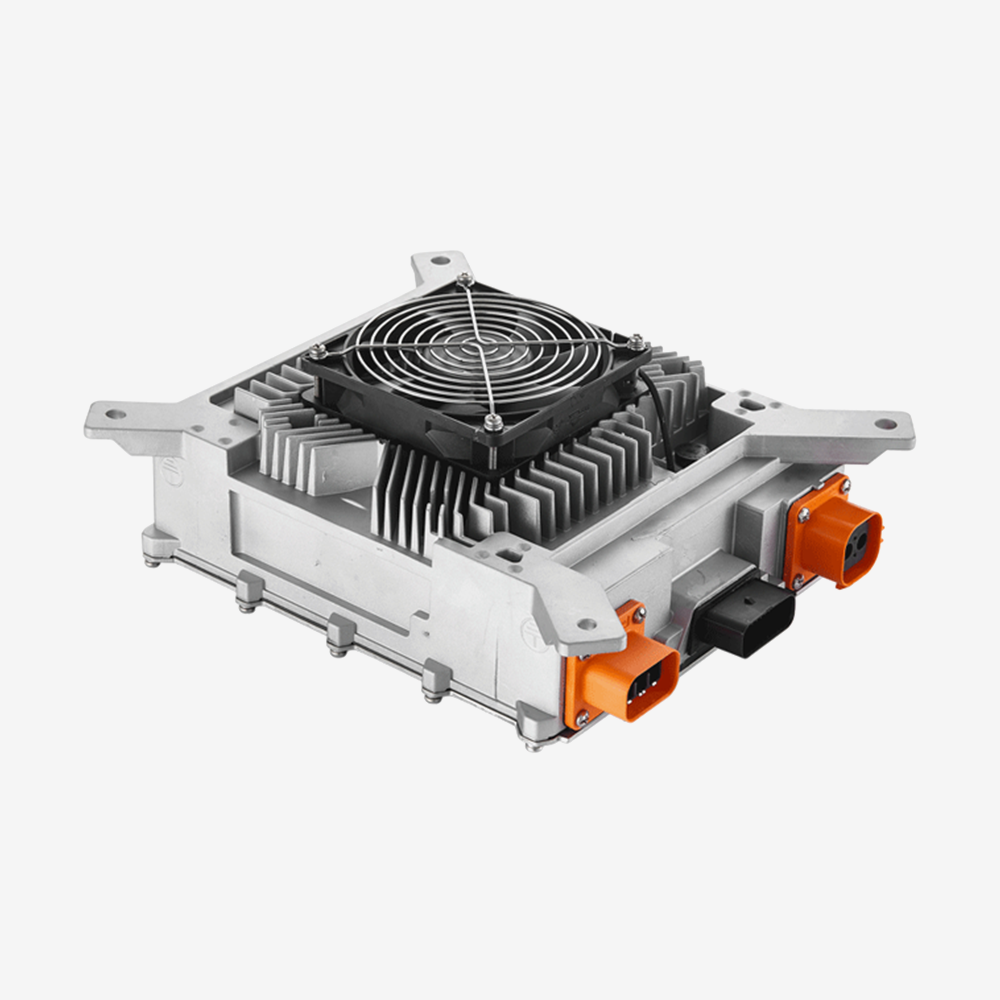

HK-LF-312-20 Onboard EV Charger – 6.6kW | 450V 20A | CANbus | IP67 Rated
The Elcon HK-LF-312-20 Charger is a high-performance 6.6kW onboard lithium battery charger, designed for electric vehicle (EV) conversions, battery-powered industrial vehicles, marine applications, and energy storage systems.
Delivering up to 20 amps of charging current with an output voltage range of 250V to 450V, this fan-cooled charger is ideal for 312V lithium battery packs. It supports CANbus communication with selectable 250 kbps or 500 kbps baud rates, allowing seamless integration with battery management systems (BMS).
With its IP67 waterproof rating, advanced shock and vibration resistance, and wide operating temperature range (–40°C to +65°C), the HK-LF-312-20 offers reliable, long-lasting performance in even the most demanding environments.
Key Features
- Output Power: 6.6kW
- Voltage Range: 250V–450V (312V nominal)
- Max Output Current: 20A
- Cooling: Active fan-cooled system
- Communication: CANbus configurable (250 or 500 kbps)
- IP Rating: IP67 waterproof & dustproof
- Operating Temperature: –40°C to +65°C
- Size & Weight: 268.36 × 312.8 × 111.2mm, 7.6kg
- Reliability: Shock and vibration resistant, long service life
| Model | Output Voltage Nominal | Output Voltage Range | Output Current Max | Dimensions (mm) | Net Weight (KG) |
| HK-LF-108-60 | 108V | 65V-140V | 60A | 268.36x312.8x111.2 | 7.6 |
| HK-LF-144-46 | 144V | 90V-195V | 46A | 268.36x312.8x111.2 | 7.6 |
| HK-LF-312-20 | 312V | 250V-450V | 20A | 268.36x312.8x111.2 | 7.6 |
| HK-LF-540-14 | 540V | 350V-680V | 14A | 268.36x312.8x111.2 | 7.6 |
Please let us know if you would like your charger to be 250 kbps or 500 kbps on ordering.
