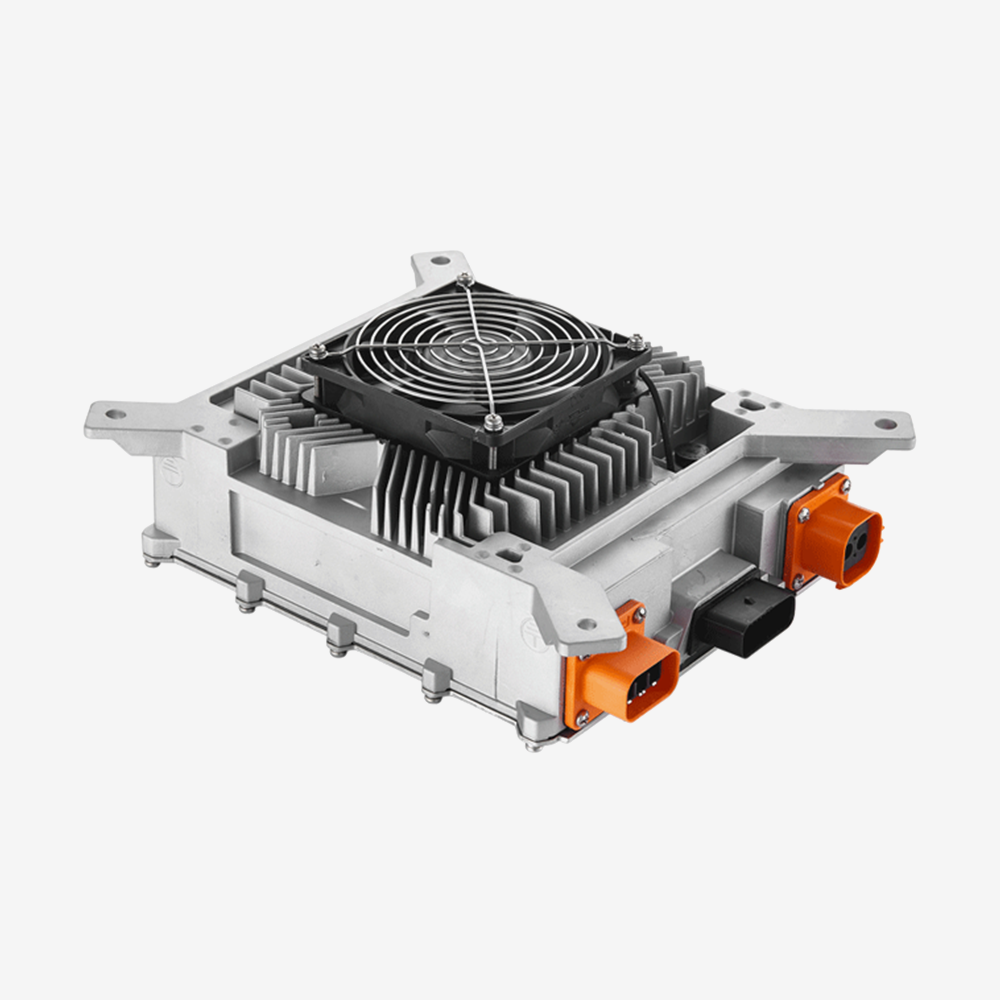

HK-MF-144-23 Charger 3.3kw 144V 23A
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
An onboard battery charger, 3.3 kW, for pack voltages from 90 to 144 volts, delivering up to 23 amps. Fan cooled and sealed to IP67.
An onboard charger is what lets a vehicle be charged from an ordinary supply rather than from a bench power supply in a workshop. It takes mains AC in and produces the controlled DC a lithium pack needs, following a charge profile rather than simply pushing current at it.
Match the charger to the pack, not to the nominal voltage. The figure that matters is the output range: this one covers 90 to 144 volts, and your pack has to sit inside that at both ends. A pack that rises above 144 volts at the top of a charge is outside this charger's range even if its nominal voltage looks comfortable. This one is the largest in the HK-MF range.
CAN control is what makes it work with a BMS. The charger can be configured over CAN at 250 or 500 kbit/s, and more importantly it can be told what to do while charging. A BMS that can command the charger to reduce current or stop is the difference between a pack that is protected and one that relies on the charger's own profile being right.
IP67 and fan cooled means it can be mounted where there is airflow without needing to be inside the cabin, and it does not need plumbing into the coolant system.
Key specifications
| Part | HK-MF-144-23 |
|---|---|
| Type | Onboard battery charger |
| Output power | 3.3 kW |
| Nominal output voltage | 144 V |
| Output voltage range | 90 V to 144 V |
| Maximum output current | 23 A |
| Cooling | Active fan |
| Communication | CAN bus, 250 or 500 kbit/s configurable |
| Ingress protection | IP67 |
| Operating temperature | -40 °C to +65 °C |
| Dimensions | 264.5 x 252 x 100 mm |
| Weight | 4.8 kg |
Features
- 3.3 kW in a sealed, fan cooled case that needs no coolant plumbing
- CAN configurable, and controllable by a BMS during a charge
- IP67, so it can be mounted outside the cabin
- Wide operating temperature range
- Shock and vibration resistant, built for vehicle service
Compatibility
For lithium packs whose voltage sits inside 90 to 144 volts throughout charge and discharge.
Other models in this range cover other pack voltages. The HK-MF series covers 48 V, 72 V, 108 V and 144 V nominal. If your pack is smaller, the HK-H series covers 66 V to 132 V at 1.8 kW.
Check the charge profile matches your chemistry. A charger configured for one lithium chemistry will not charge another correctly, and getting that wrong damages cells rather than simply charging slowly. Tell us your cell chemistry and pack configuration and we will confirm the configuration before you order.
It needs a BMS. A charger following a profile with nothing watching the individual cells is charging blind.
In the box
- 1 x HK-MF-144-23 onboard charger
Downloads
The charger datasheet is in the Documents tab, with the full charge profile, the CAN message specification and the mounting dimensions.
