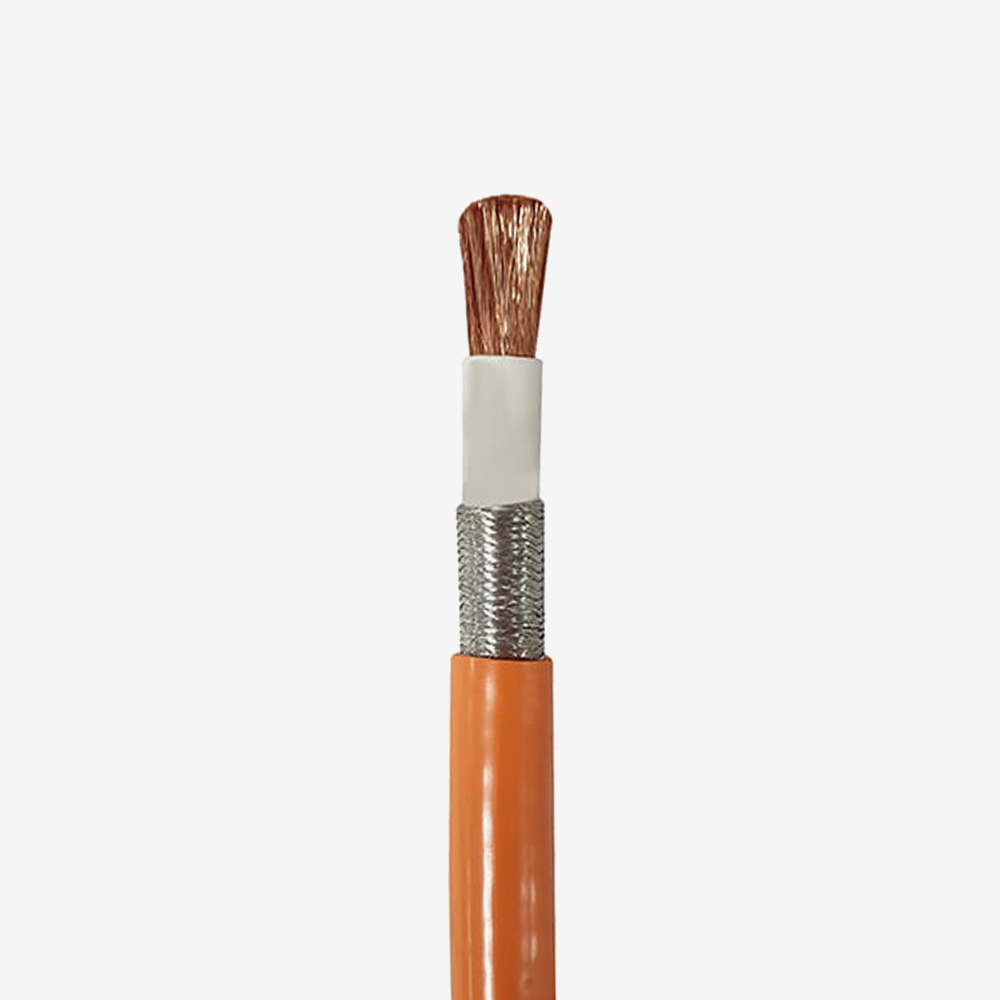

50 mm2 Shielded HV Cable Safety Orange 450/700v
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
Shielded 50 mm2 high voltage cable in safety orange, rated 450 V AC and 700 V DC. Sold by the metre and cut as one continuous length, so a 5 metre order arrives as a single 5 metre piece rather than offcuts.
High voltage cable in a conversion has three jobs beyond carrying current. It has to be obviously high voltage to anyone who opens the vehicle, which is what the orange sheath is for. It has to contain the electrical noise a motor inverter makes, which is what the braided screen is for, and without it the noise finds its way into the CAN bus and the low voltage electronics. And it has to survive an engine bay for the life of the vehicle, which is why the sheath is rated for abrasion, heat and chemical exposure. At 50 mm2 this is the size most conversions use for the main pack to inverter runs where the peak current sits below what 70 mm2 is needed for.
Key specifications
| Manufacturer part | HVC50MM |
|---|---|
| Conductor size | 50 mm2 |
| Voltage rating | 450 V AC, 700 V DC |
| Screening | Braided shield for EMI containment |
| Insulation | Double layer, over the screen |
| Conductor design | Stranded bare copper |
| Conductor resistance | Maximum 0.368 milliohm per metre at 20 degrees C |
| Core diameter | 13.8 mm |
| Outer diameter | 17.5 mm |
| Minimum bend radius | 6 times the cable diameter, about 105 mm |
| Operating temperature | Minus 20 to plus 70 degrees C |
| Standard | DIN EN 13602 |
| Sheath colour | Safety orange, the standard high voltage identification |
| Environment | Resistant to abrasion, heat and chemical exposure |
| Sold by | The metre, supplied as one continuous length |
| Documentation | Technical datasheet in the Documents tab |
Features
- Braided screen keeps inverter noise inside the cable instead of in your CAN bus and instrumentation
- Safety orange sheath identifies the cable as high voltage to anyone working on the vehicle, which is a requirement and not a style choice
- Double insulated over the screen, so a chafed outer sheath does not immediately mean an exposed conductor
- 17.5 mm outside diameter and a minimum bend radius of about 105 mm, which are the two figures that decide whether a route is possible
- Cut as one continuous length to the quantity ordered, so a run is a run rather than a joint in the middle
Compatibility
Terminate it with copper lugs crimped with a hydraulic crimper, then seal the joint with adhesive lined heat shrink. For a connectorised run, the matching 50 mm2 HV connector takes this cable directly.
We stock the same cable in seven sizes, so a build can use one cable type throughout and change only the gauge:
| 1 mm2 | 60 V AC / 600 V DC, unshielded |
|---|---|
| 4 mm2 | 450 V AC / 700 V DC, shielded |
| 6 mm2 | 450 V AC / 700 V DC, shielded |
| 16 mm2 | 450 V AC / 700 V DC, shielded |
| 35 mm2 | 450 V AC / 700 V DC, shielded |
| 50 mm2 | 450 V AC / 700 V DC, shielded, this cable |
| 70 mm2 | 450 V AC / 700 V DC, shielded |
Size the conductor for the continuous current the run will carry and the length of the run, not for the peak alone. If you are unsure, tell us the pack voltage, the motor and the run length and we will work it through with you.
In the box
- Cable, cut to the number of metres ordered
Lugs, heat shrink, glands and connectors are ordered separately.
Downloads
The technical datasheet for this cable is in the Documents tab above.
