Hyper 9 Motor And Controller and Accessories - HV 144 V
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

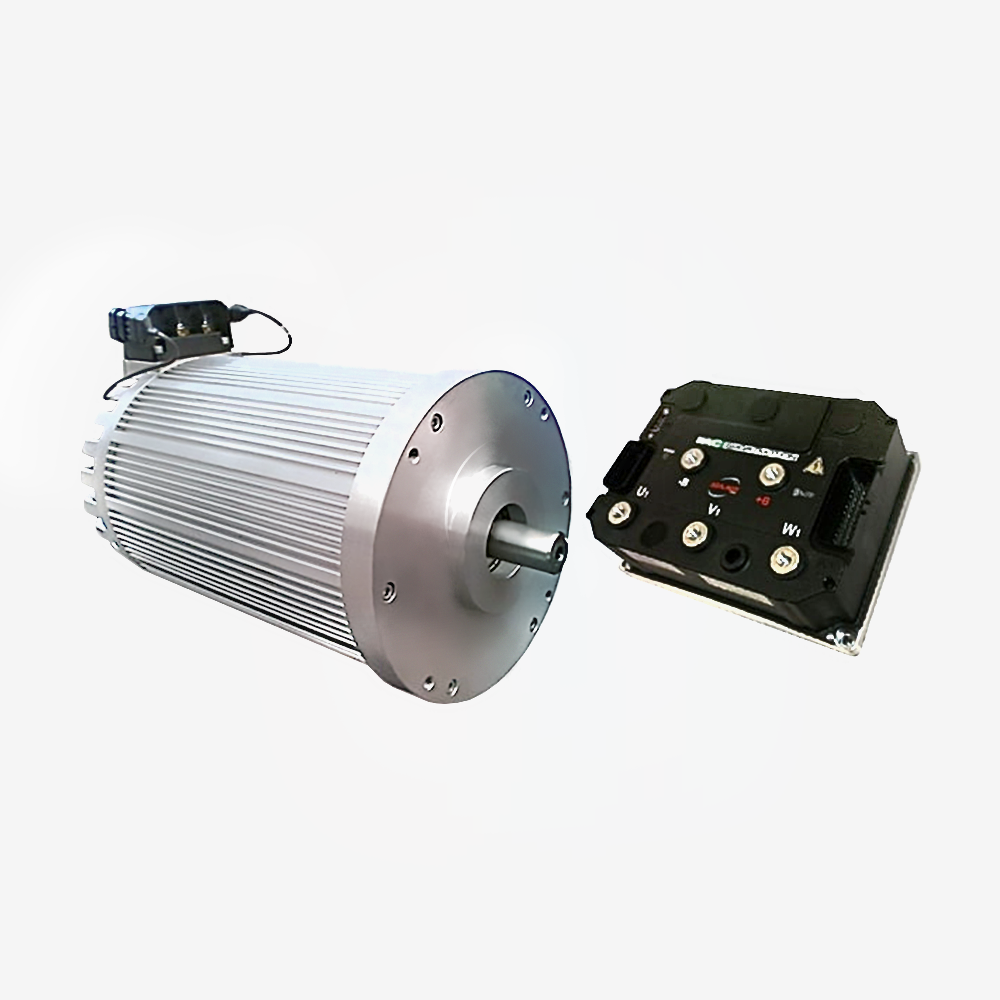

NetGain Hyper 9 HV Motor & SME AC-X144 Controller Kit – High Voltage EV Powertrain Solution
Upgrade your electric vehicle conversion with the NetGain Hyper 9 HV Motor and SME AC-X144 Controller Kit, a cutting-edge, high-performance EV drive system designed for light to medium-weight vehicles. Built on the advanced Synchronous Reluctance Internal Permanent Magnet (SRIPM) motor platform, this system delivers exceptional torque, high efficiency, and compact design.
Whether you're converting a classic car, off-road vehicle, or light commercial platform, the Hyper 9 HV offers industry-leading electric motor technology, simplified installation, and powerful customization tools for a seamless conversion experience.
What’s Included in the Hyper 9 HV Kit:
- Hyper 9 HV SRIPM Motor
- SME AC-X144 Controller / Inverter
- Low Voltage Wiring Harness
- Main Contactor
Key Features:
- High Efficiency SRIPM Technology: Up to 95% efficiency with reduced heat generation thanks to a cage-less rotor design
- Outstanding Torque: Rated at 220 Nm (162 lb-ft), outperforming similarly sized AC induction motors
- Compact and Lightweight: Just 54.5 kg, with a 22.9 cm diameter and 35 cm case length
- High Voltage Operation: Supports 120V–180V DC input with a peak current up to 500 Amps
- Advanced Controller: Fully programmable SME AC-X144 inverter with SmartView software, customizable I/O, and regenerative braking support
- Precision Sensors: Built-in encoder and temperature sensors ensure reliable real-time motor monitoring
- Thermal Management: External heatsink cooling, withstanding temperatures up to 150°C
- High-Speed Capability: Operates up to 8,000 RPM with enhanced field-weakening performance (+50% power up to 5x nominal speed)
- Expandable Architecture: Multiple motors can be linked for heavy-duty or racing applications (special order)
Hyper 9 HV – Technical Specifications
- Motor Type: 3-Phase SRIPM (Synchronous Reluctance Internal Permanent Magnet AC)
- Controller: SME AC-X144 Inverter
- Rated Power: 120 HP (89.5 kW)
- Rated Torque: 220 Nm
- Max Voltage: 180 V DC
- Max RPM: 8,000 RPM
- Max Current: 500 A (peak)
- Efficiency: Up to 94–95%
- Weight: 54.5 kg
- Mounting Face: B-Face (3/8-16 UNC bolts)
- Shaft Diameter: 28.575 mm (1.125”) with 6.35 mm keyway
- Terminal Stud Size: M8
- Cooling System: External heatsink
- Software Interface: PC-based (SmartView)
- Sensors: Integrated encoder & temperature sensor
