Hyper 9 Motor Mounting Bracket
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

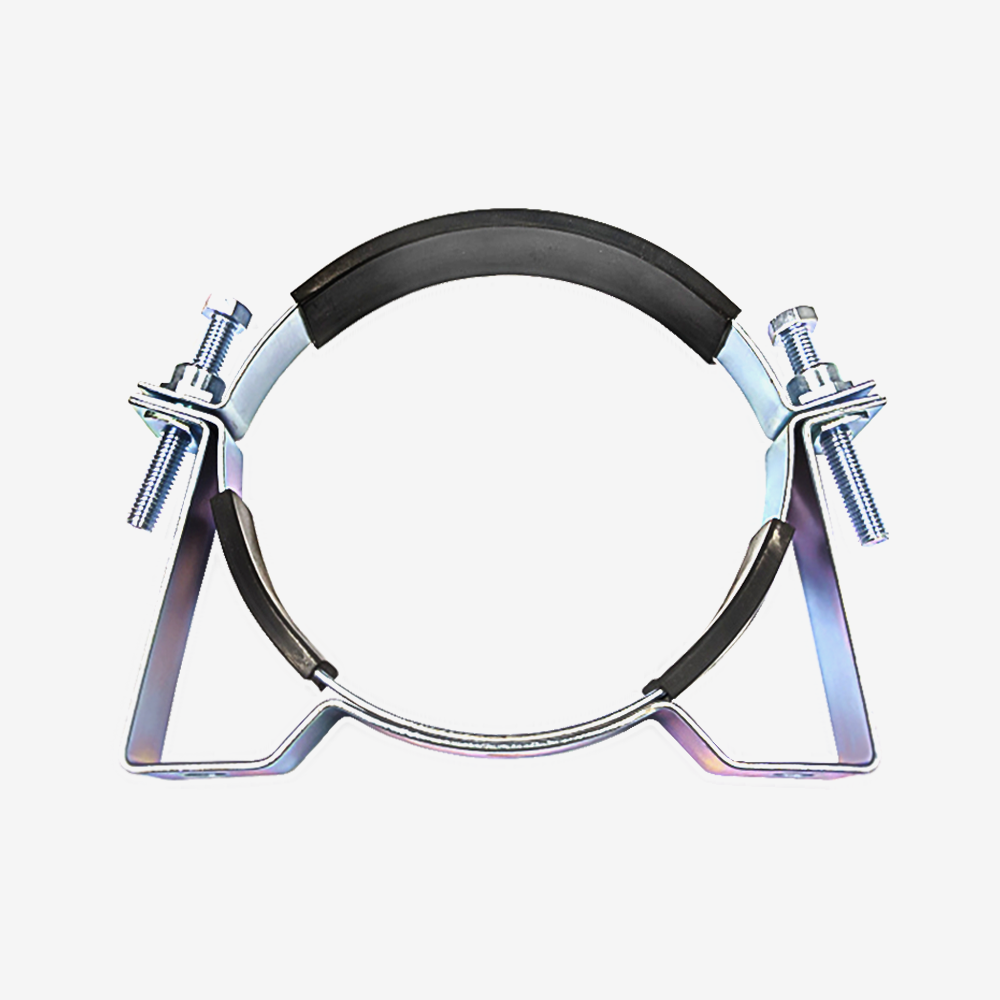

A steel cradle that clamps around a Hyper 9 or Hyper 9 HV motor and gives it mounting points, with rubber inserts between the bracket and the motor body. Zinc plated, for a 220 mm motor diameter.
The Hyper 9 has no mounting feet. It is a smooth cylindrical case, which is excellent for packaging and unhelpful the moment you have to attach it to a car. A cradle is the usual answer, and it has to do two things: hold the motor without distorting the case, and not transmit every vibration into the shell.
The rubber inserts are the part that matters. An electric motor clamped in bare steel turns the bracket into a sounding board, and a conversion that is otherwise silent ends up with a drone through the floor. The inserts break that path and they also take up the small dimensional differences that stop a rigid clamp sitting evenly on the case.
Key specifications
| Part | HYPER9MOUNT |
|---|---|
| Type | Motor mounting cradle |
| Fits | Hyper 9 and Hyper 9 HV |
| Inner diameter | 220 mm |
| Material | Steel |
| Finish | Clear zinc plated |
| Isolation | Rubber dampening inserts |
| Weight | 1.45 kg |
Features
- Machined for the Hyper 9's 220 mm case, so the clamp sits evenly rather than on two points
- Rubber inserts isolate motor noise from the chassis
- Clear zinc plating for corrosion resistance in an engine bay
- Practical mounting points that suit fabricating into most chassis
- Steel, so it can be welded or bolted into your own subframe
Compatibility
For the Hyper 9 and Hyper 9 HV motors, which share the 220 mm case diameter.
It will suit any other motor of exactly 220 mm, but check the case length and the position of your mounting loads before assuming it.
This is a cradle, not a complete mount. It gives the motor something to be held by. Getting it into your car still means fabricating or adapting the structure the cradle bolts to, and that structure has to carry drive torque as well as the motor's weight.
In the box
- 1 x motor mounting cradle
- Rubber dampening inserts
Downloads
No drawing is published for this bracket. If you need the mounting hole positions before you start fabricating, contact us and we will send them.
