Hyper 9 Motor and X1 Controller System

https://shop.fellten.com/web/image/product.template/12962/image_1920?unique=62812f6

£ 3,709.98 3709.98 GBP £ 4,637.47

£ 4,637.47


    This combination does not exist.

    Terms and Conditions

    Orders Dispatched Within 24 hours  - Excluding Weekends and Bank Holidays.

    Worldwide Shipping
    30 Days Return
    Fast Delivery


    Share :

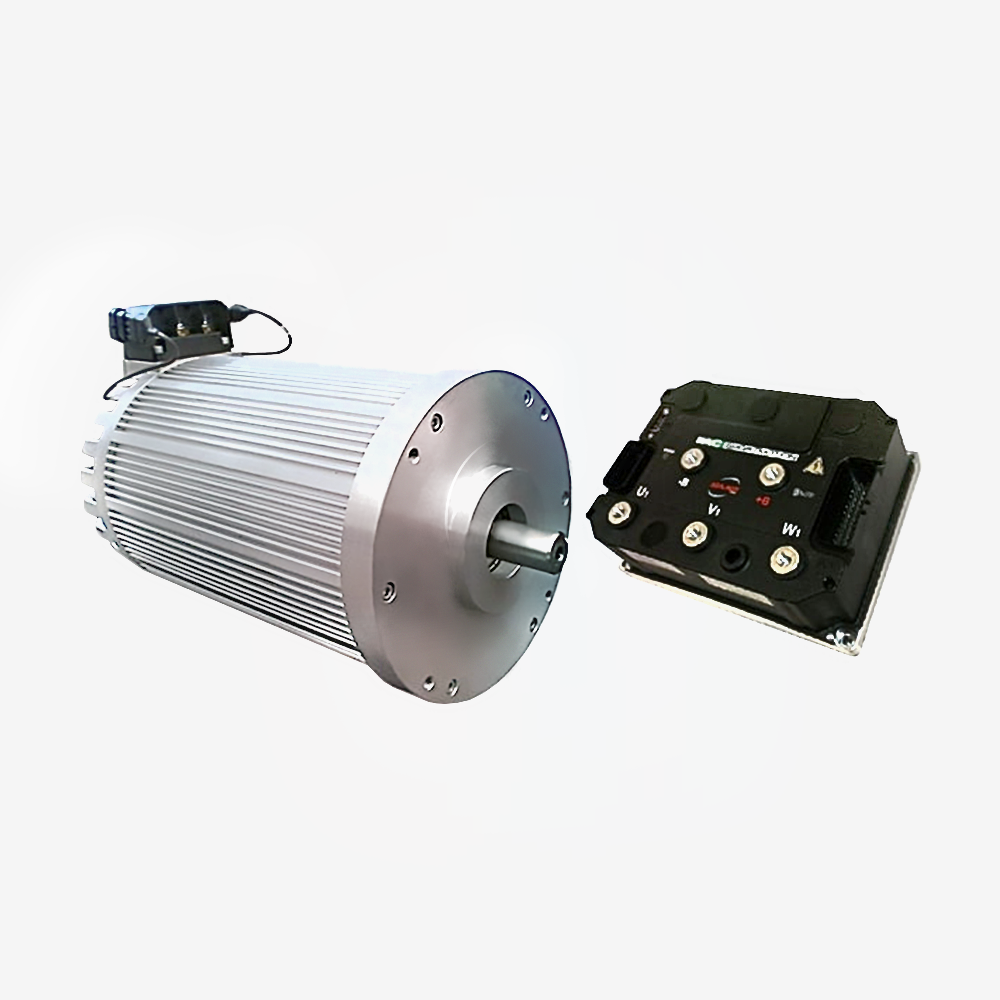

    NetGain Hyper 9 Motor & SME AC-X1 Controller Kit

    The Hyper 9 is a 3 Phase AC, Synchronous Reluctance Internal Permanent Magnet (SRIPM) Motor, and it is powered/ Controlled by the SME Synchronous X1 Inverter.

    The controller is a self-contained unit perfect for all conversions be it DIY or EV conversion shops. With it integrated software set up of the system to your specifications is very easy.

    The NetGain Hyper 9 is the ideal power-train for any light to mid-weight Vehicles. You can combine multiple systems for heavy-weight and racing vehicles by linking one motor onto the other but this is a special order product.

    Its Synchronous Reluctance Internal Permanent Magnet (SRIPM) platform delivers outstanding torque and efficiency, generating higher power per kg.

    The Hyper 9 kit includes the following:

    – 100V Brushless Hyper 9 Motor
    – SME AC-X1 Controller / Inverter
    – Low Voltage Wire Harness
    – Main Contactor

    Spec:

    – 3 Phase SRIPM Motor and SME Controller/Inverter
    – DC input voltage range 55V - 120V and current up to 750Amps max
    – Brushless Motor
    – Cage less Rotor – Higher Efficiency, Low Heat
    – No Rotor Slip
    – Up to 95% Efficiency!
    – Higher torque than similar sized AC Induction motors
    – Astounding performance in field weakening area with +50% power up to 5 times nominal speed
    – Ultra compact controller
    – Fully customisable controller I/O
    – Extensive program customization from PC with Smart view Software
    – Robust and Reliable

    Motor Face: B-Face
    Motor Diameter: 22.9 cm
    Motor Case Length: 35 cm
    Motor Shaft Length: 5.08 cm
    Motor Shaft to End Length: 40 cm
    Woodruff Key – 6,35 35mm Length.
    B Face Bolts are 3/8-16 UNC
    Motor Type: Permanent Magnet Synchronous Reluctance AC
    Weight: 54.5 Kgs
    Max Voltage Input: 132V DC
    Terminal Stud Size: M8
    Integrated Sensors: Encoder and Temperature
    Rated Torque: 234.5 Nm
    Rated Power: 120 HP
    Max RPM: 8,000
    RPM Sensor: Yes
    Drive End Shaft: 28.575 mm with 6.35 mm Keyway
    Max Efficiency: 0.94
    Thermal Cooling: External Heatsink
    Max Temperature: 150 Degrees Celsius



    HyPer_9_IS_User_Manual_REV09.pdf
    Download
    Hyper9 Specification Sheet.pdf
    Download
    Hyper9 Wiring Diagram.pdf
    Download
    Hyper9 Chart.pdf
    Download
    Hyper9 108V Continuous Performance Chart.pdf
    Download
