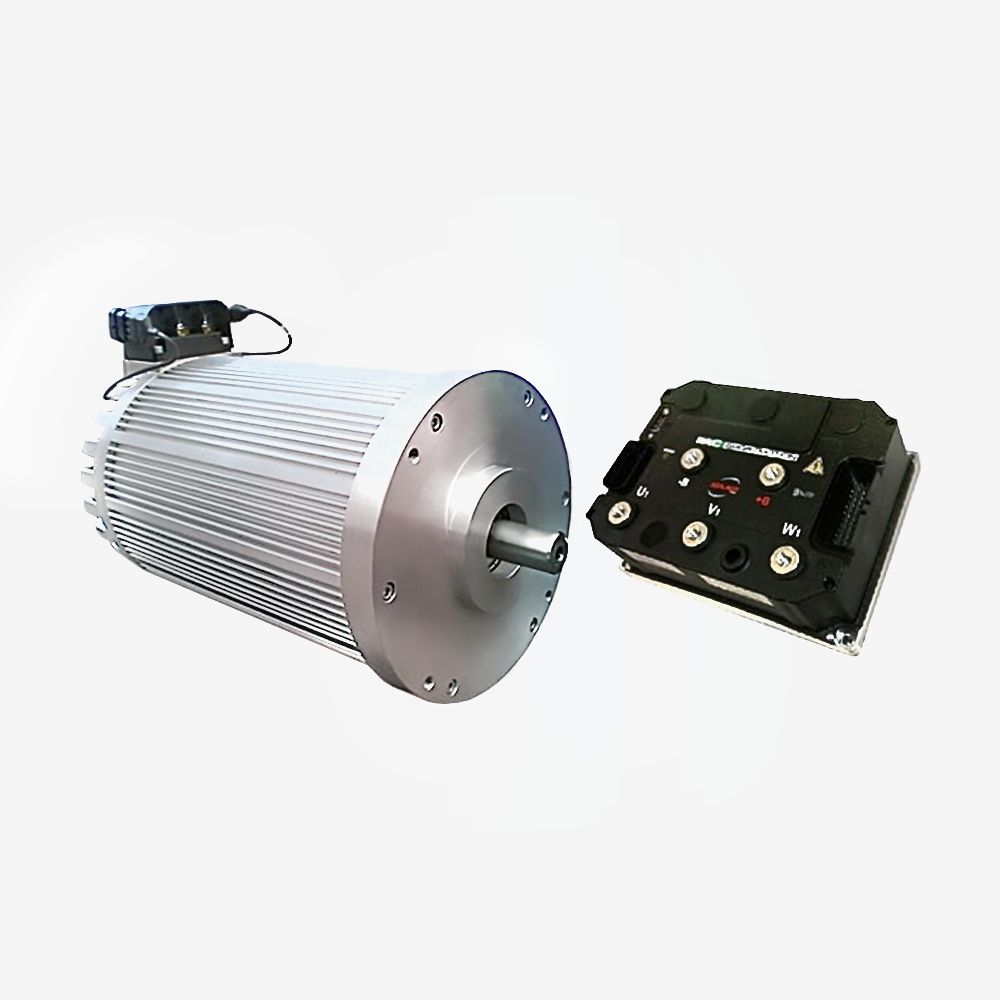

A complete EV drivetrain: the NetGain Hyper 9 motor and the SME AC-X1 controller, matched as a system. Around 120 horsepower, for light to mid weight conversions.
Buying a motor and a controller separately is where conversions go wrong. The two have to agree on voltage, current, the resolver interface, the cooling arrangement and the control strategy, and a motor that works and a controller that works do not automatically make a drivetrain that works. A matched kit removes every one of those decisions.
The Hyper 9 is a synchronous reluctance internal permanent magnet motor, which is a mouthful for a design that combines two ways of producing torque. It gets efficiency and a wide constant power band from the reluctance side and torque density from the magnets, which is why it has become one of the standard choices for light and medium weight conversions rather than a specialist option.
The AC-X1 is the standard voltage controller, paired here with the 100 V motor. If your pack is in the higher voltage range, the HV version of this kit with the AC-X144 controller is the one to look at: higher pack voltage means lower current for the same power, and therefore smaller cables, smaller contactors and less heat.
It is configured from a laptop through SmartView, so torque, regeneration and pedal response are calibrated to the vehicle rather than fixed.
Key specifications
| Part | HYPER9X1KIT |
|---|---|
| Motor | NetGain Hyper 9, 100 V brushless 3 phase |
| Motor type | Synchronous reluctance internal permanent magnet, SRIPM |
| Controller | SME AC-X1 |
| Output | Around 120 hp |
| Drive end shaft | 28.575 mm with a 6.35 mm keyway |
| Key | Woodruff, 6.35 mm x 35 mm |
| Terminal studs | M8 |
| Motor weight | 54.5 kg |
| Configuration | PC based, through SmartView |
| Kit weight | 90 kg |
Features
- Motor and controller matched as a system, so there is nothing to specify or reconcile
- SRIPM design, with efficiency and a wide constant power band as well as torque density
- PC configurable through SmartView, so torque and regeneration suit the vehicle
- Published shaft and keyway dimensions, so a coupling can be designed before delivery
- The most widely used conversion drivetrain in its class, so support and knowledge are available
Compatibility
For light to mid weight vehicle conversions running a standard voltage pack.
You will also need an adaptor plate and a coupling to join the motor to your gearbox. We make plates for common applications, including the air cooled VW Beetle transaxle, and the Hyper 9 motor cradle is the matching mount.
For a high voltage pack, the HV kit with the AC-X144 controller is the alternative.
Talk to us before ordering. At this price, and with the rest of the build depending on it, confirming the vehicle, the target pack voltage and the gearbox first is worth doing.
In the box
- 1 x NetGain Hyper 9 motor, 100 V
- 1 x SME AC-X1 controller
- Accessories, contents list on request
Downloads
The Hyper 9 continuous performance data, the motor engineering drawing and the X1 controller engineering drawing are in the Documents tab. Use the drawings to plan the mounting and the coupling before delivery.
