LG Energy Solution E78 Battery Module – 44V, 156Ah, 6.85kWh
Genuine LG Energy Solution E78 battery module as fitted to the Volkswagen Group MEB platform (ID.3, ID.4, ID. Buzz, Skoda Enyaq, Audi Q4 e-tron and others). Manufactured at LG's Wroclaw facility in Poland, these are current-generation, automotive-grade NMC modules offering outstanding energy density, proven reliability and full transport certification.
Each module contains 24 LG E78 pouch cells in a 12S2P configuration, delivering 156Ah at a nominal 44.04V for 6.85kWh of energy in a compact, fully enclosed aluminium housing. The robust cast end frames incorporate mounting points and threaded terminal blocks, making the module straightforward to integrate into series strings for EV conversions, marine propulsion and stationary energy storage.
Key Features
- Genuine LG Energy Solution automotive-grade module, made in Poland
- High energy density NMC pouch cell chemistry
- 6.85kWh per module in a compact, low-profile package

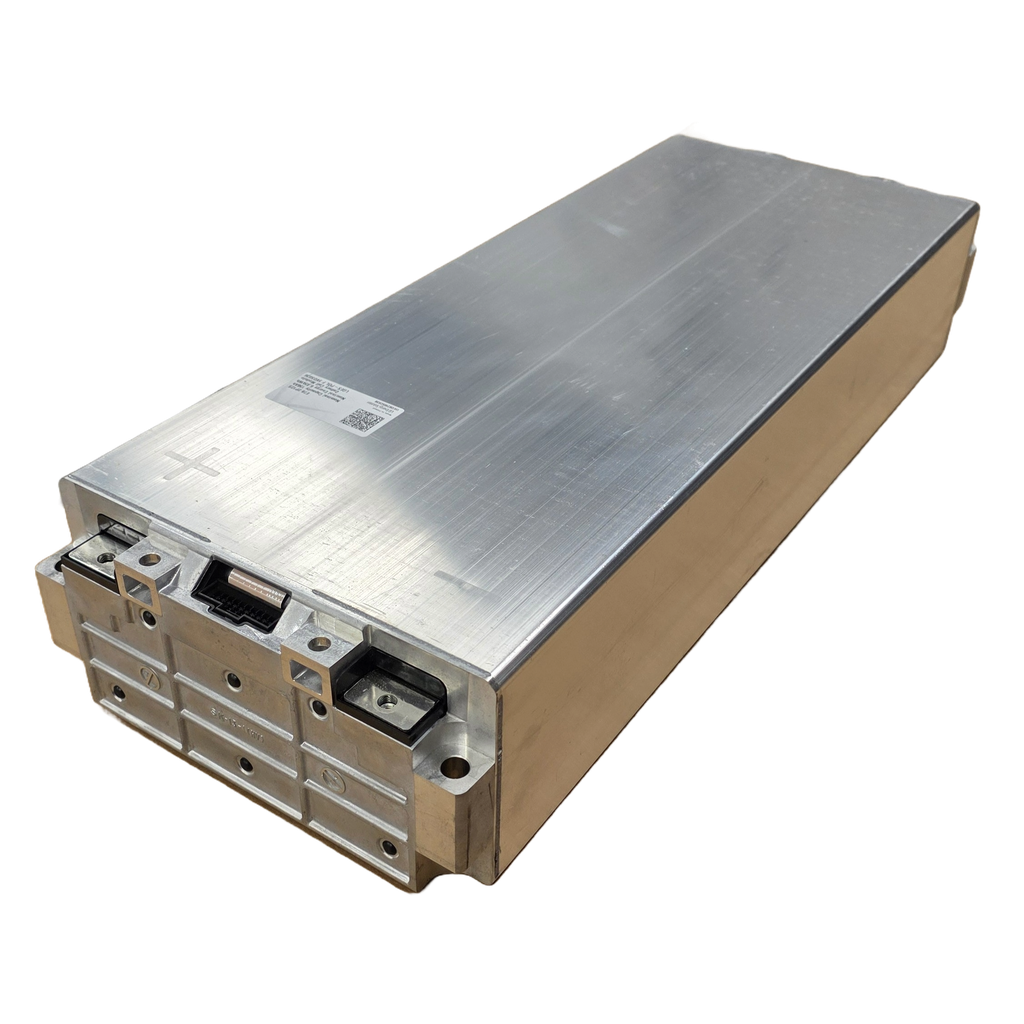

- Fully enclosed aluminium casing with cast structural end frames

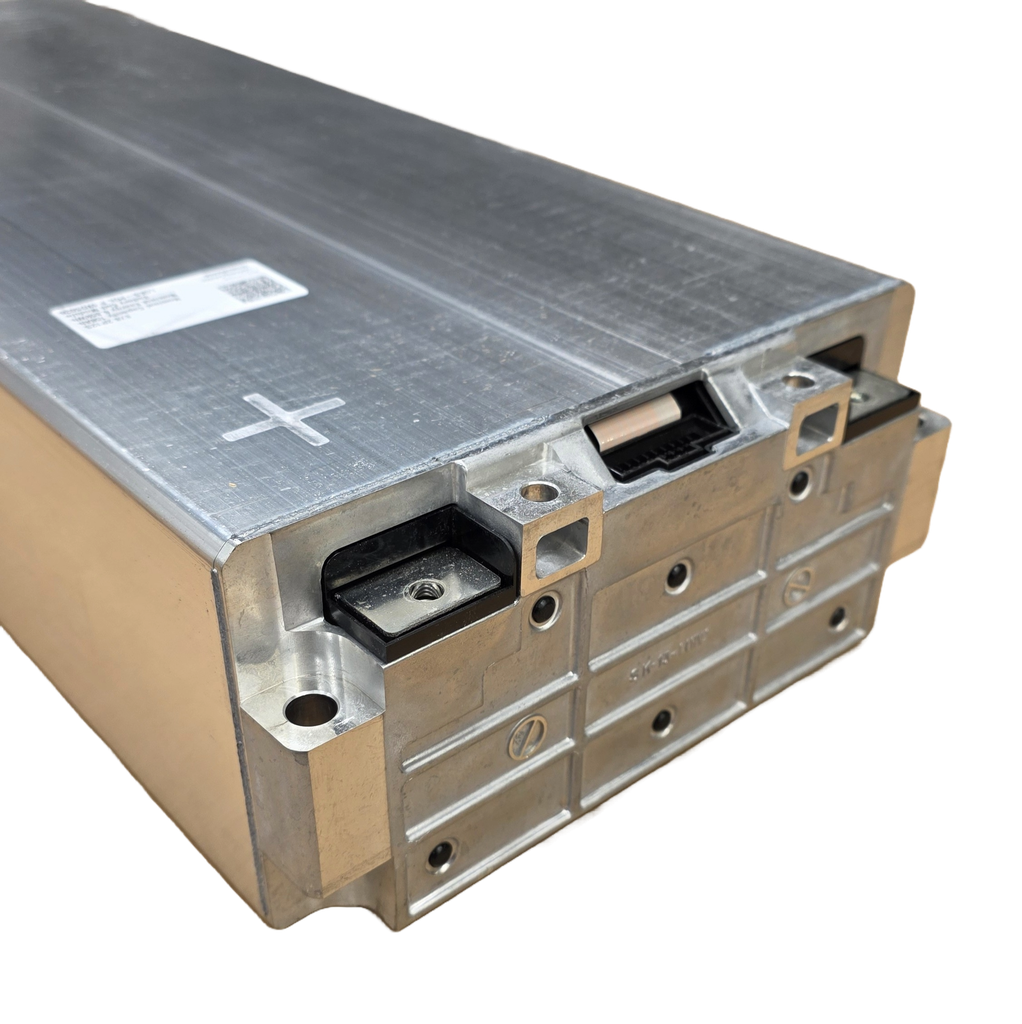

- Threaded M6 terminal blocks with clear polarity marking

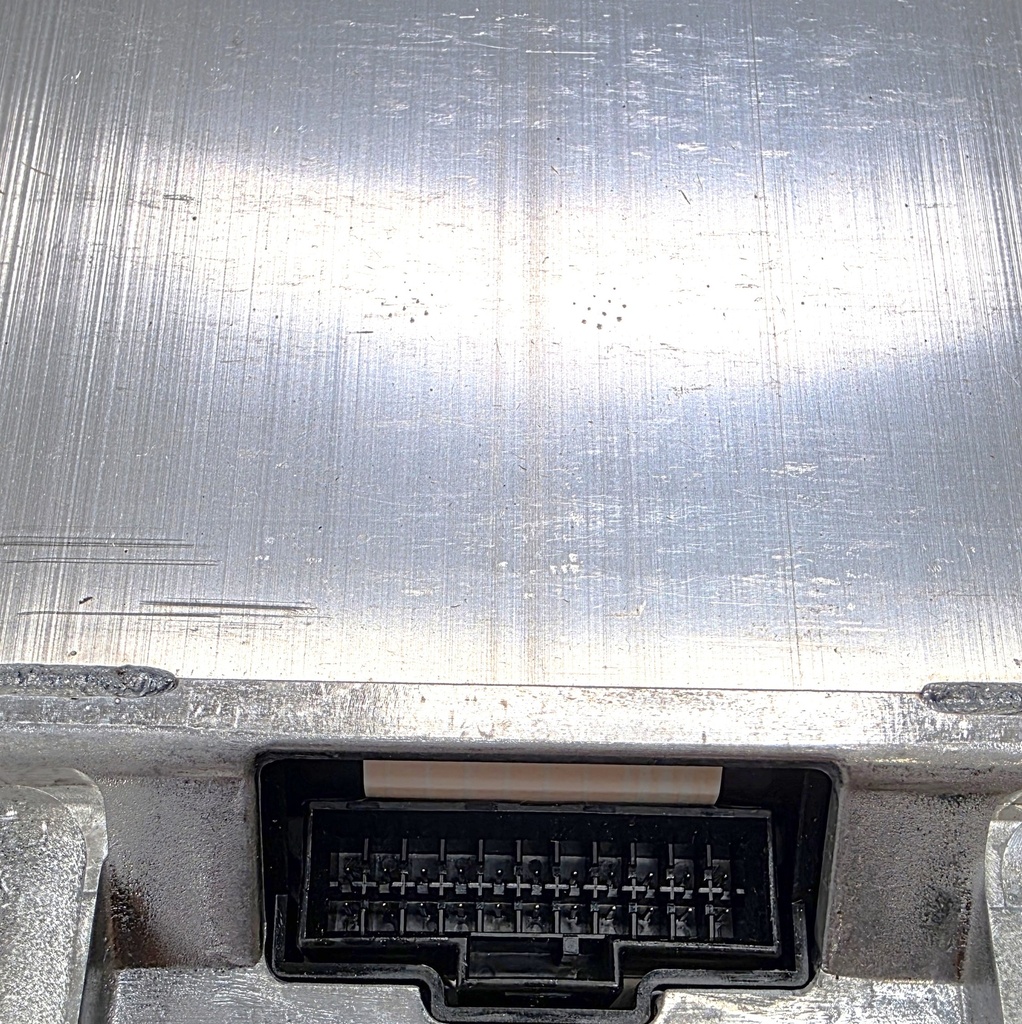

- Integrated low-voltage connector providing cell voltage taps and temperature sensing for BMS integration
- Designed for cold-plate (base) cooling in high-power applications
- Easily configured in series: 2 modules for 88V systems, 8 modules for 350V-class packs, 12 modules for 400V-class packs
- UN38.3 certified for transport (test report available)
Specifications
| Manufacturer | LG Energy Solution |
| Model | E78 2P12S (MEB platform) |
| Cell type | LG E78 78Ah NMC pouch cell |
| Configuration | 12S2P (24 cells) |
| Nominal voltage | 44.04V (3.67V per cell group) |
| Voltage range | 30.0V – 50.4V (2.5V – 4.2V per cell group) |
| Nominal capacity | 156Ah |
| Nominal energy | 6.85kWh |
| Weight | Approx. 30.5kg (max. 31.0kg) |
| Cooling | Bottom cold plate (liquid cooled in original application) |
| Certification | UN38.3 tested |
| Country of origin | Poland |
Applications
Ideal for classic and specialist EV conversions, marine electrification, motorsport, off-grid and commercial battery energy storage, and prototype or low-volume vehicle development where automotive-grade cells and documented provenance are essential.
Important Information
- This module is supplied as a component for professional integration. It must be used with an appropriate battery management system monitoring all cell voltages and temperatures. It has no internal protection of its own.
- High-voltage battery systems should only be designed, assembled and installed by suitably trained and competent persons.
- For sustained high-power charge and discharge, adequate thermal management via the module base is required.
- Lithium-ion batteries are classified as UN3480, Class 9 dangerous goods. Shipping is by approved routes only and transit times may vary by destination. Contact us for international shipping quotations.
- UN38.3 test summary and safety data sheet available on request.
