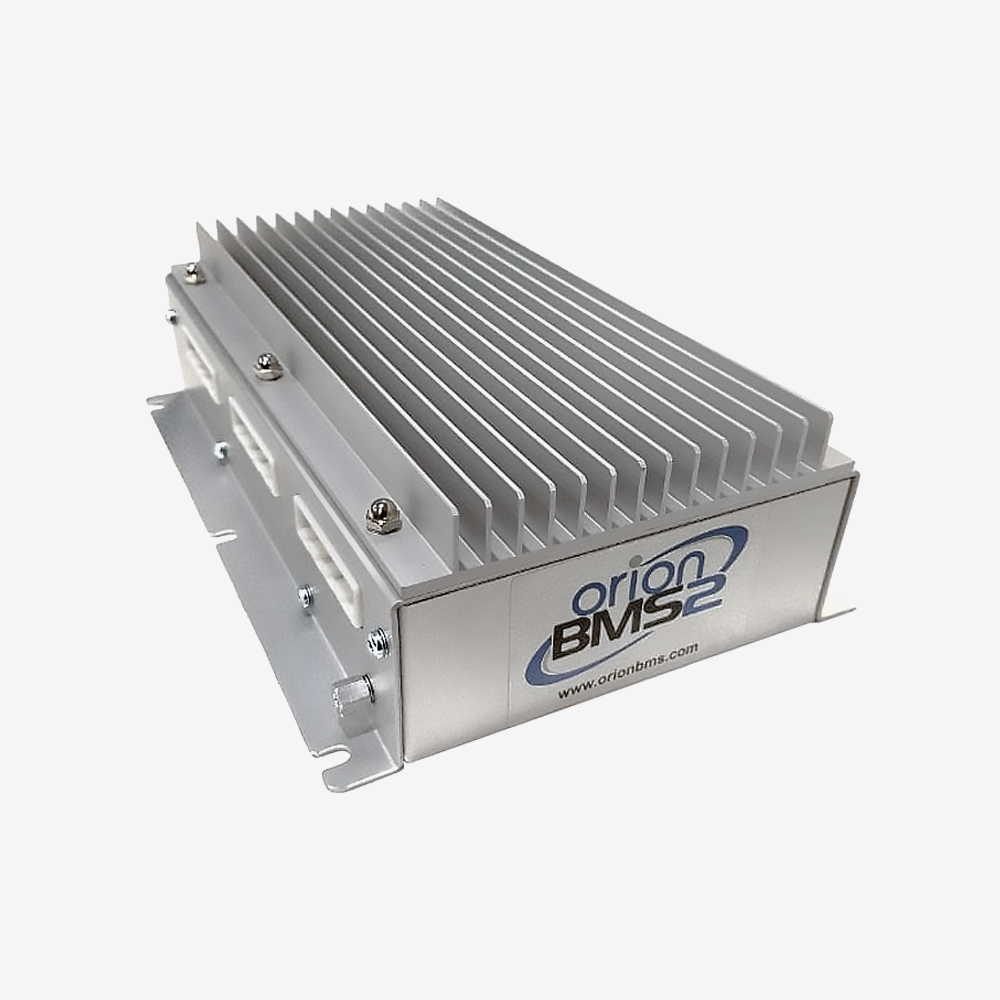

Orion 2 BMS 108 Cell – Battery Management System Kit
Orion BMS Protects and Monitors Li-Ion Battery Cells for EV and Hybrid Applications Including:
- Thermal Management
- Voltage and Current Monitoring and Protection
- Smart Cell Balancing State of Charge via Coulomb Counting
- Internal Resistance Data Advance
- Isolation Fault Protection
Features
- SOC Display with Data Logging
- Cell Tap Wiring Validator
- Thermistor Expansion Module
- Orion BMS Connect (OS X and Windows Compatible, smartphones, tablets)
Accessories Included
- Current Sensor
- Cell Tap Wiring Harness (6ft or 12ft Length options)
- Orion Main I/O Wiring Harness
- Current Harness + 8x2m Thermistors
- User Interface Software (always have the most updated software
Orion BMS Can Bus Adaptor Sold Separately
Whats New
- Roughly 40% lower weight on all models due to the new enclosure design and streamlined (removable) heatsink. Minimum heat dissipation requirements apply.
- Considerable boosts in measurement accuracy and processor speed allow for more advanced calculations and logic.
- Direct hardware support for several popular charging protocols including hardware support for SAE J1772 (directly interfacing with the pilot / proximity lines) and CHAdeMO for DC fast charging.
- Wider input power voltage range (now 12v-24vDC compatible) for better support on heavy vehicles and equipment. The Orion 2 BMS remains fully compatible with 12v applications.
- Ability to directly drive certain contactors on select inputs (bypassing the need for intermediate signal relays in some situations) see supporting documentation for details.
| Current Sensor | 1000A or 800A or 500A or 200A |
| Cell Tap Harness | 6ft or 12ft, 108 Cell |
