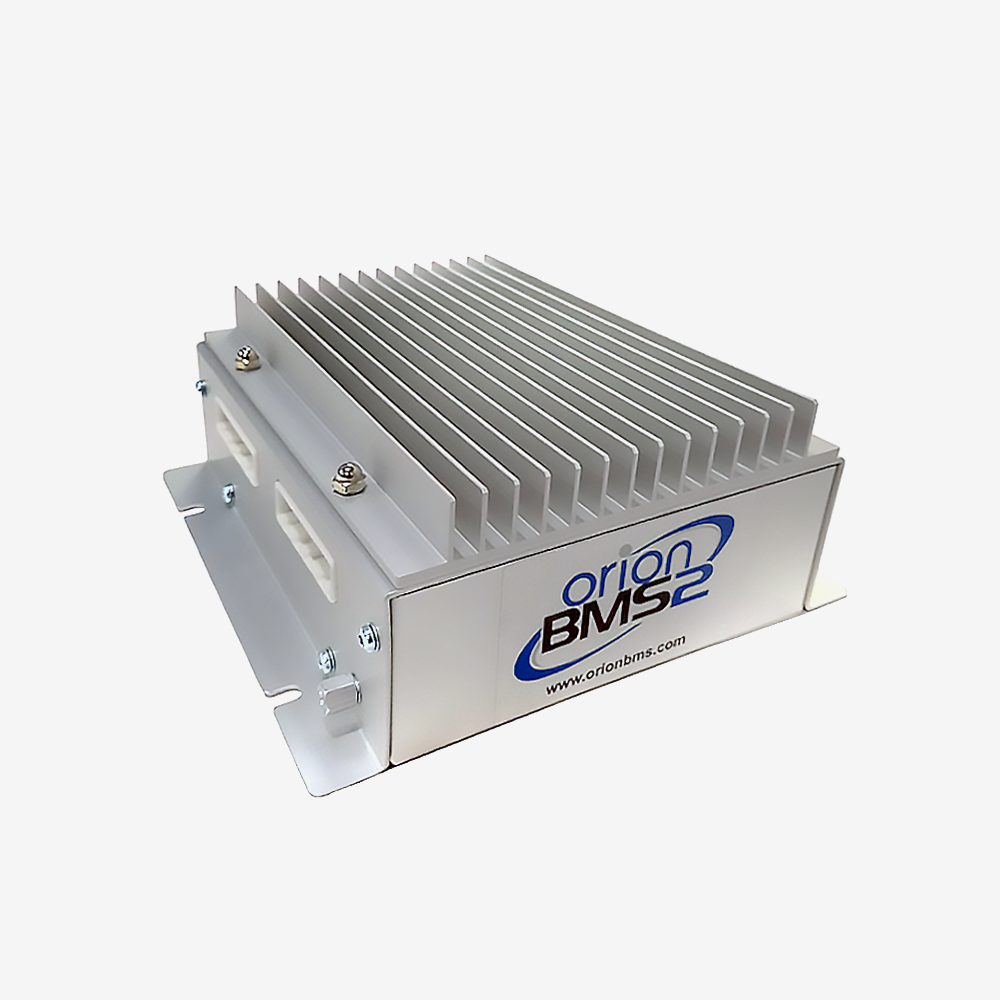

Orion 2 BMS 48 Cell – Battery Management System Kit

The Orion 2 BMS is a state-of-the-art solution designed to monitor and protect lithium-ion battery packs in a wide range of applications, including electric vehicles (EVs), hybrid systems, marine vessels, and stationary energy storage systems. Developed by Ewert Energy Systems, this second-generation BMS offers enhanced performance, scalability, and integration capabilities.

Input Voltage Range

12V to 24V DC

Operating Temperature

-40°C to 80°C

Cell Voltage Measurement Accuracy

±0.25% across full temperature range

Cell Balancing Current

Up to 200 mA per cell

Dimensions and Weight

24–72 Cell Models: 7.15” x 6.72” x 2.37”; 2.50 lbs

84–108 Cell Models: 9.50” x 6.72” x 2.37”; 3.25 lbs

120–180 Cell Models: 15.52” x 6.72” x 2.37”; 4.80 lbs

Certifications

Complies with ISO 7637 Class IV, EN 50498:2010, and UNECE Reg 10.05 standards


Key Features:
  • Cell Monitoring: Supports configurations from 24 to 180 cells in series, with the ability to connect up to two Remote Cell Tap Expansion Modules for larger systems.
  • Voltage and Current Protection: Continuously monitors cell voltages (0.5V to 5.0V) and pack currents to prevent over-voltage, under-voltage, over-current, and under-current conditions.
  • Temperature Management: Includes 8 thermistor inputs for precise temperature monitoring, with optional expansion modules to support up to 800 thermistors.
  • Intelligent Cell Balancing: Employs passive balancing techniques to maintain uniform cell voltages, enhancing battery longevity and performance.
  • State of Charge (SOC) and Health (SOH) Calculations: Utilizes advanced algorithms to accurately determine SOC and monitor battery health over time.
  • Dual CAN Bus Interfaces: Features two independent, fully programmable CAN 2.0B interfaces for seamless integration with chargers, motor controllers, and diagnostic tools.
  • OBD-II Support: Compatible with standard OBD-II protocols, facilitating diagnostics and data retrieval .
  • Charging Protocol Compatibility: Direct hardware support for SAE J1772 and CHAdeMO charging standards, enabling efficient and safe charging operations.
  • Isolation Fault Detection: Built-in circuitry detects insulation breakdowns, ensuring user safety and system integrity.

Included Components:
  • Orion 2 BMS Main Unit
  • Main I/O Wiring Harness
  • Cell Tap Wiring Harness (6ft or 12ft options)
  • Dual-Range Current Sensor (options: 200A, 500A, 800A, 1000A)
  • Thermistor Harness with 8 x 2m Thermistors
  • User Interface Software (compatible with Windows and OS X)
Orion BMS Can Bus Adaptor Sold Separately.

Whats New
  • Roughly 40% lower weight on all models due to the new enclosure design and streamlined (removable) heatsink. Minimum heat dissipation requirements apply.
  • Considerable boosts in measurement accuracy and processor speed allow for more advanced calculations and logic.
  • Direct hardware support for several popular charging protocols including hardware support for SAE J1772 (directly interfacing with the pilot / proximity lines) and CHAdeMO for DC fast charging.
  • Wider input power voltage range (now 12v-24vDC compatible) for better support on heavy vehicles and equipment. The Orion 2 BMS remains fully compatible with 12v applications.
  • Ability to directly drive certain contactors on select inputs (bypassing the need for intermediate signal relays in some situations) see supporting documentation for details.
