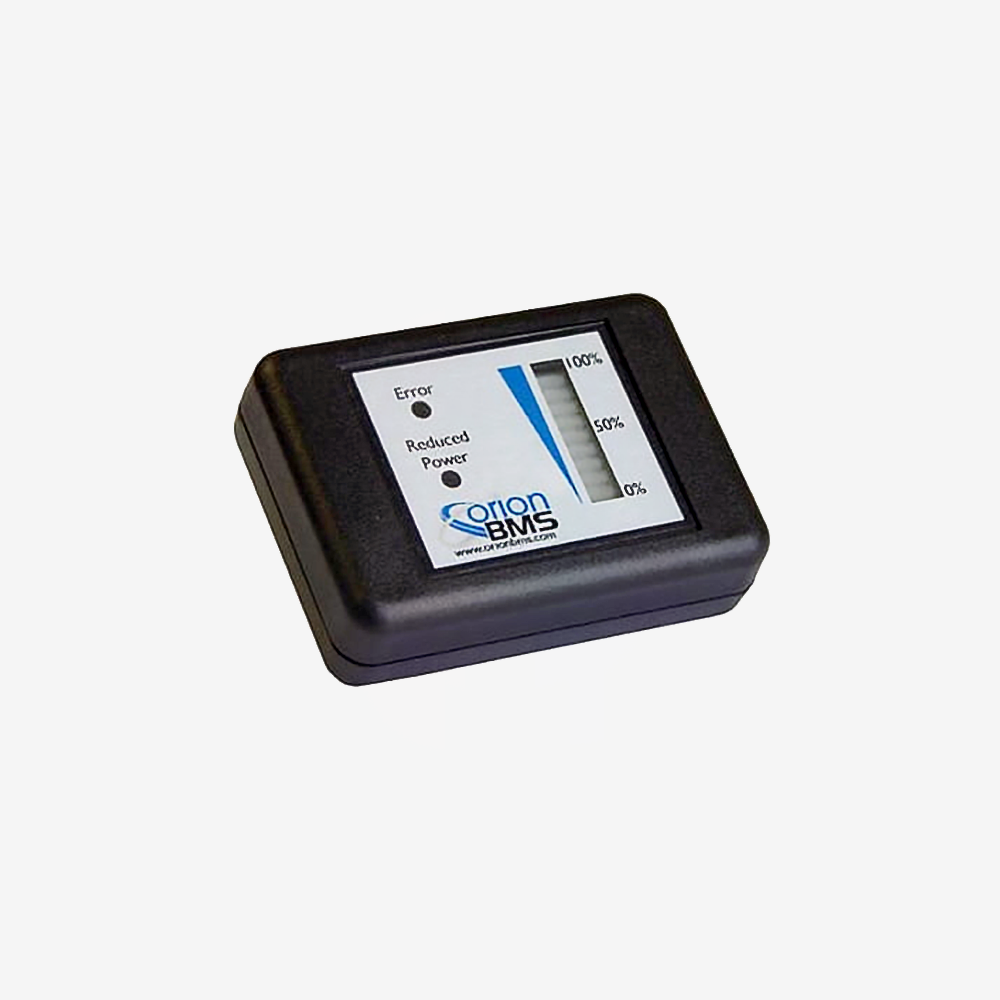

The Orion Basic Display: a compact panel display showing the essential state of a pack managed by an Orion BMS.
A BMS knows everything about a pack and, on its own, shows the driver none of it. It makes decisions in the moment and reports over CAN to whatever is listening. If nothing is listening, the driver has no state of charge, no warning when the pack is limiting power, and no indication of a fault until something stops working.
This is the minimum that closes that gap. It is not a dashboard or a logger: it is a small display that shows what the driver actually needs, which is how much charge is left and whether anything is wrong.
If you want logging as well, the data logging display does both, recording individual cell voltages to a memory card alongside showing the same driver facing information.
Key specifications
| Part | OXMBD48 |
|---|---|
| Type | Panel display for Orion BMS |
| Connection | CAN bus |
| Weight | 0.1 kg |
Features
- Shows pack state to the driver, which a BMS alone does not
- Connects over CAN, so there is no analogue wiring to get wrong
- Compact, for a dashboard or console position
Compatibility
For the Orion BMS. The BMS itself is sold separately.
Ask us which Orion variants it works with before ordering. Some Orion accessories are CAN version only, and that is not published on this page.
Ask us for the panel cut out as well, since no dimensioned drawing is published and you will need it before cutting a dashboard.
In the box
- 1 x Orion Basic Display
Downloads
No document is published for this display. Contact us for the dimensions, the panel cut out and the compatible BMS variants.
