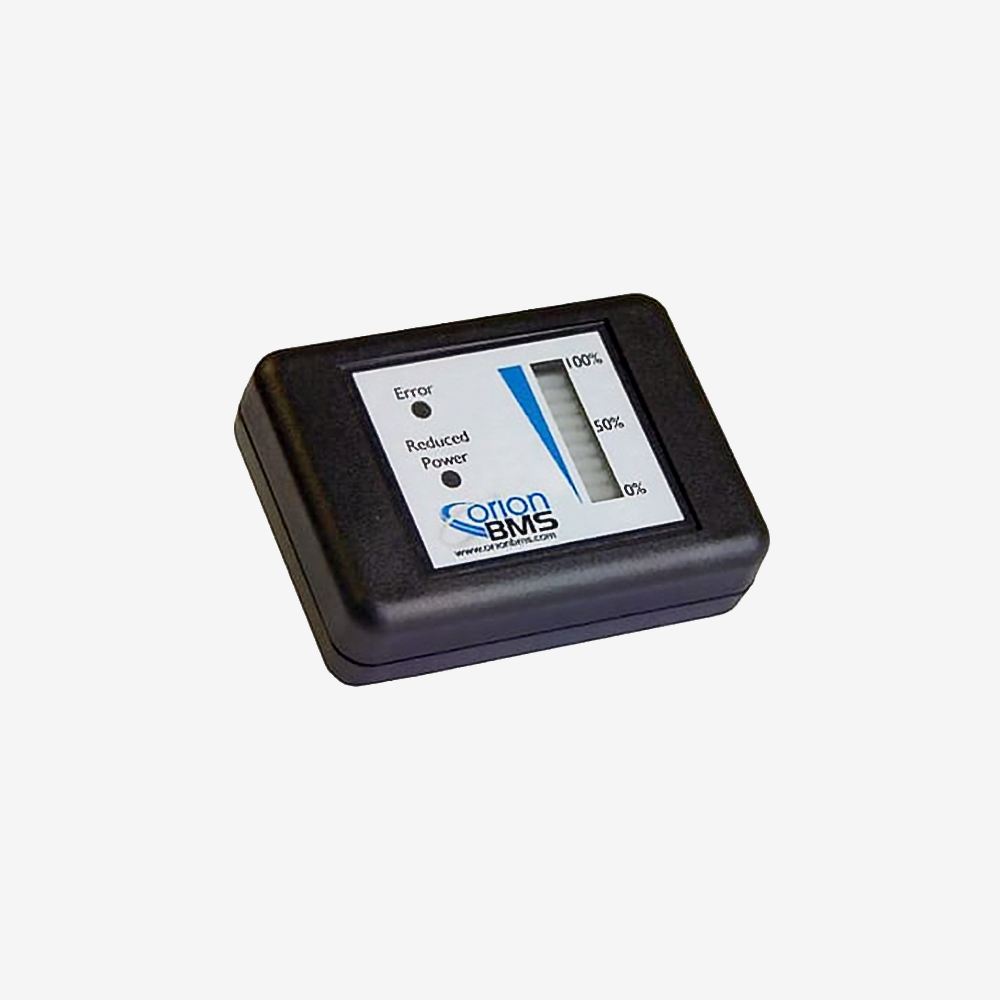

The Data Logging Display module for the Orion BMS / Orion Jr. BMS (CAN version only) provides visual feedback of the essential information on a battery pack as well as data logging capabilities for diagnostics. This display and logging combo connects to an Orion BMS unit via CAN (Controller Area Network) and logs data to a memory card while displaying State of Charge, Power Limited (reduced output power), and the Malfunction Indicator Status (error indicator).

Quick Specifications

1. Operates with the Orion BMS and Orion Jr. BMS (CAN version only) from Ewert Energy Systems (BMS sold separately)
2. Full automotive operating temperature range (-40C to 80C)
3. Logs BMS parameters to memory card at user selectable sampling rate
4. Able to log both individual cell voltages as well as general BMS parameters
5. Compact size and shape
6. Connects to the Orion BMS via CAN (no analog connections)
7. External “event trigger” input which can flag events for future review
8. Log graphing and analysis software
9. Real time clock to store data and time of each charge / discharge cycle
10. Supports CAN frequencies of 125, 250, 500Kbps, and 1 Mbps
