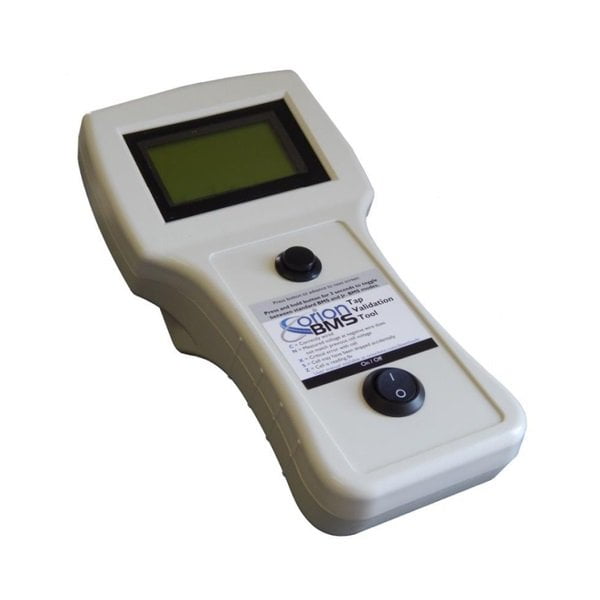

Orion BMS Cell Tap Validation Tool **HIRE**
| 1 Week | £ 247.49 |
| 2 Weeks | £ 274.99 |
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
Hire of the Orion cell tap validation tool. It checks a cell tap harness for correctness before you plug it into the BMS, which is the only point at which a wiring mistake is still cheap.
A cell tap harness carries a wire from every cell group in the pack. Get two crossed, or one in the wrong position, and the BMS sees voltages that make no sense, and in the worst case sees the full pack voltage across an input designed for one cell. The harness is also the last thing built and the first thing plugged in, usually at the end of a long day.
This tool tests the harness on its own. It is handheld, runs from an internal 9 V battery, and is designed to be used in the workshop next to the pack. You confirm the harness is right, then you connect it.
It is a tool you need once per build, which is why we hire it. Buying one to validate a single pack is poor value, and it spends the rest of its life in a drawer.
Key specifications
| Part | OXMTAPHIRE |
|---|---|
| Type | Cell tap harness validation tool, hire only |
| Compatible with | Orion BMS cell tap harnesses |
| Power | Internal 9 V battery |
| Use | Handheld, for field and workshop use |
| 7 day hire | £96.99 including VAT |
| 14 day hire | £129.99 including VAT |
| Deposit | £200, refundable |
| Late return | £10 per day, deducted from the deposit |
| Shipping | UK only |
| Weight | 0.5 kg |
Features
- Finds a harness fault while it is still a harness fault, not a BMS fault
- Handheld and battery powered, so it goes to the pack rather than the other way round
- Hire rather than purchase, which suits a tool most builders need once
- Orion Jr adapter cable available if your harness needs it
Compatibility
For Orion BMS cell tap harnesses. If you are validating a harness for an Orion Jr, tell us when you book and we will include the Jr adapter cable.
This is a hire, not a sale. The listed price does not carry the hire cost: the 7 or 14 day fee and the £200 refundable deposit are arranged when you book. Contact us to check availability and dates before you plan around it.
The deposit comes back in full when the tool returns within the hire period. Time beyond it is charged at £10 per day and taken from the deposit.
UK shipping only.
In the box
- 1 x cell tap validation tool
- Orion Jr adapter cable, on request
Downloads
No document is published for this tool. Instructions come with it, and we will talk you through it when you book.
