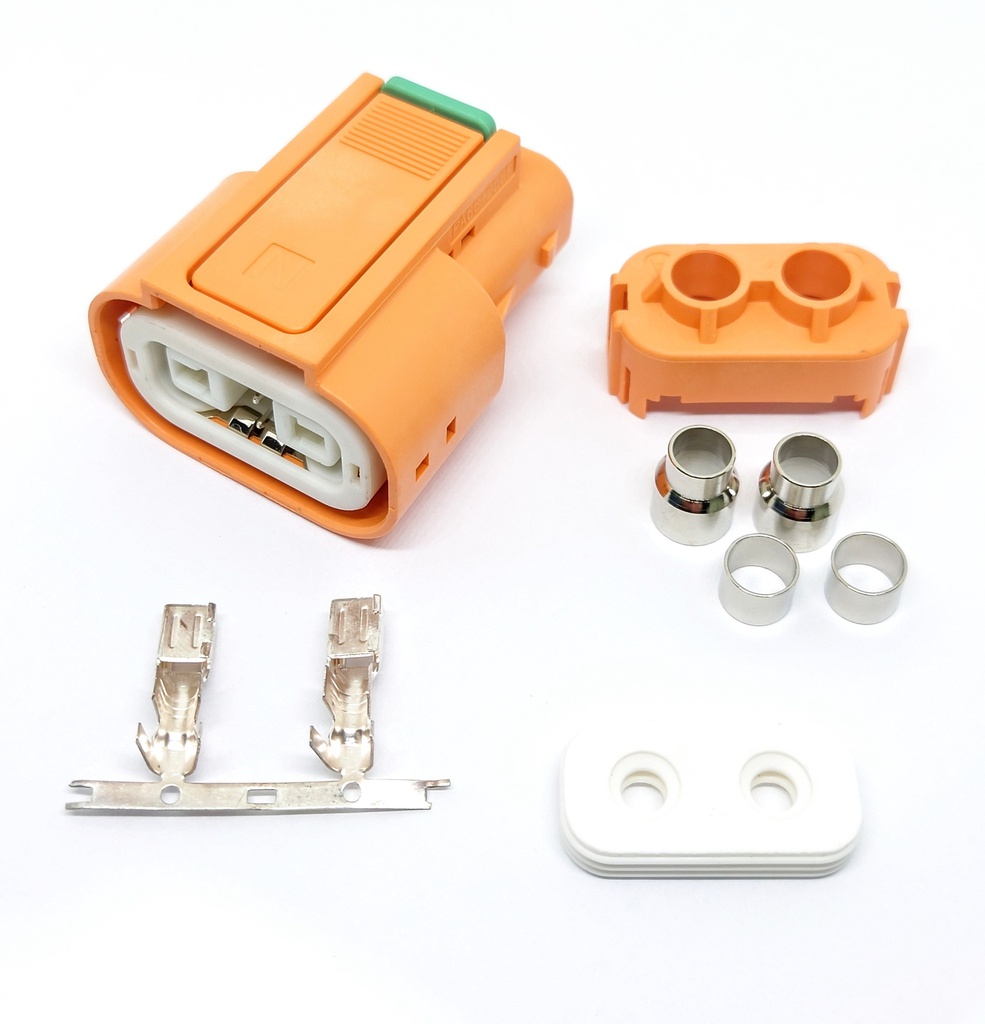

A Xinxi two pin high voltage connector rated 440 volts, for a charger connection.
Two pins means one circuit, positive and negative through a single sealed body, with the touch proof contact protection expected of a high voltage connector.
At 440 volts it is a charger side connector rather than a traction one. That is the range a DC charge connection to a 400 volt class pack sits in, which is what this is made for.
Confirm the details before you design it in. We have no datasheet published for this connector. The things you need are the current rating, the conductor range, whether terminals are included and which half this is. Ask us and we will confirm all four, along with the mating part.
Key specifications
| Manufacturer part | XXC105-EV-S2TB |
|---|---|
| Manufacturer | Xinxi |
| Type | High voltage connector |
| Pins | 2 |
| Rated voltage | 440 V |
| Application | Charger connection |
| Weight | 0.05 kg |
Features
- Two pin, for a single high voltage circuit through one sealed body
- Rated 440 V, suiting a 400 V class charger connection
- Touch proof contact protection
Compatibility
For high voltage charger connections on 400 V class systems.
Check the 440 V rating against your pack at the top of a charge, not at nominal. A 400 V class pack can exceed 440 V fully charged depending on chemistry and cell count.
Ask us for the ratings and the mating half before specifying it. See the note above.
In the box
- 1 x two pin HV connector
Downloads
No document is published for this connector. Contact us for the current rating, conductor range, terminals and mating part.
