Zonic 180, 19 mm Hose-tail Coolant Fitting
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

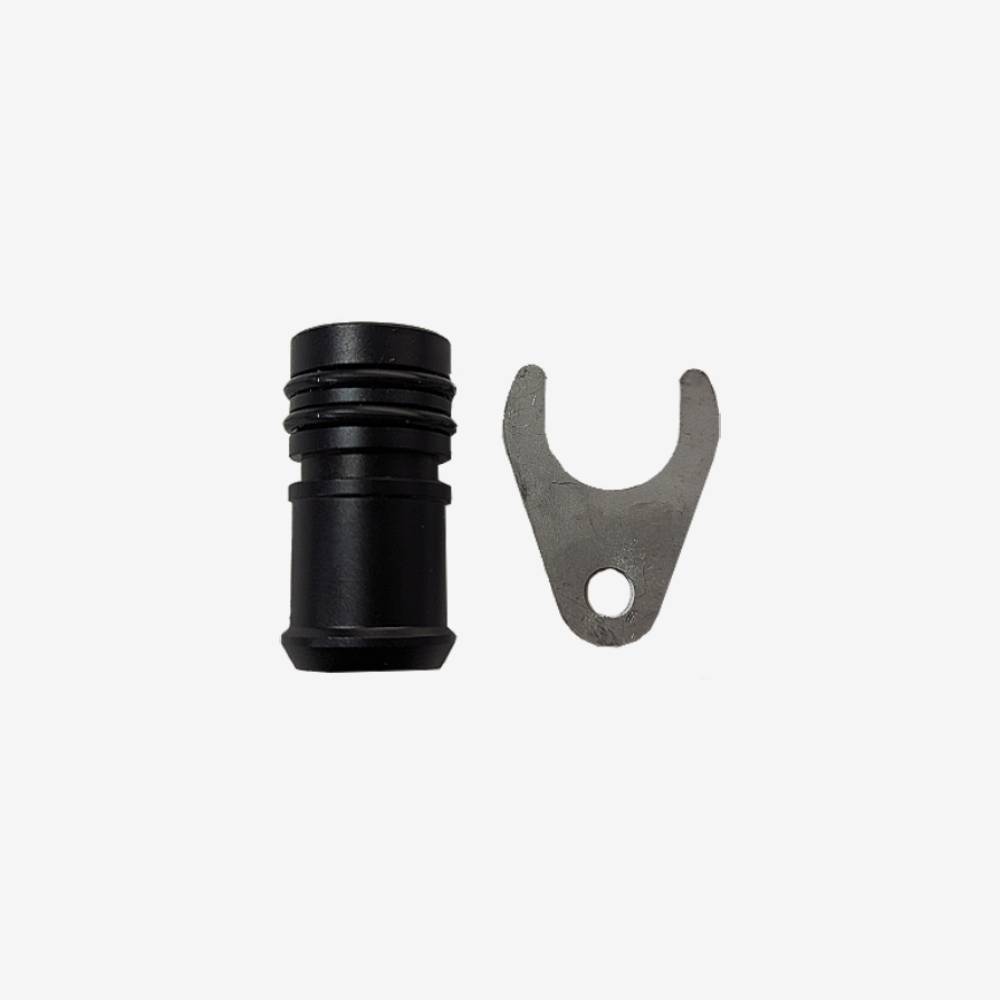

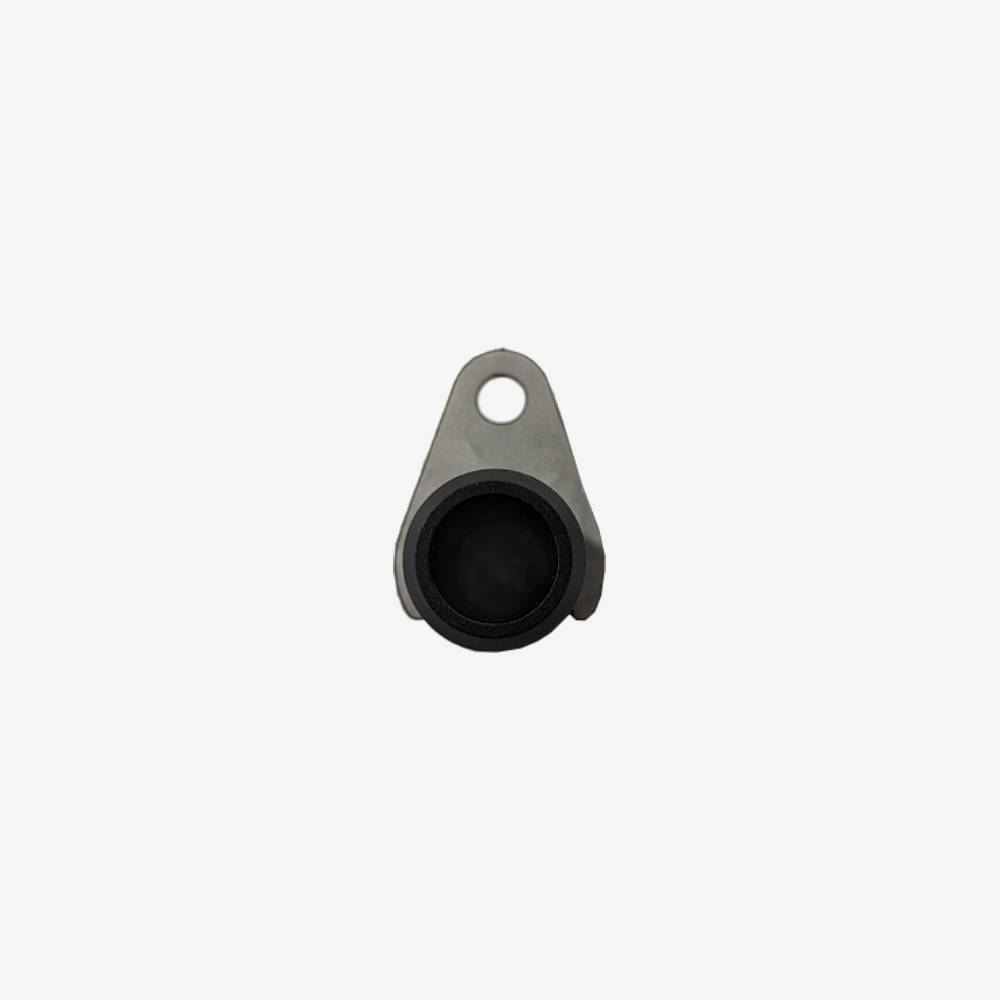

A shortened 19 mm hose tail coolant fitting for the Zonic 180 motor.
Shortened is the specification here. A standard hose tail sticks out further than the Zonic's packaging allows in some installations, and a fitting that fouls the body, a subframe or a hose run is a fitting that has to come off again. This one is cut down to suit.
19 mm is a real coolant line, the usual bore for a motor loop, so the fitting takes proper coolant hose rather than small bore push fit tube.
Key specifications
| Part | ZON180-CF-19HT |
|---|---|
| Type | Hose tail coolant fitting, shortened |
| Hose size | 19 mm |
| Suits | Zonic 180 motor |
| Weight | 0.5 kg |
Features
- Shortened, for installations where a standard fitting fouls something
- 19 mm hose tail, for a proper motor coolant line
- Made for the Zonic 180 rather than adapted to it
Compatibility
For the Zonic 180 motor.
Ask us for the thread and sealing arrangement. No drawing is published, and whether it seals on an O ring at the face or on a tapered thread determines how it should be fitted. Fittings of this type usually seal on an O ring, in which case no PTFE tape and never run it without the O ring.
Use a proper hose clamp on the tail. A coolant joint that weeps onto a motor is a slow problem that becomes an expensive one.
In the box
- 1 x shortened hose tail coolant fitting
Downloads
No technical document is published for this fitting. Contact us for the thread and sealing detail.
