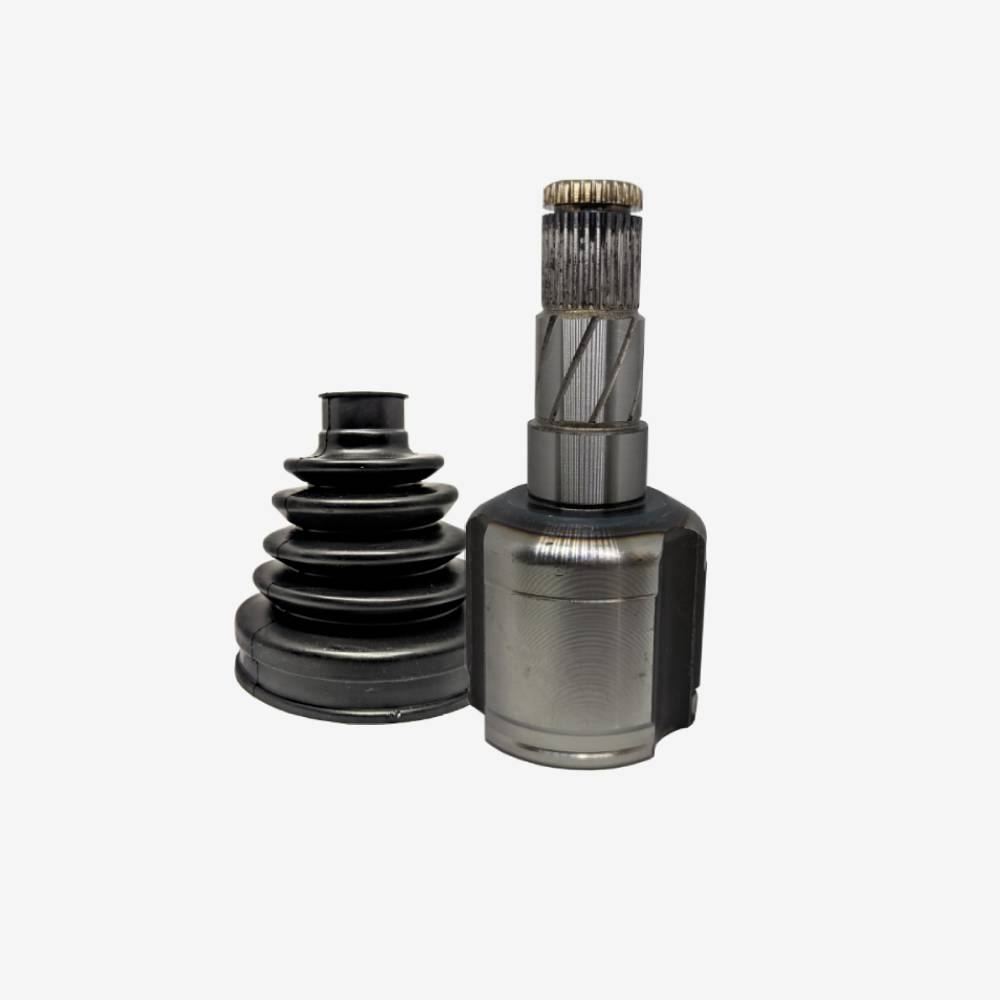

Tesla Model 3 Joint kit, Drive Shaft

A complete inner joint kit for a Tesla Model 3 driveshaft: the shaft stump, the tripod joint, a new boot, grease, circlips and boot clips. Tesla part number 602461.

Two quite different people buy this kit. The first has a Model 3 with a split boot, which if it is caught early means a joint kit rather than a driveshaft. The second is building a conversion and needs the stump, because a Tesla drive unit output has to meet a driveshaft that Tesla never made, and this is the OEM part that mates to the drive unit at one end and can be adapted at the other.

Replace a boot as soon as it splits. A tripod joint runs happily for the life of the car while it stays packed with grease and sealed. Once grit gets in, the rollers and the housing wear quickly, and what would have been a boot kit becomes a driveshaft. The kit includes the joint precisely because by the time most people look, the joint has already suffered.

Key specifications

Features

• Everything the joint needs in one kit, including the grease and the clips people forget to order
• Genuine specification parts, so the joint goes back to original tolerances
• A fraction of the cost of a complete driveshaft
• The stump on its own is a useful starting point for a custom conversion driveshaft

Compatibility

For the Tesla Model 3, chassis code 5YJ3, in the variants listed above.

For conversions, the stump suits anyone making a custom shaft to a Tesla drive unit output. Check the spline and the length against your own drive unit before ordering, since the kit is specified by vehicle rather than by drive unit.

Assembly needs care. Pack the joint with the grease supplied, seat the boot squarely, and fit both clips. A boot that is fitted twisted or under tension will split again.

In the box

• 1 x driveshaft stump
• 1 x tripod joint
• 1 x boot
• 1 x tube of grease
• 2 x circlips
• 2 x boot clips

Downloads

No fitting document is published for this kit. For the spline specification or shaft dimensions, contact us.
