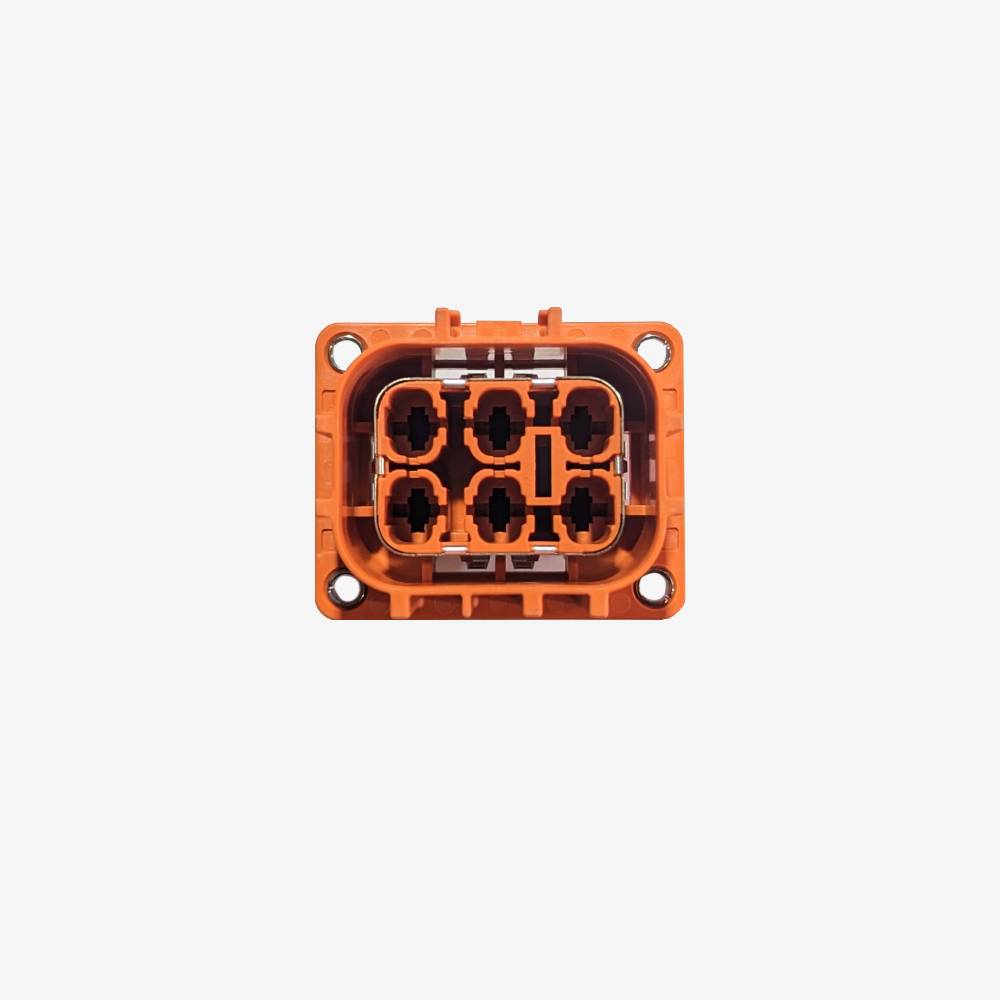

HV Connector Socket 6 core 20A
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
The panel mounting half of a six core high voltage connector, rated 20 A per core at 1000 V DC, with interlock, shielding and crimp contacts supplied.
Six circuits through one sealed crossing is the reason to use it. A pack has heaters, pumps, sensors and interlocks that each need their own path out of the enclosure. Six separate connectors means six penetrations, six seals and six chances of a leak. This takes all six through one hole.
It is a high voltage connector, not a signal one. The cores are rated at pack voltage with an interlock and EMI shielding built in, which is what distinguishes it from an ordinary multi way connector and what makes it appropriate for auxiliary circuits that sit at 1000 V.
At 20 A per core it is for the auxiliaries. If you are looking for a traction connector this is the wrong part, and the heavy two pole connectors are the right ones.
Key specifications
| Manufacturer part | EVH2-N6ZJ-RA |
|---|---|
| Type | Panel mount socket, the fixed half |
| Cores | 6 |
| Rated current | 20 A per core |
| Rated voltage | 1000 V DC |
| Interlock | Yes |
| Screening | EMI shielded |
| Ingress protection | IP67 |
| Terminals | Crimp contacts supplied |
| Mates with | EVH2-N6TK-RDA, the six core plug |
| Weight | 0.1 kg |
Features
- Six circuits through a single sealed penetration instead of six separate ones
- Rated at 1000 V DC, so auxiliary circuits at pack potential are properly handled
- Interlock and EMI shielding built in
- IP67 sealed once mated
- Crimp contacts included
Compatibility
Mates with the six core plug, EVH2-N6TK-RDA. Buy the pair unless you already have the other half.
For EV auxiliary power distribution, battery module services, sensor systems and industrial control.
Size each core to the load it carries, and do not treat the six cores as a way of carrying one large current in parallel unless you have confirmed that with us first.
In the box
- 1 x six core panel mount socket
- Crimp contacts to suit
Downloads
The manufacturer datasheet and a 3D CAD model in STEP format are in the Documents tab.
