16 mm2 HV Connector 2 Way Male
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

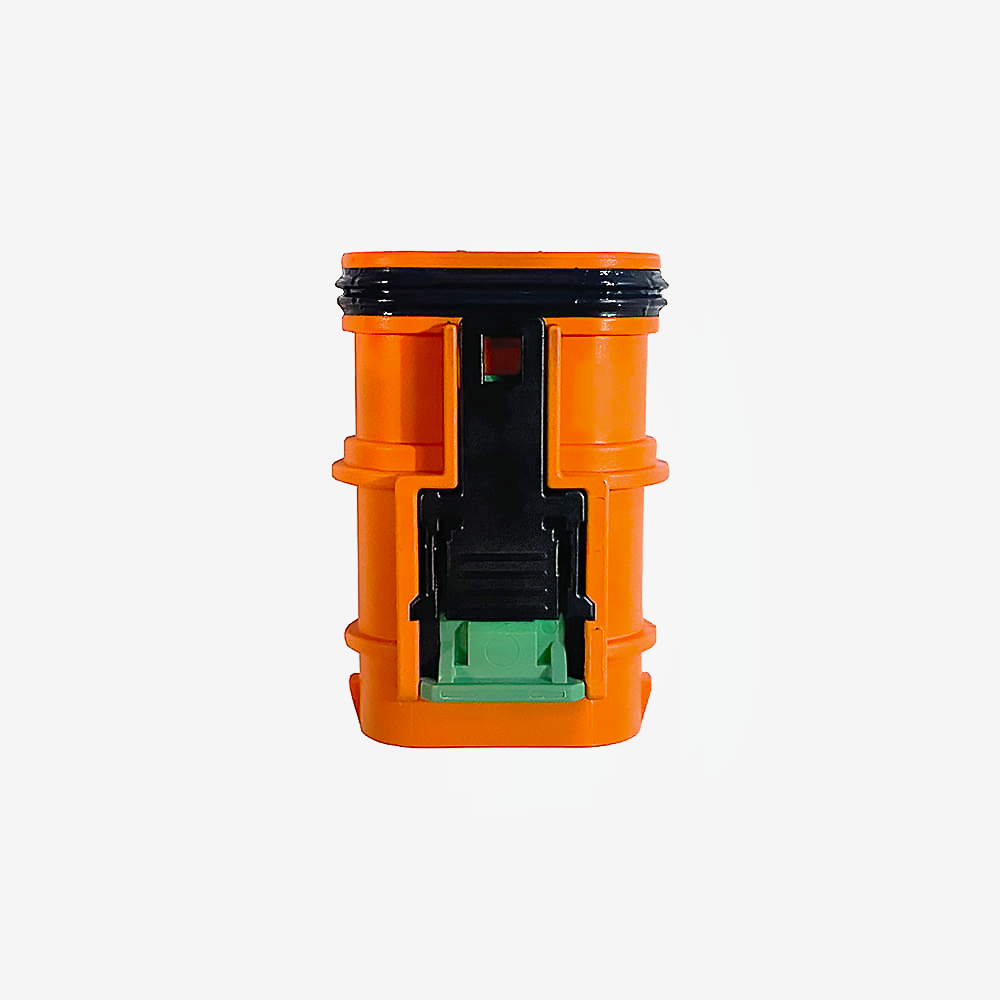

The cable side half of a two pole 16 mm² high voltage connector, A keyed. It pushes into the matching panel mounted receptacle and locks there.
At 16 mm² this sits between the small auxiliary connectors and the heavy traction ones. It suits the circuits that draw real current but are not the main pack run: a cabin heater, an air conditioning compressor, a charger feed or a DC to DC converter input.
A keyed parts mate only with A keyed parts. The moulded keyway physically blocks a B keyed half. Where two similar high voltage runs sit near each other, using A for one and B for the other makes crossing them impossible. Check the letter on both halves before ordering.
Key specifications
| Manufacturer part | GYHE-2-80T-A |
|---|---|
| Type | Cable plug, the moving half |
| Poles | 2 |
| Conductor size | 16 mm² |
| Keying | A |
| Mates with | GYHE-2-80Z-A, the A keyed panel mount receptacle |
| Weight | 0.07 kg |
Features
- 16 mm², sized for heaters, compressors and charger feeds rather than the main pack run
- A keying physically blocks mating with a B keyed half
- Sealed, vibration resistant housing with a positive lock
- Compact for the current it carries
Compatibility
Mates with the A keyed receptacle, GYHE-2-80Z-A. Buy the pair unless you already have the other half.
For high voltage auxiliary circuits on 16 mm² cable in EV conversions, energy storage and industrial systems.
The ratings are set by the whole assembly, not this half alone. What the joint carries depends on the receptacle, the terminals and the cable fitted to it. If you are working to a specific voltage and continuous current figure, ask us and we will confirm against the manufacturer data.
In the box
- 1 x cable plug, A keyed
Downloads
A 3D CAD model in STEP format is in the Documents tab.
