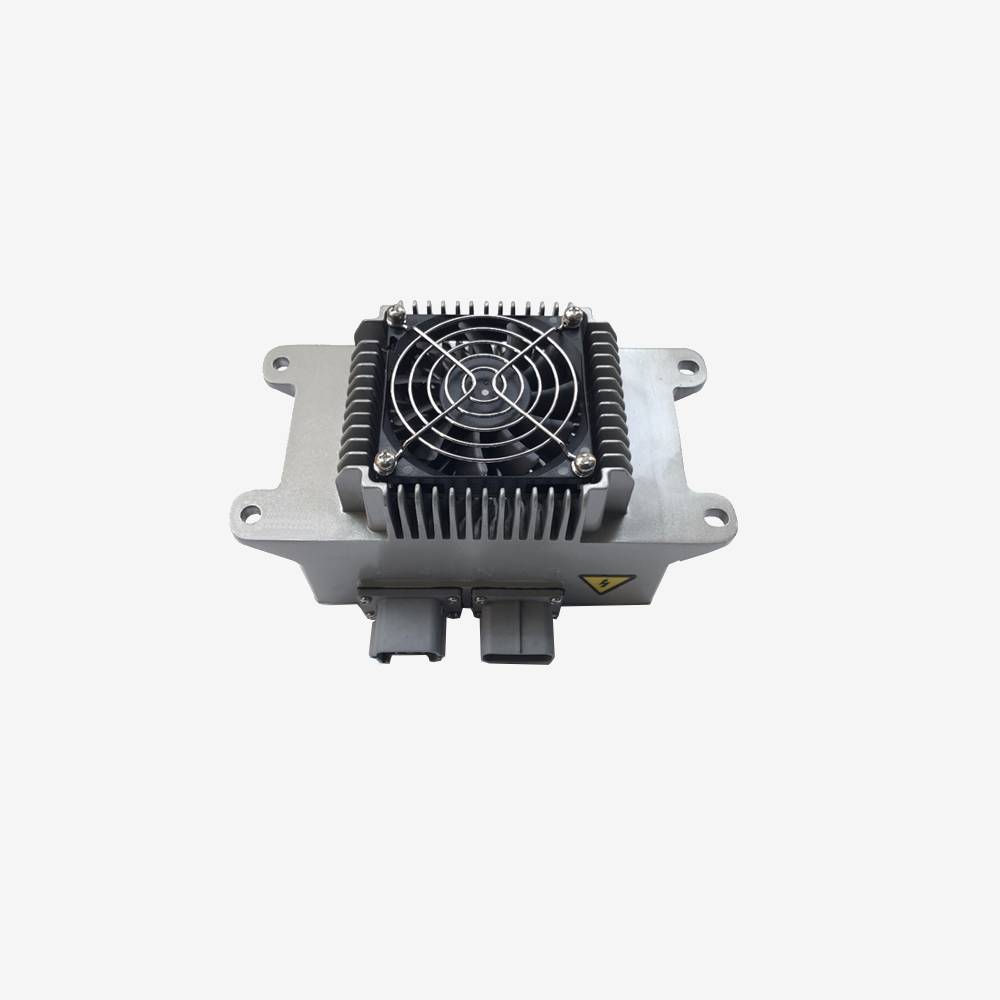

HK-H-H66-25 Onboard EV Charger – 1.8kW | 66V 25A | CANbus | IP67 Rated
The Elcon HK-H-H66-25 Charger is a high-performance 1.8kW onboard lithium battery charger, built for electric vehicle (EV) conversions, battery-powered vehicles, and compact energy systems.
Delivering up to 25 amps of charging current with an output voltage range of 18V to 66V, this fan-cooled charger is ideal for 48V lithium battery packs. It supports CANbus communication with selectable 250 kbps or 500 kbps baud rates, allowing seamless integration with battery management systems (BMS).
Its IP67 waterproof rating, vibration resistance, and wide temperature tolerance (–35°C to +85°C) make it a robust solution for automotive, marine, and off-grid applications.
Key Features
- Output Power: 1.8kW
- Voltage Range: 18V–66V (48V nominal)
- Max Output Current: 25A
- Cooling: Active fan-cooled system
- Communication: CANbus configurable (250 or 500 kbps)
- IP Rating: IP67 waterproof & dustproof
- Operating Temperature: –35°C to +85°C
- Size & Weight: 203 × 135 × 125mm, 2.6kg
- Reliability: Shock and vibration resistant, long service life
Model | Output Voltage Nominal | Output Voltage Range | Output Current Max | Dimensions (mm) | Net Weight (KG) |
HK-H-H66-25 | 48V | 18-66V | 25A | 203x135x125 | 2.6 |
HK-H-H99-25 | 72V | 25-99V | 25A | 203x135x125 | 2.6 |
HK-H-H132-16 | 96V | 34-132V | 16A | 203x135x125 | 2.6 |
Please let us know if you would like your charger to be 250 kbps or 500 kbps on ordering.
