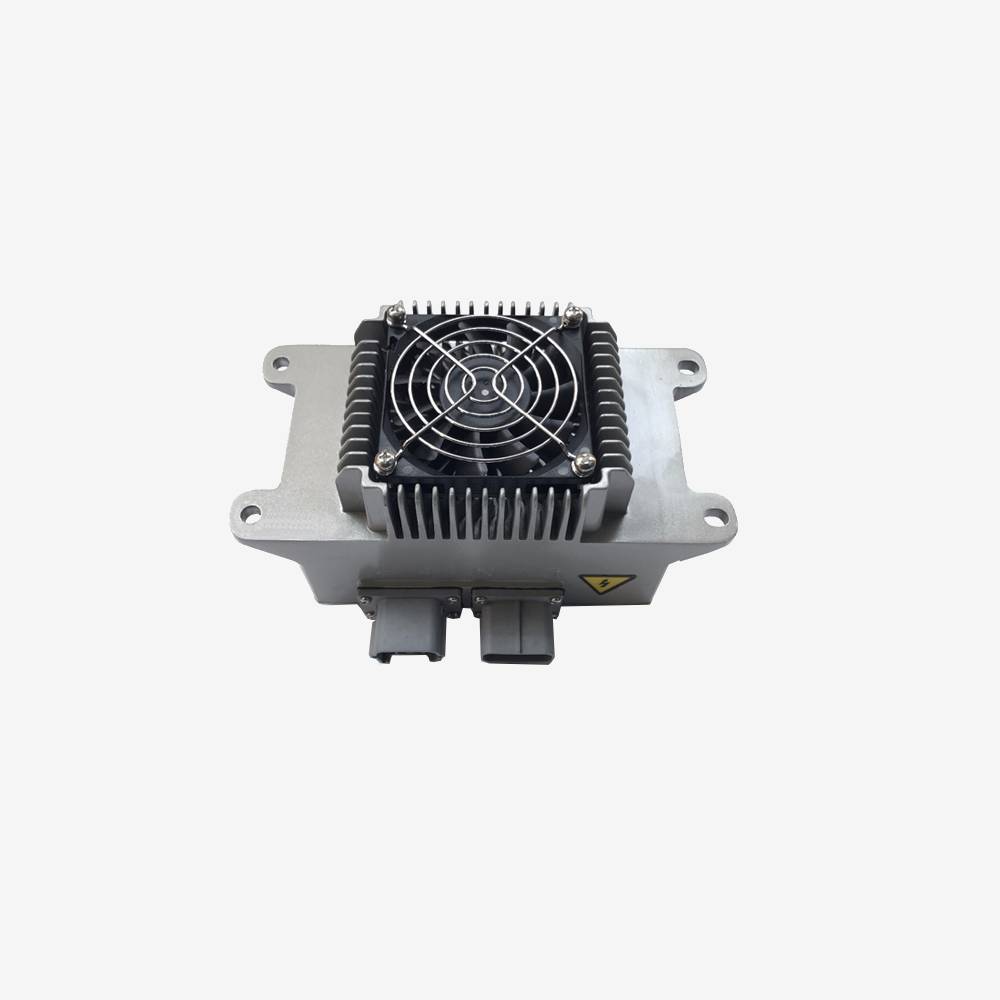

HK-H-H99-25 Charger 1.8kw 99V 25A
The Elcon 1.8 kWh Charger is an onboard battery charger for EV conversions and builds.
1.8KW Lithium Battery Charger /On-board Charger Fan-cooled
Model | Output Voltage Nominal | Output Voltage Range | Output Current Max | Dimensions (mm) | Net Weight (KG) |
HK-H-H66-25 | 48V | 18-66V | 25A | 203x135x125 | 2.6 |
HK-H-H99-25 | 72V | 25-99V | 25A | 203x135x125 | 2.6 |
HK-H-H132-16 | 96V | 34-132V | 16A | 203x135x125 | 2.6 |
The charger runs via a CANbus network with 3 options for baud rate. This series of chargers have high efficiency, small size, high stability, long life and a high degree of shock and vibration protection. The charger is IP67 rated and will operate at wide range of temperatures (-35C to 85C), making it a good fit for a wide variety of different applications.
Please let us know if you would like your charger to be 250 kbps or 500 kbps on ordering.
Instruction for 1.8KW charger .pdf
Download
