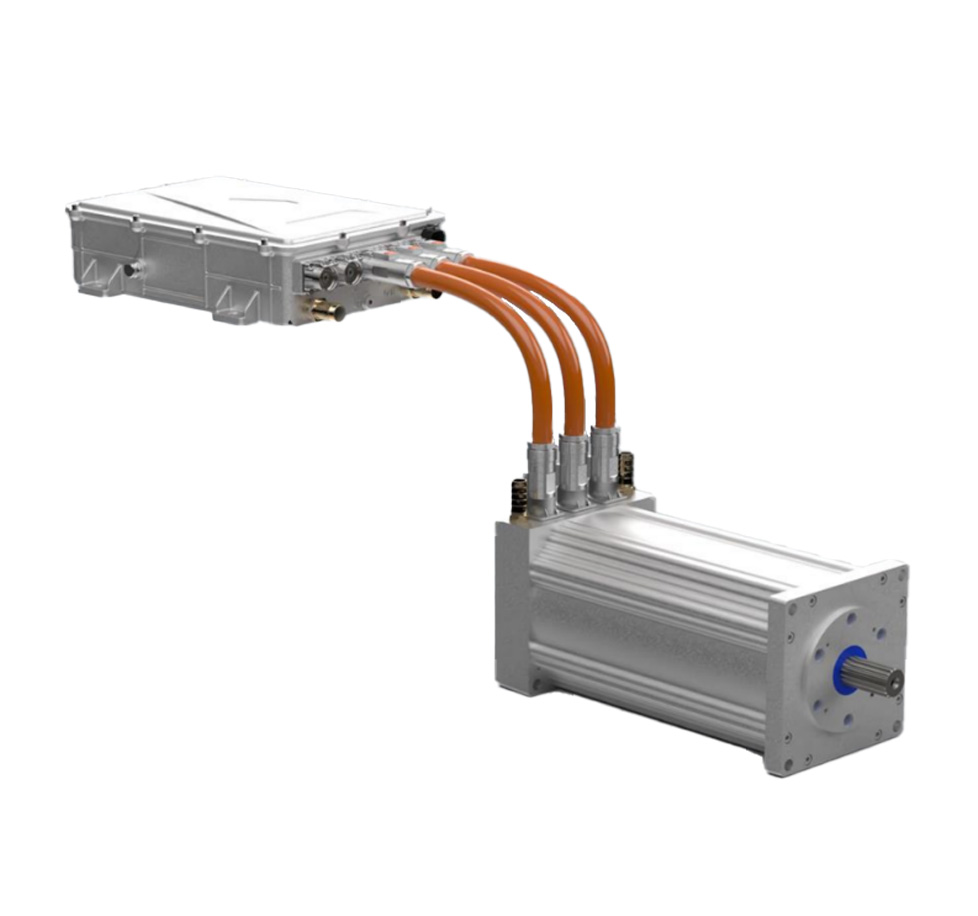

IEV180-4U-WN200 Inetic Motor/Inverter/VCU

https://shop.fellten.com/web/image/product.template/20594/image_1920?unique=a7d0531

£ 8,580.00 8580.0 GBP £ 8,580.00

£ 8,580.00

Not Available For Sale

This combination does not exist.

Contact Us
Share :
Terms and Conditions

Orders Dispatched Within 24 hours  - Excluding Weekends and Bank Holidays.

Worldwide Shipping
30 Days Return
Fast Delivery

iEV180 Motor + A4001 Drive + AEM VCU 275: High-Performance Electric Powertrain Solution

Unlock the full potential of your electric vehicle with the integrated iEV180 Motor, A4001 Motor Drive, and AEM VCU 275 control unit. This comprehensive powertrain package is engineered for high-performance applications across automotive, marine, rail, and industrial sectors.​


Integrated Powertrain Solution

Combining the iEV180 motor, A4001 drive, and AEM VCU 275 offers a high-performance, scalable, and efficient powertrain solution. This integrated package is ideal for applications requiring robust performance, precise control, and adaptability across various sectors.

Experience the future of electric mobility with this comprehensive powertrain solution, designed to meet the demands of modern applications.


​Applications:
  • Automotive (Motorsport, Passenger, and Commercial Vehicles)
  • Marine Propulsion Systems
  • Rail Transportation
  • Industrial Machinery and Power Generation



iEV180 Motor: High-Speed, High-Torque Electric Motor


The iEV180 series is a cutting-edge, high-speed electric motor designed to deliver exceptional performance and efficiency. With a maximum operational speed of 18,000 rpm and a power range scalable from 5 kW to 300 kW, it caters to a wide array of applications, including automotive motorsport, off-highway vehicles, motorcycles, passenger and commercial vehicles, rail, marine, and power generation.​

The motor's modular design allows for adaptability, ensuring seamless integration into various systems and applications.

Key Features:
  • Peak Torque: Up to 355 Nm
  • Peak Power: Up to 135 kW
  • Continuous Torque: Up to 156 Nm
  • Continuous Power: Up to 64 kW
  • Cooling System: Liquid-cooled with 50% Ethylene Glycol
  • Ingress Protection: IP67
  • Rotor Position Sensor: Resolver​
  • Minimum DC Voltage: 260 V


A4001 Motor Drive: Compact and Versatile Inverter


The A4001 is a compact and versatile 3-phase AC motor controller designed to complement the iEV180 motor. It offers powerful performance with a maximum capacity of 150 kVA and a rated capacity of 90 kVA. The drive ensures precise control and efficiency in diverse industrial settings.​

The A4001's advanced rotor position resolver capability ensures optimal performance across various applications.

Key Features:
  • Maximum DC Voltage: 420 V
  • Minimum DC Voltage: 260 V
  • Maximum Current: 410 Arms
  • Switching Frequency: 10 kHz
  • Cooling System: Liquid-cooled with 50% Ethylene Glycol
  • Operating Temperature Range: -40°C to 85°C
  • Mass: 11.2 kg​
AEM VCU 275: Advanced Vehicle Control Unit


The AEM VCU 275 is an advanced vehicle control unit designed to manage and optimize the performance of electric powertrains. It offers seamless integration with the iEV180 motor and A4001 drive, providing comprehensive control over vehicle dynamics, energy management, and system diagnostics.​

The VCU 275's adaptability makes it suitable for a wide range of applications, from automotive to industrial systems.​

Key Features:
  • High-Speed Processing: Ensures real-time control and responsiveness.
  • Flexible I/O Configuration: Supports various sensors and actuators.
  • Robust Communication Protocols: CAN, LIN, and Ethernet support for seamless integration.
  • Advanced Diagnostics: Real-time monitoring and fault detection.

Comparison Overview

Specification

iEV180-4U-WN200

iEV180-4U-WN150

Peak Power (10s)

135 kW

105 kW

Continuous Power

59 kW

47 kW

Peak Torque (10s)

355 Nm

280 Nm

Continuous Torque

156 Nm

125 Nm

Mass

52.0 kg

48.0 kg

Package Length

381 mm

381 mm

Max Speed

18,000 rpm

18,000 rpm

Cooling

Liquid-cooled

Liquid-cooled

Ingress Protection

IP67

IP67

Rotor Position Sensor

Resolver

Resolver


A4001 CAD.stp
Download
iEV 180-4U CAD.step
Download
iEV-4U-WN200 and A400 Spec Sheet.pdf
Download
VCU275 CAD.STEP
Download
