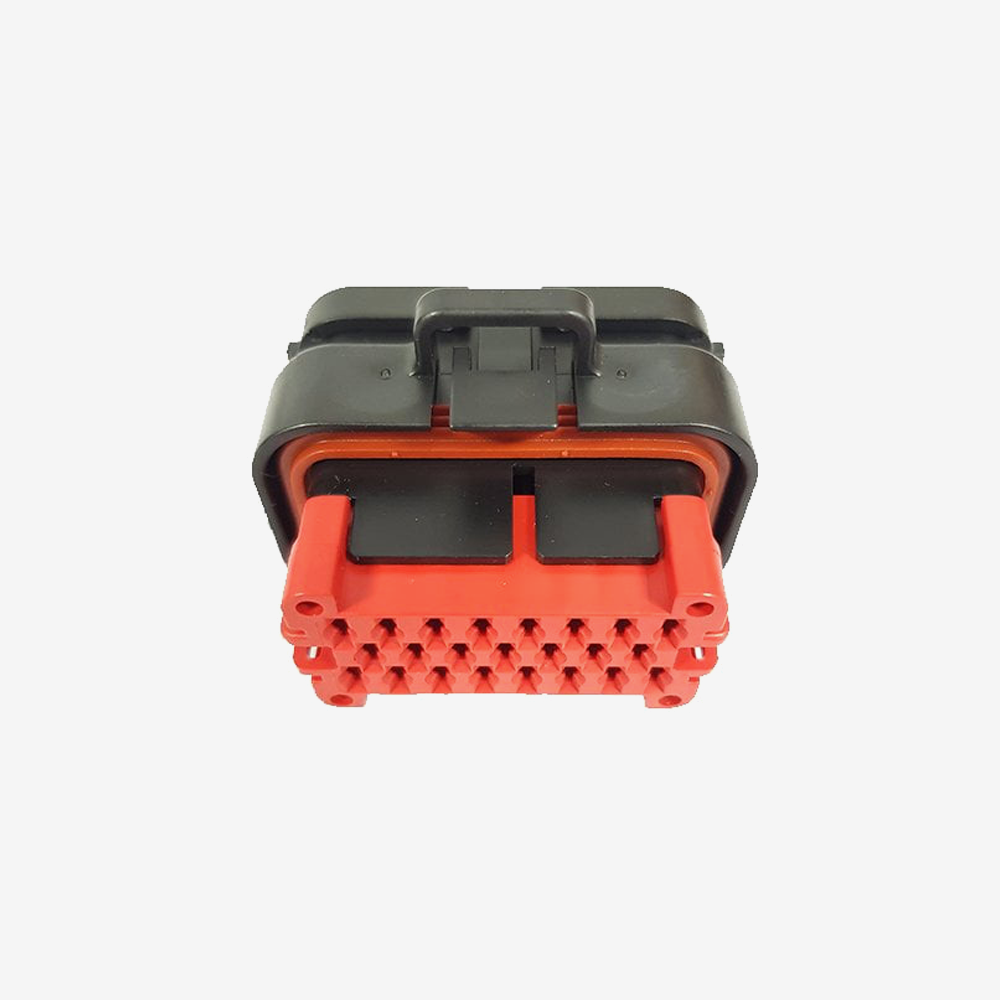

23pin Molex Tesla Large Drive Unit Data Connector Model S & X
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.
The 23 pin Molex connector that plugs into the main data connection on a Tesla large drive unit, supplied as a complete kit with pins.
This is the connector that carries everything the drive unit needs to be told and everything it reports back. Without it you cannot control the unit at all, whichever inverter board you are running.
It is the part people need when building a loom from scratch, which is most conversions: the pins crimp onto your own cut cables, so the harness is built to the length and route your car actually needs rather than adapted from a Tesla one.
It is also the part people need when a connector is damaged, which is common on a drive unit pulled from a car. The 23 pin connector sits exposed and is easy to break during removal.
Key specifications
| Part | LDUDCONNECTOR |
|---|---|
| Type | Data connector kit, Molex |
| Ways | 23 |
| Pins | Included |
| Fits | Tesla large drive unit, base and performance |
| Weight | 0.04 kg |
Features
- Correct mating half for the large drive unit main data connection
- Pins included, for crimping onto your own cable
- Fits both base and performance large drive units
- For building a custom loom or replacing a damaged connector
Compatibility
For the Tesla large drive unit, base and performance variants.
We also supply the 4 pin encoder connector for the same drive unit, which is the other connector commonly damaged during removal and is equally essential.
If the drive unit's connector itself is broken rather than the loom, that is a different repair: the 23 pin data interface board replaces the connector on the unit, and it requires an aftermarket inverter board.
In the box
- 1 x 23 pin Molex connector
- Pins to suit
Downloads
No document is published for this connector. For the pinout, contact us.
