Quaife Tesla Model 3 Limited Slip Diff - QDH7T
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

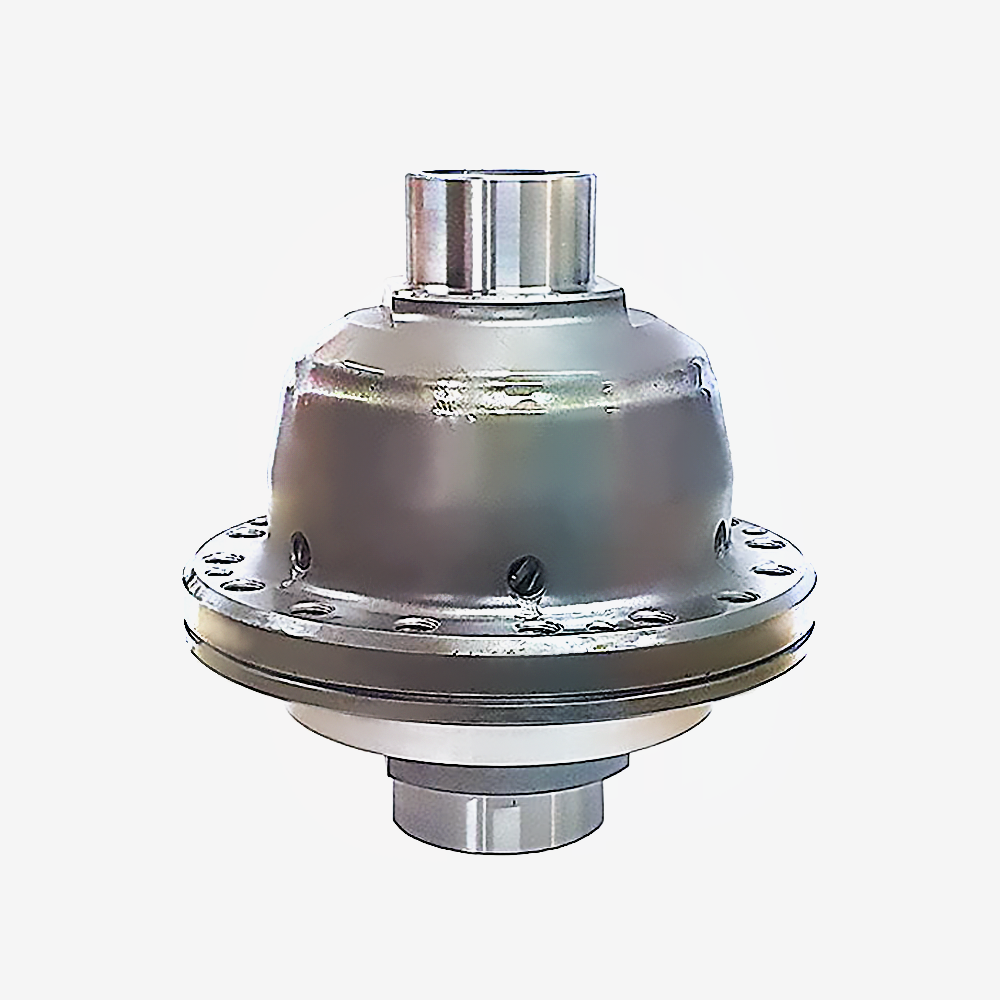

The Quaife ATB helical limited slip differential for the Tesla Model 3 rear drive unit. The QDH7T was commissioned by Fellten and is supplied exclusively through us. It drops straight into the standard housing in place of the factory open differential, and is the traction upgrade we fit as standard to our own drive units.
An open differential sends torque to whichever wheel has least grip, so on a powerful rear-drive conversion one wheel spins while the other does nothing. The Quaife ATB reverses that: its helical gear set continuously biases torque towards the wheel that still has grip, without ever locking. Because it works on gears rather than clutch plates, there is no pre-load to set, nothing to wear out and no service interval. It runs on the drive unit's normal oil and is designed to work with the vehicle's traction and stability control rather than against it.
Key specifications
| Manufacturer part | Quaife QDH7T |
|---|---|
| Type | ATB helical-gear limited slip differential |
| Fitment | Tesla Model 3 rear drive unit |
| Crown wheel bolt PCD | 136.0 mm (5.354 in), 16 bolts |
| Crown wheel bolt thread | M10 x 1.5, tapped |
| Crown wheel spigot diameter | 112.0 mm (4.409 in) |
| Bearing diameters | 55.0 mm and 45.0 mm |
| Bearing distance | 116.8 mm (4.598 in) |
| Overall length | 161.0 mm (6.339 in) |
| Bore | 35.0 mm (1.378 in) |
| Driveshaft spline | 29 teeth, 24/48 D.P., fillet root side fit, 30° pressure angle |
| Weight | 8.00 kg |
| Warranty | Quaife lifetime warranty, road and motorsport use |
| Manufactured | Great Britain, ISO 9001 |
Features
- Torque goes to the wheel with grip instead of the one that is spinning, so the car puts its power down out of corners and on poor surfaces
- Never locks. The action is progressive and silent, including at parking speeds, with none of the snatch of a plate-type LSD
- Gear operated, so there are no clutch packs, ramps or springs to wear out and no service components to replace
- Uses the drive unit's standard oil and normal maintenance schedule
- Designed to work alongside electronic traction and stability control rather than confusing it
- Direct replacement for the factory open differential, with no machining of the housing
- Backed by Quaife's lifetime warranty, for motorsport as well as road use
- Held in stock in the UK and restocked in batches, rather than built to order
Compatibility
Fits the Tesla Model 3 rear drive unit. It is most often fitted at the same time as the 3.54:1 reduction gearset, while the drive unit is already apart. Doing both in one strip saves a second teardown. Customers converting to a conventional driveline usually take the Defender prop shaft stumps and a pair of output shaft seals at the same time.
For other Tesla drive units we stock the Quaife QDH2T for the large drive unit and the QDH3T for the small drive unit.
In the box
- 1 x Quaife QDH7T ATB differential
The differential only. Crown wheel bolts, bearings and seals are not included. Reuse the originals or order them separately.
Downloads
The figures in the specifications table are taken from Quaife's dimensioned drawing for the QDH7T. The drawing itself is Quaife copyright. Contact us if you need a copy for a fitment check.
