Orion Current Sensor Connector
Terms and Conditions
Orders Dispatched Within 24 hours - Excluding Weekends and Bank Holidays.

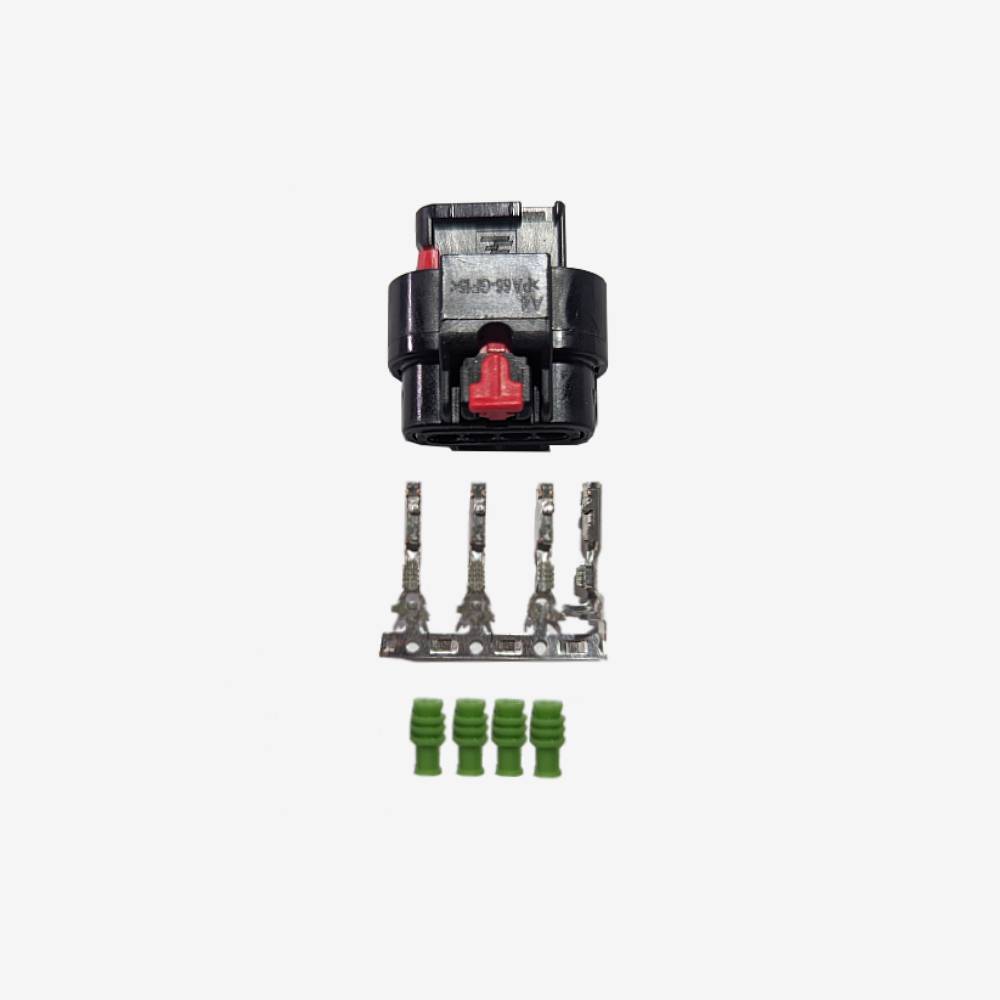

The mating connector for an Orion current sensor. It fits all four sensor sizes, 200, 500, 800 and 1000 amp.
The current sensor ships without its connector, so this is the part that gets its signal to the BMS. It is small and inexpensive and a pack cannot be commissioned without it, which is an awkward combination to discover late.
Order it with the sensor. Current is the one thing a BMS cannot derive for itself, so until the sensor is connected there is no state of charge, no charge or discharge limits, and no cumulative record. The whole BMS installation waits on this connector.
Key specifications
| Part | ORIONCSC |
|---|---|
| Type | Current sensor connector |
| Suits | Orion 200 A, 500 A, 800 A and 1000 A current sensors |
| Weight | 0.1 kg |
Features
- Correct mating half for the Orion current sensor
- One connector fits all four sensor ranges
- Inexpensive, and a pack cannot be commissioned without it
Compatibility
For all Orion current sensors: 200 A, 500 A, 800 A and 1000 A.
The sensor is sold separately and chosen by your pack's maximum current, including regenerative braking and fast charging.
Ask us whether pins are included before ordering if you are building a loom to length. That is not published here.
In the box
- 1 x current sensor connector
Downloads
No document is published for this connector. For the pinout or terminal detail, contact us.
